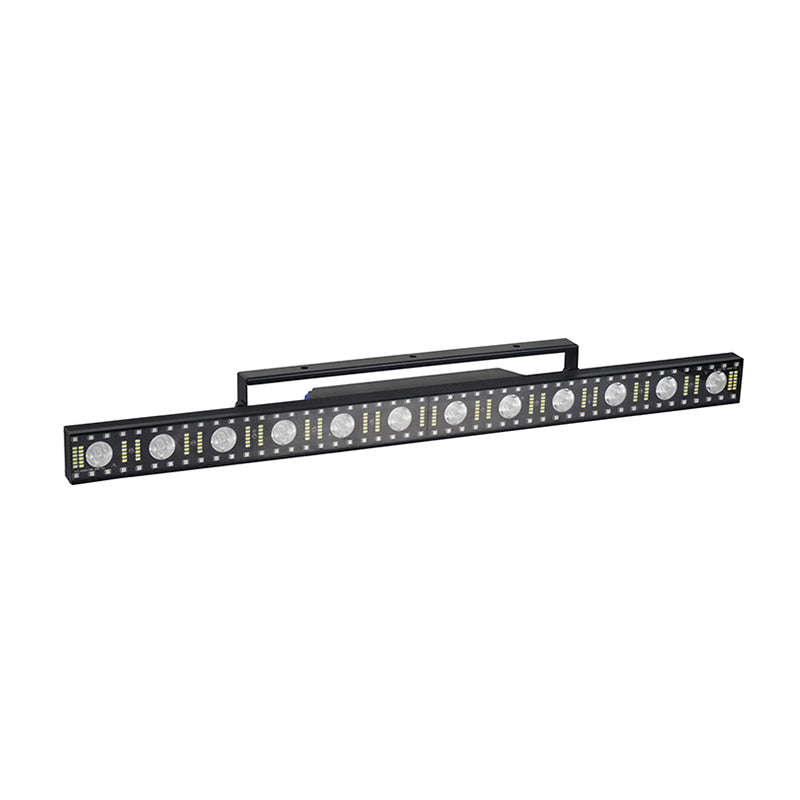

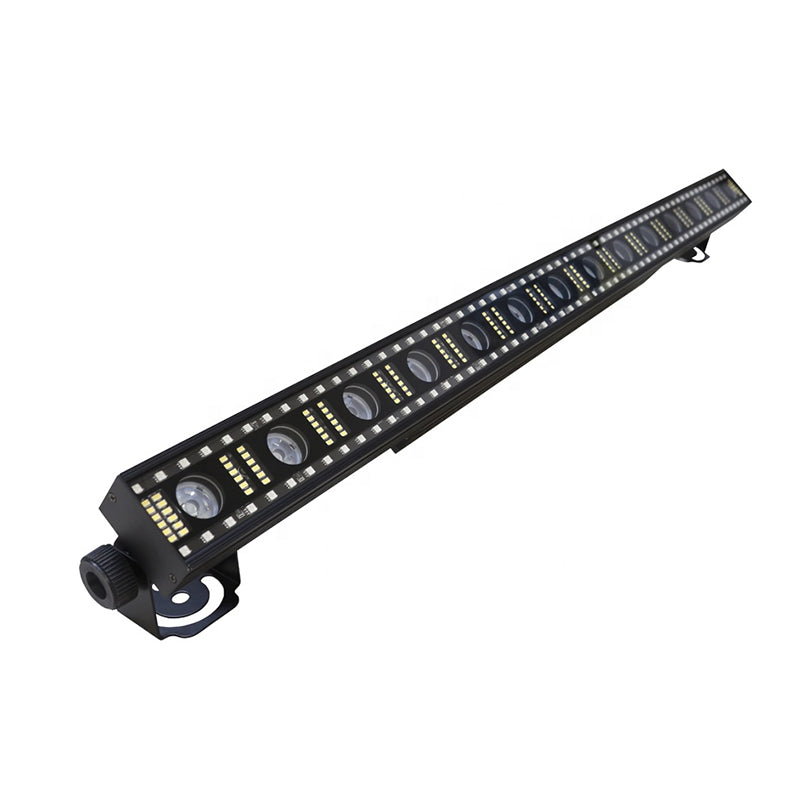

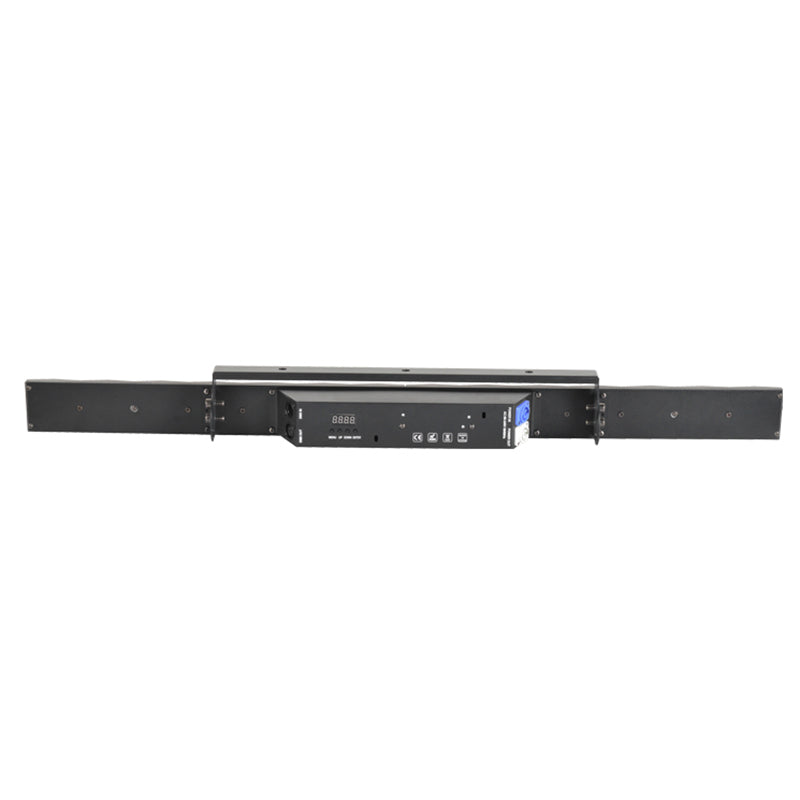

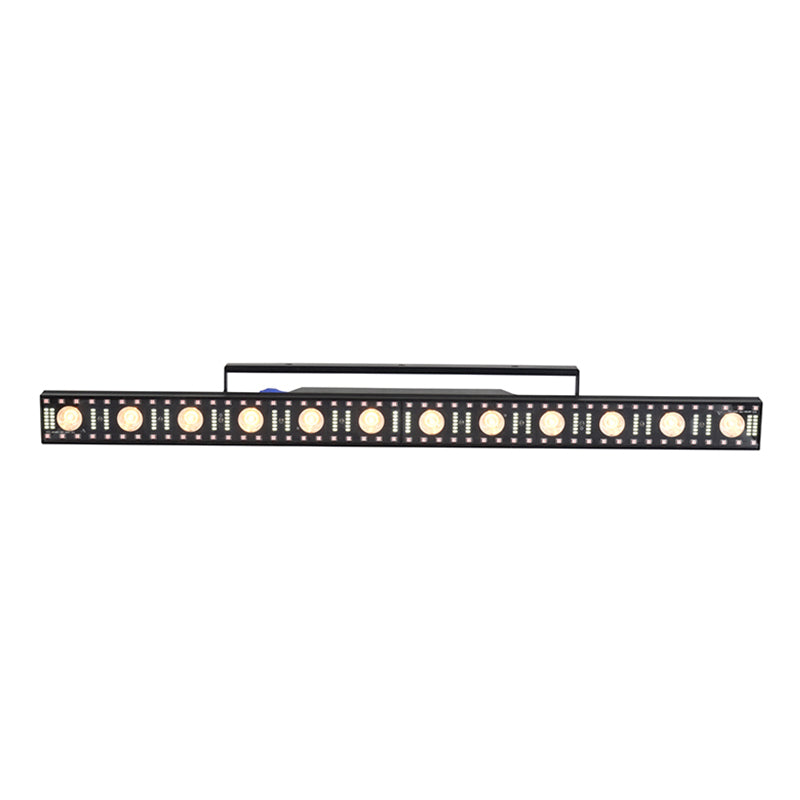

Pixel Bar 3in1

TECHNICAL PARAMETERS

Light source

Power supply: AC90V-240V

Frequency: 50/60Hz

Power: 60W

LED:12*5W WarmWhite LED

156+96 RGB LEDs

Optical

LED beam angle:4°

Controls

DMX Channel:26/33/41/64/82CH

Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM

Menu display: 1.8-inch TFT color display; Chinese and English can be switched at will, and the font can be reversed 180° display;

Data In/Out socket: 3-pin sockets

Effect

Dimming:0%-100% linear dimming

Strobe: 1-25 times/second or random

beam point control effect + white light flash + full-colour auxiliary light effect

Weight&Dimension

Product size: 102*13*7/cm

Single package size: 104*13*15/cm

Outer package size: 105*29*33/cm (four in one package)

Net weight: 2.7kg
