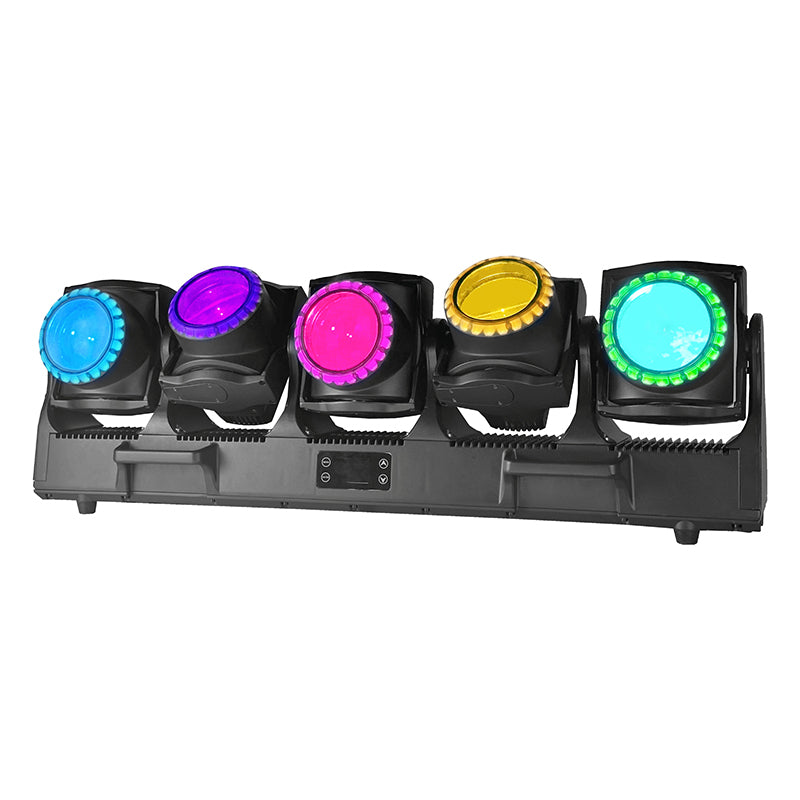

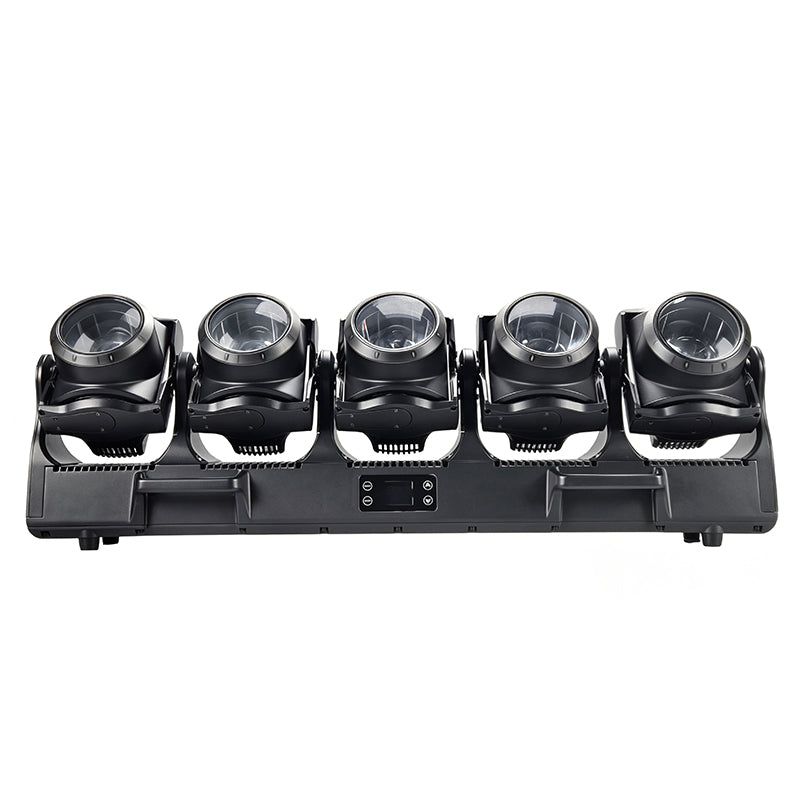

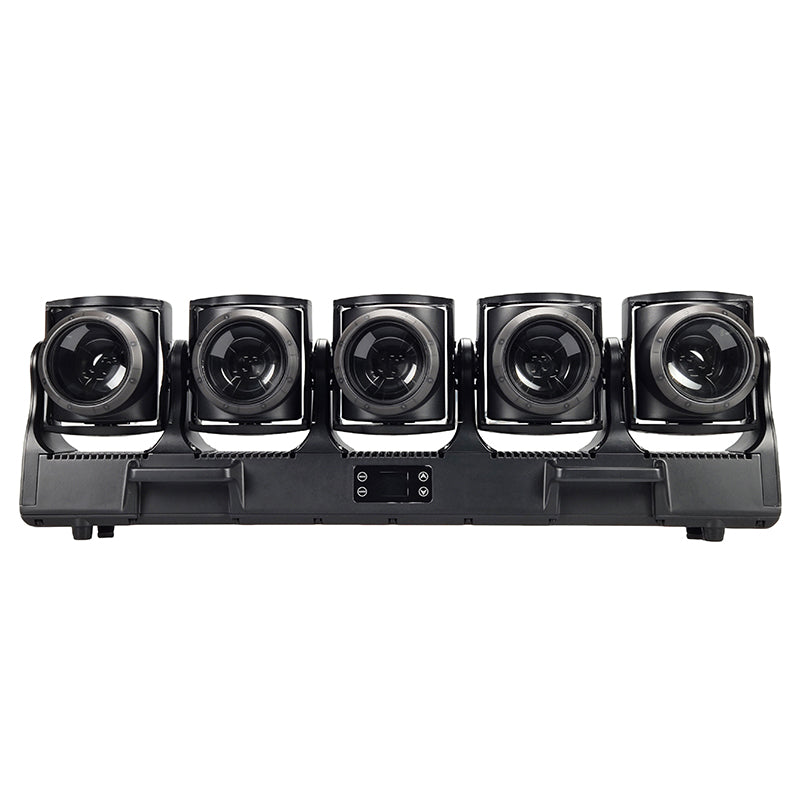

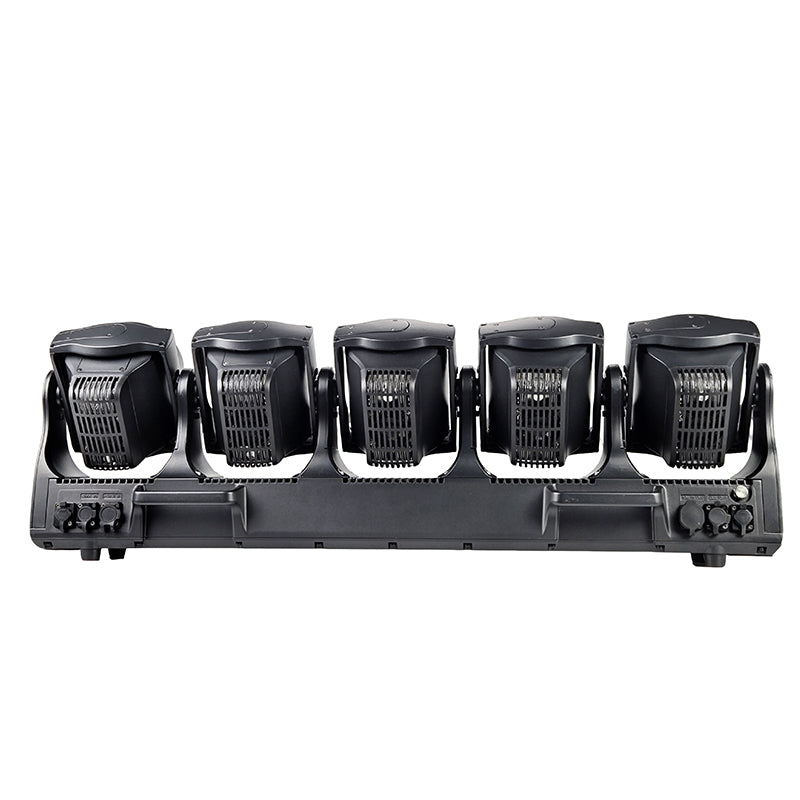

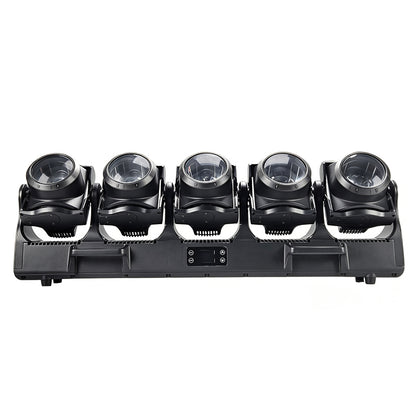

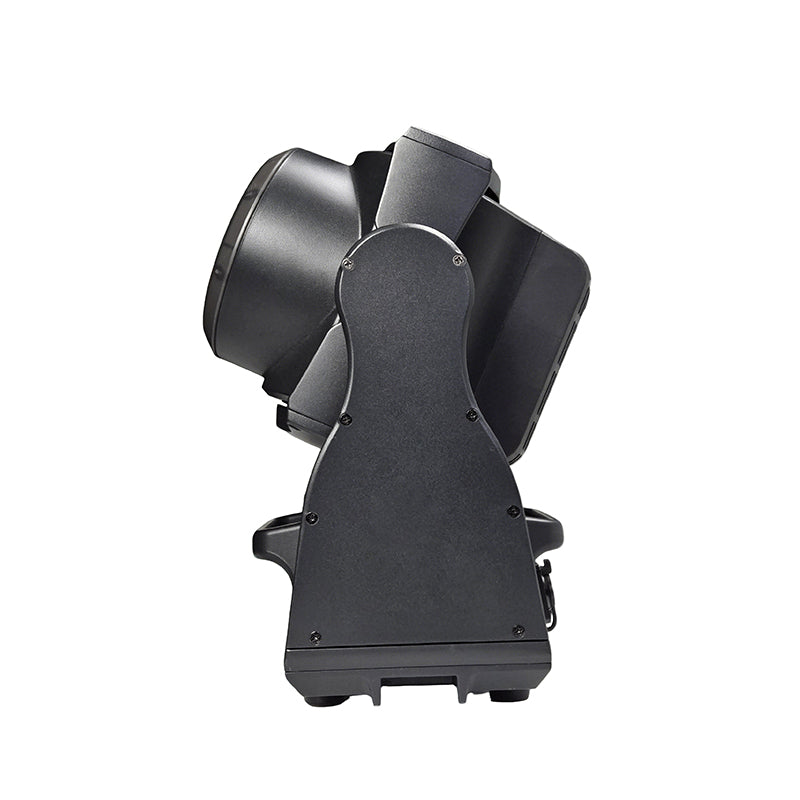

TORNADO IP

TECHNICAL PARAMETERS

Light source

Input Voltage Range: 100-240V~ 50/60Hz

Power Consumption: 935W

Main Light: 5 x 120W RGBL LEDs

Outer Circle: 120 x 0.5W RGB LEDs

Total Lumen Output of Fixture: 13,000 lumens

Life Expectancy: 20,000 hours

Optical

Beam Angles: 3°-30°

Field Angles: 4°-35°

Controls

4 button touch control panel

Display: LCD display

Protocols: DMX512, RDM,Artnet,sACN

Control Channels: 21CH/41CH /71CH/75CH/85CH/170CH

Firmware Upgrade: Upgrade via DMX link

Effect

Outstanding strobe effects with variable speed

Variable light adjustment from 0-100% dimming

Outstanding color mixing effects

Outstanding color macro effects

Linear focusing structure

Construction

Pan Movement: 59°

Tilt Movement: 221°

Automatic Pan/Tilt position correction

Resolution: 16 bit

Maximum Ambient Temperature: 40°C

Minimum Operating Temperature: -10°C

Maximum Surface Temperature: 75°C

Protection Rating: IP66

Horizontal or vertical mounting

Universal working position

2 x omega brackets

Safety cable attachment point

Weight&Dimension

Fixture Size:1019*206*356mm

Net Weight: 26.4kg

Carton packaging: 115x49x34cm, 34kg(1in)

Air box packaging: 123x49x59cm, 86kg(2in1)
