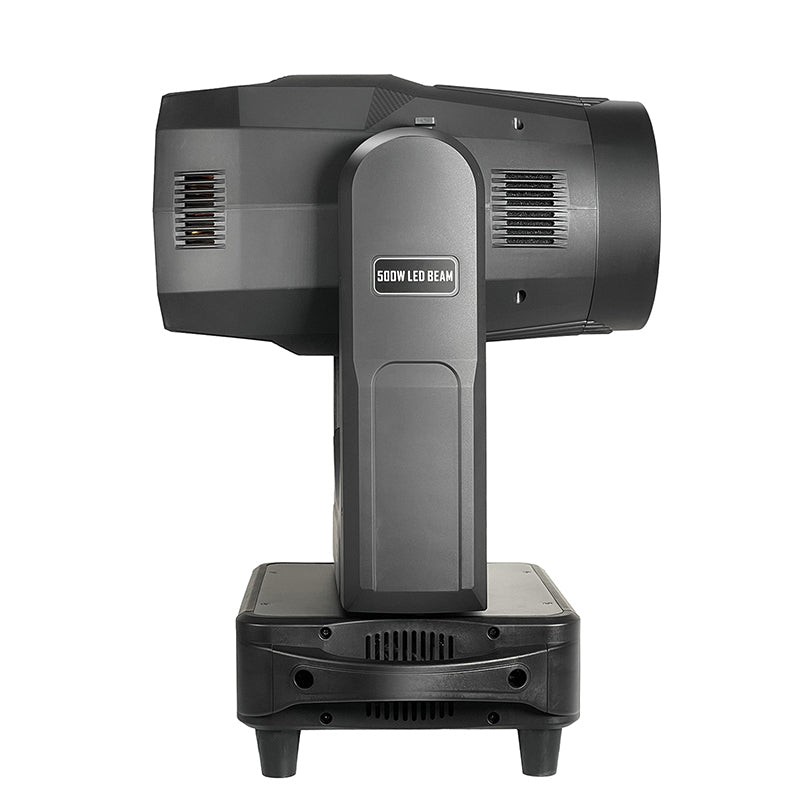

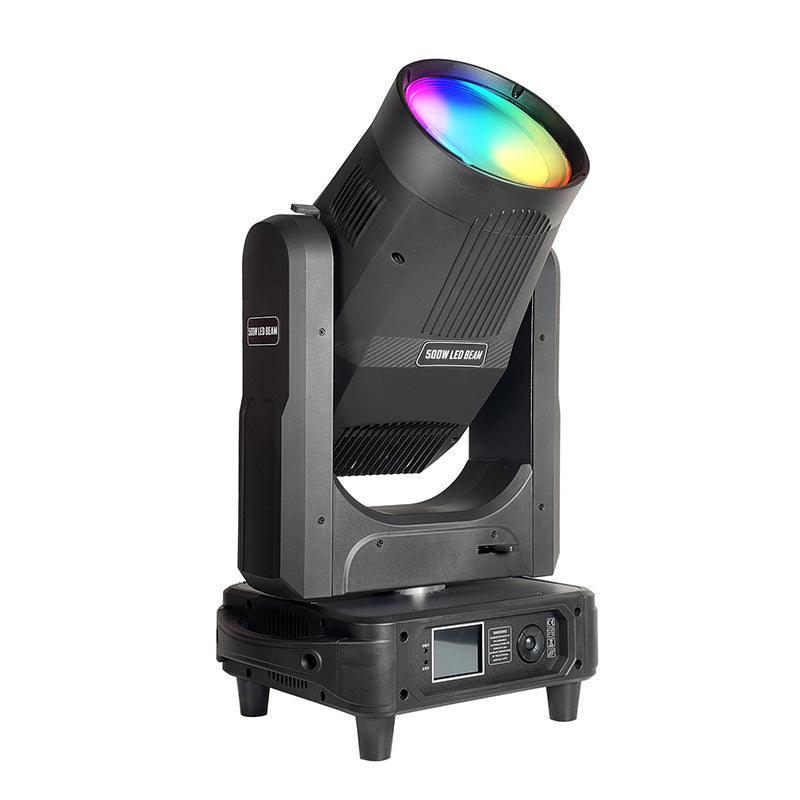

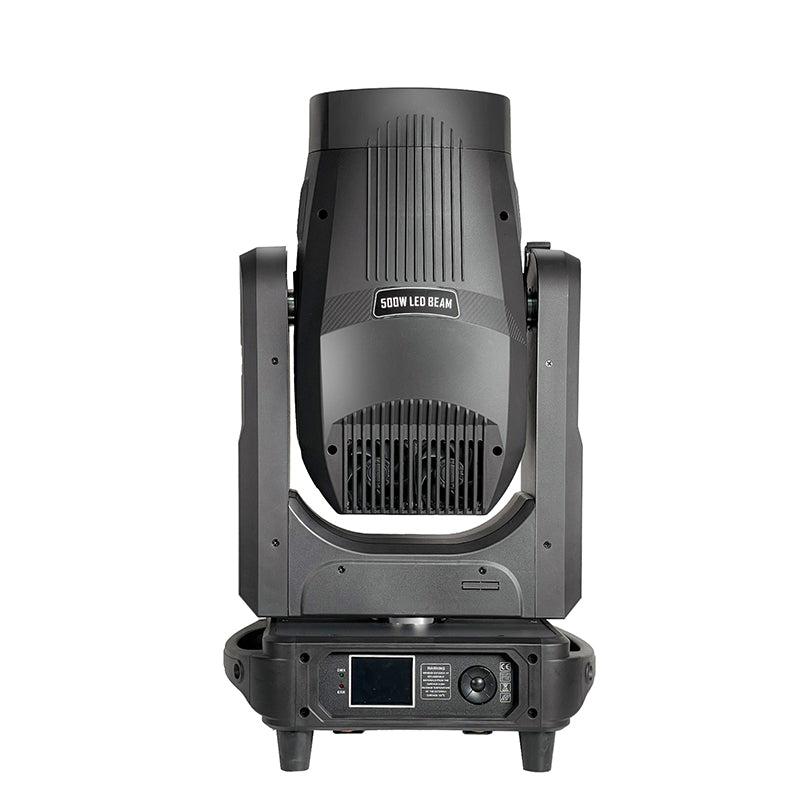

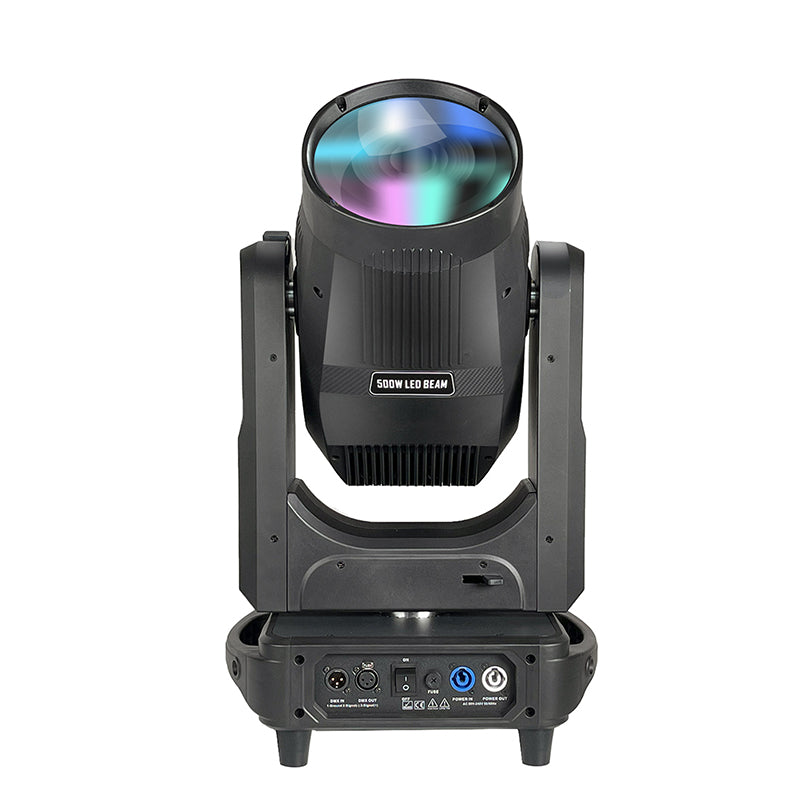

LED Super Beam 500 (Big lens 200mm)

TECHNICAL PARAMETERS

Light source

Input voltage: AC100V-240V / 50-60Hz

Light source specification: LED 500W

Optical

Optical device: combined optical lens

Dimming: 0-100 dimming

Controls

Channel mode : 16ch

Working mode: DMX512 control, auto mode, master/slave mode, with RDM function

Display: 2.8 inch touch screen, bilingual operating system, can reverse 180°display

Signal line: signal line three-core cannon head input, signal line three-core cannon base output

Power cord: aviation plug input, output

Effect

Color :12 colors + white light

Frost system: 1 independent frost effect + rainbow effect, soft and natural light spot

Fixed gobos : 15 fixed gobos + white light

Prisms: 1pc 8 prisms, 1pc 8+8+8 prism, each prism can be independently forward and reverse

Strobe: super fast strobe effect

Construction

Pan/Tilt movement: 540/280°(16bit precision scan), with automatic return function

Protection degree: IP20, overheat protection

Weight&Dimension

Product size: 38*27*64.5CM

Product net weight: 21KG

Carton packing size: 75*36*47CM

G.W.(CTN): 24.8KG

Flight case packing size: 101*48*79cm/2PCS

G.W.(Flight case): 82.5KG/2PCS
