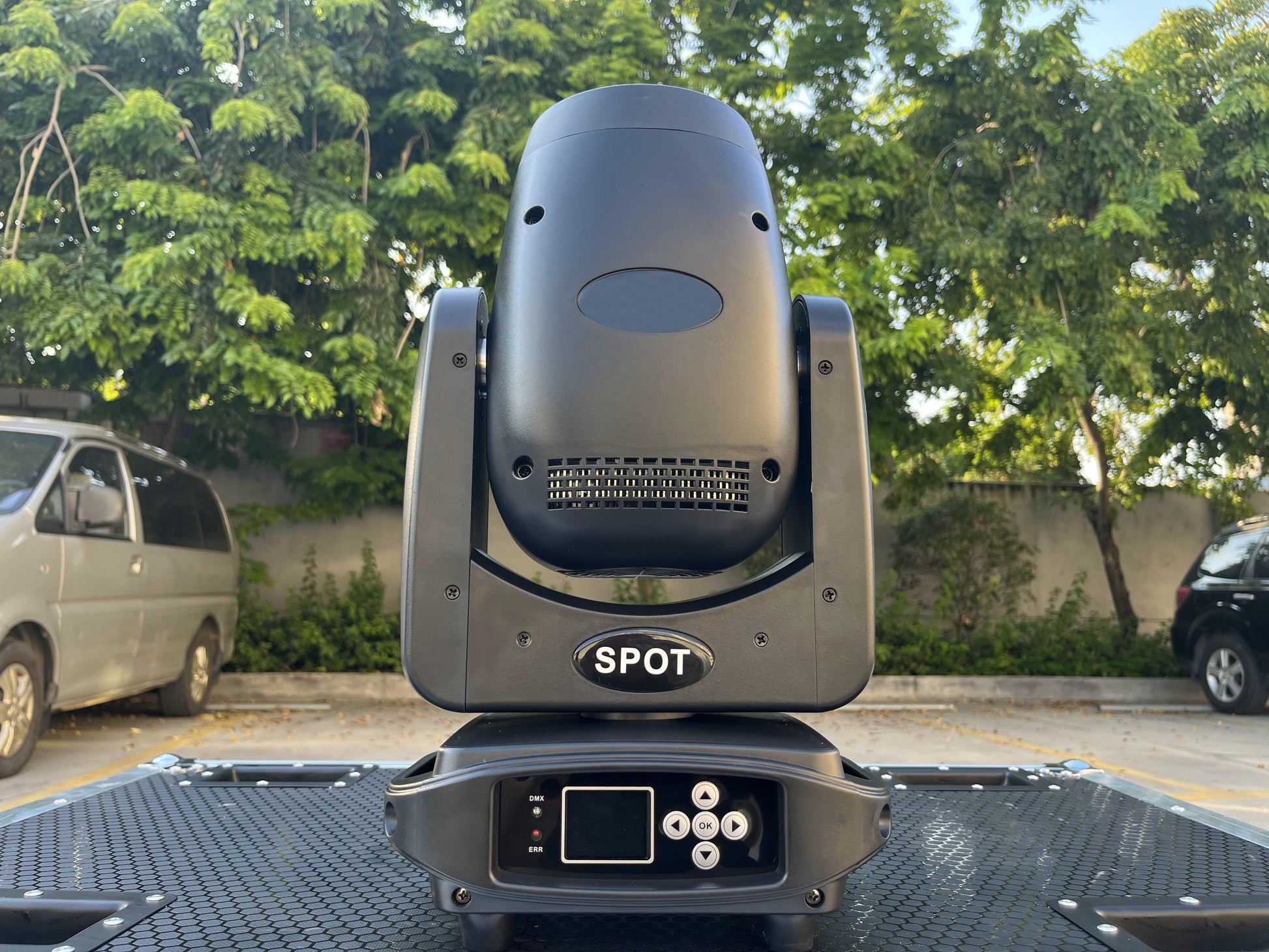

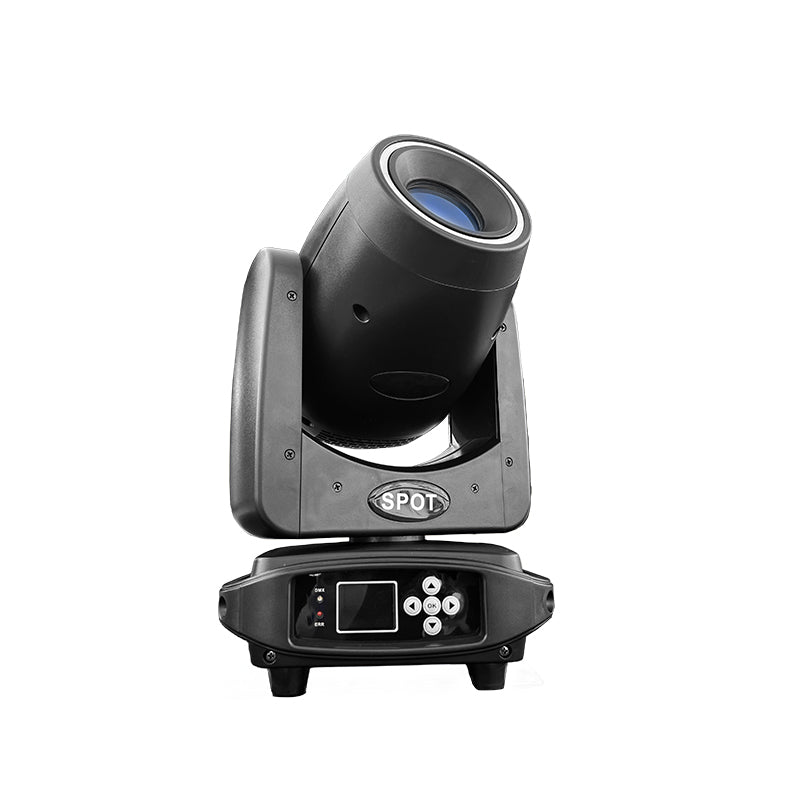

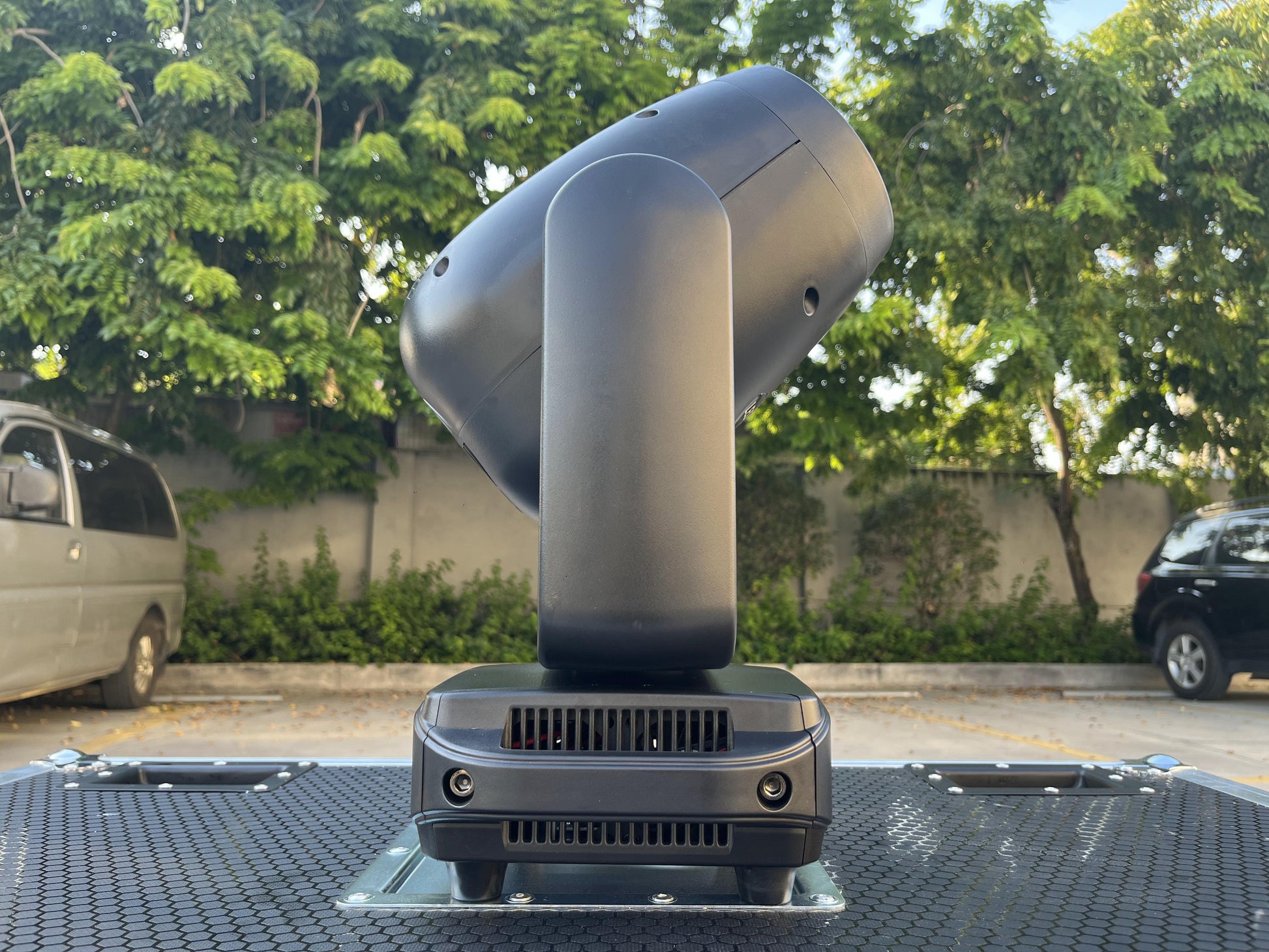

LED Spot 200

LED Spot 200

TECHNICAL PARAMETERS

Light source

Rated voltage: AC100V ~ 240V 50/60Hz

Lamp specification: 200W white LED

Rated life: 20000 hours, color temperature: 9000K

LED light circle: 29 LED high-brightness trinity of light beads, built-in a variety of running horse effect program, can be out of the console master-slave synchronous operation

Optical

Beam angle: zoom 0 ° ~ 5 ° 64mm large-diameter light, beam angle 14 degrees

Controls

Control mode: 22CH (standard) 1 kind of channel control mode, standard DMX512 protocol, RDM protocol

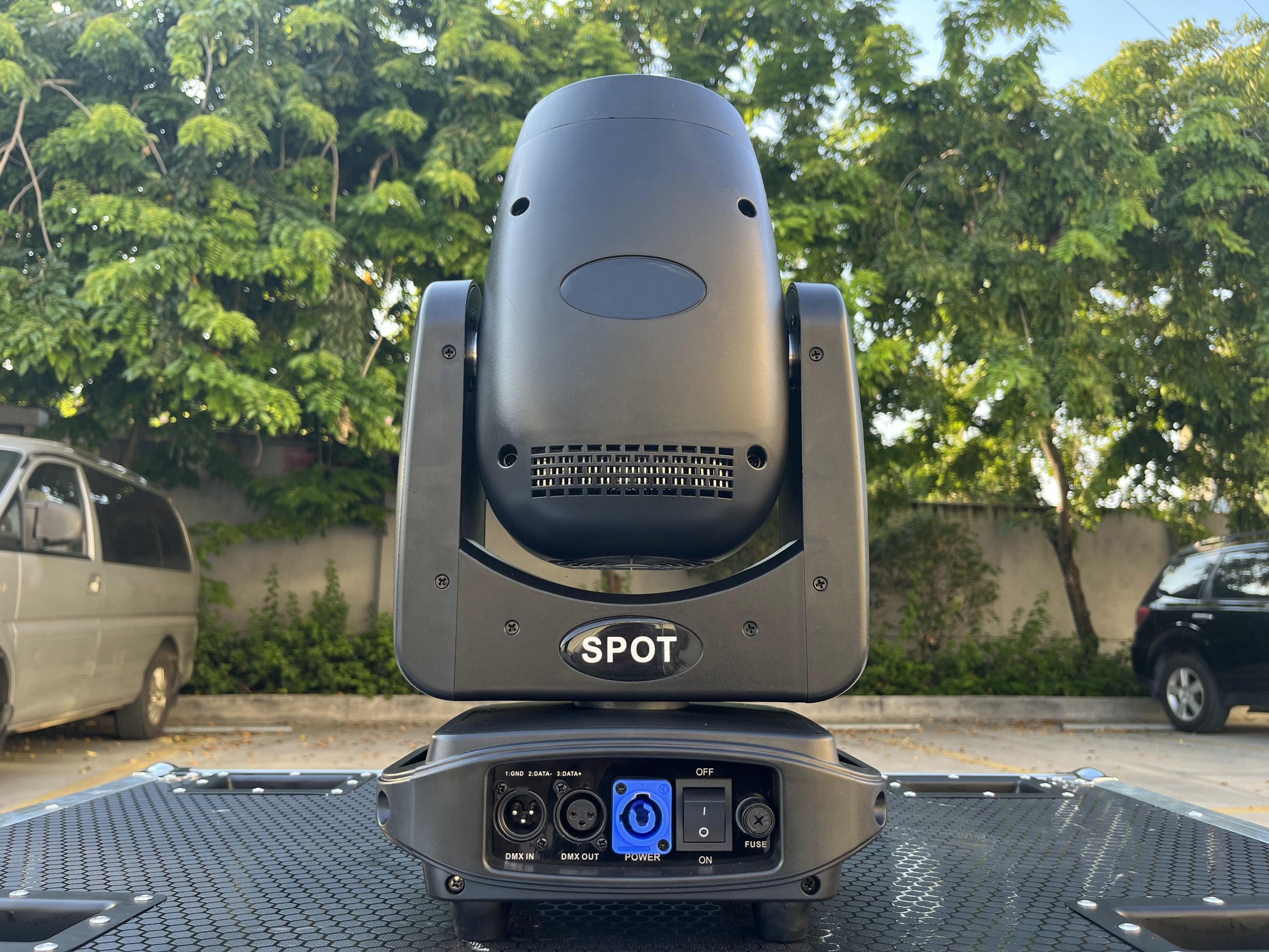

Control interface: DMX512 interface (3-core/optional 5-core), power cord hand-held socket

Hibernation function: the use of advanced technology to achieve remote hibernation function, when the lamps and lanterns disconnect the signal automatically into the hibernation state, so that the lamps and lanterns more stable and safer

Display function: 1.77 inch LCD display, bilingual menu, sensor fault display, temperature display

Effect

Rotation angle: 540 ° in the horizontal direction (16 bit precision scanning), 270 ° in the vertical direction (16 bit precision scanning) XY axis using high-speed silent motor drive, so that faster and smoother operation, when the misstep can automatically return to the horizontal, vertical speed adjustable; XY axis rotation function and take the reverse function; using photoelectric high-precision positioning

Heat dissipation system: using light aluminum radiator, fan intelligent monitoring technology

According to the temperature of the lamps and lanterns automatically adjust the fan rotation, built-in overheating protection intelligent system / intelligent temperature and noise balance module

Lamp body weight.

Protection grade: IP20, optional rain cover protection grade up to IP44

Construction

Color: with macro command function color disk: 7 colors + white full color / half color / linear color variable speed two-way rainbow effect, built-in efficient Hall device

Pattern: 1 fixed gobo: 7 patterns + 6 glass patterns + white light, can be bi-directional variable speed rotation, with variable speed dithering effect, bi-directional variable speed flow effect, built-in high-efficiency Hall device

Prism:  1  (6  +  12  double  prism),  can  be  stacked bidirectional variable  speed rotation, with  indexing  function variable speed dithering effect

Focusing: DMX linear focus, with automatic focus function

Electronic strobe, 0.3 ~ 25 times / s, can choose synchronous, asynchronous random strobe

Dimming: electronic dimming 0 ~ 100% linear adjustment, with a gamma curve dimming frequency 1.2K ~ 25K adjustable, with macro command dimming linear stable and smooth without flicker, using a stable constant current driver and power supply, suitable for video shooting

Weight&Dimension

Product Size: 25*19*43CM

Package Size:42*30.5*30CM

Net weight:6.75KG
