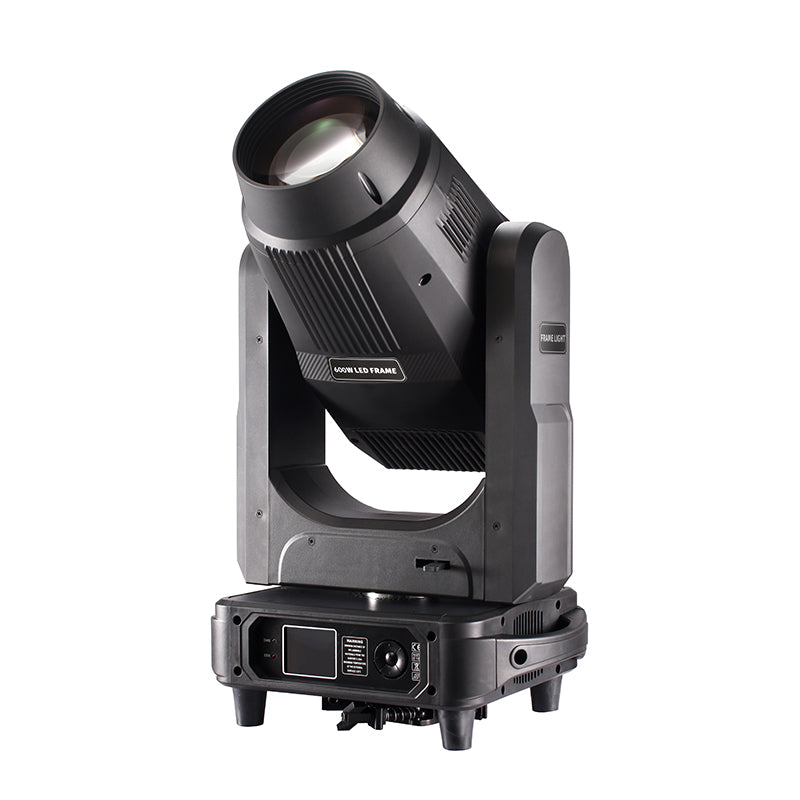

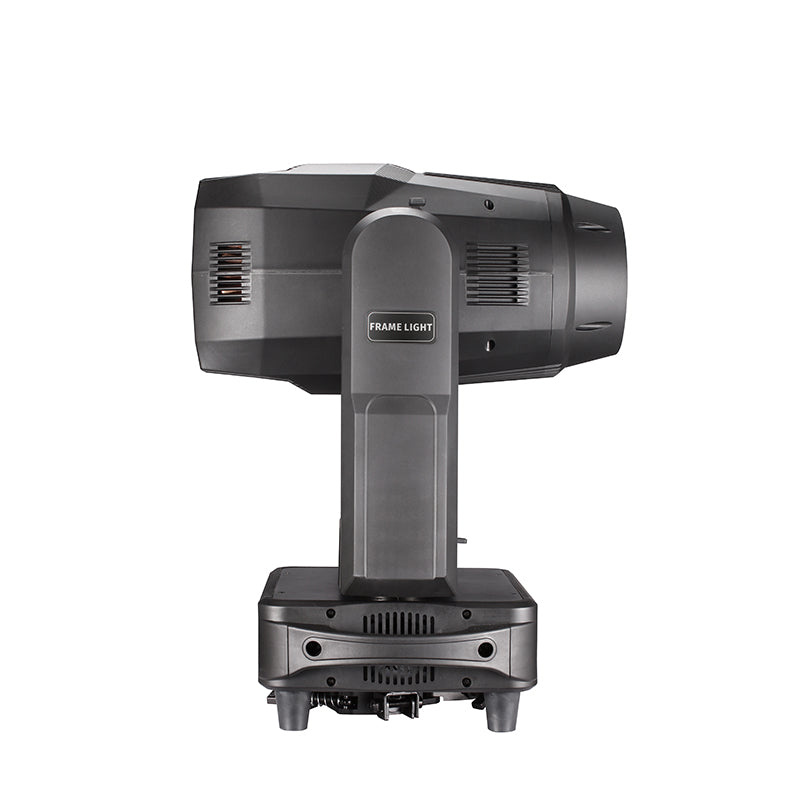

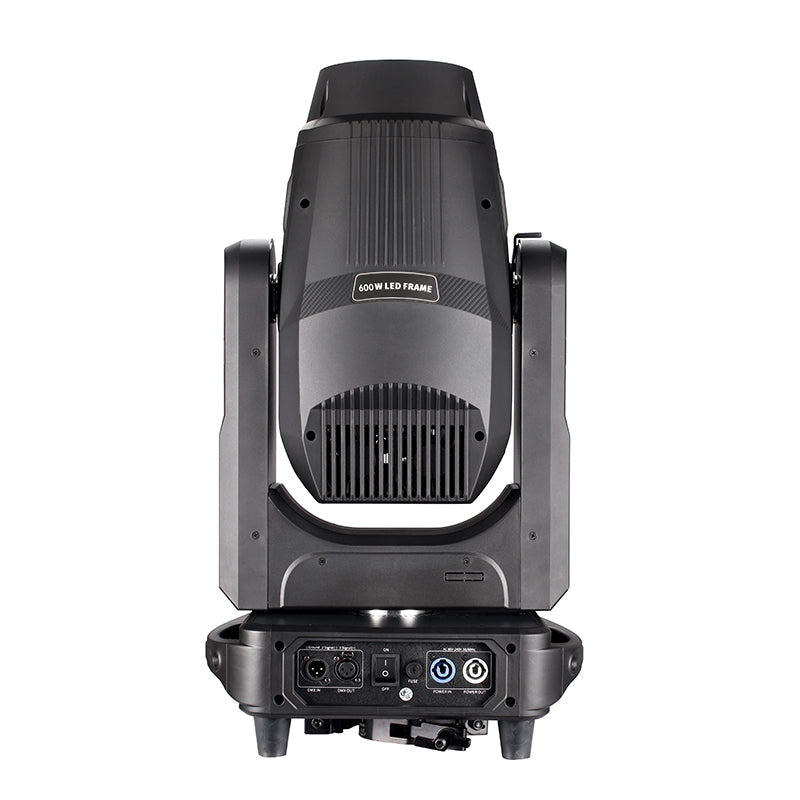

LED 600 FRAME

TECHNICAL PARAMETERS

Light source

Input voltage: AC90V-240V/50Hz-60Hz

Light source specification: LED 600W module

Light source life: 20000 hours

Color temperature: 7500K

Controls

Channel mode: 26CH

Display mode: 2.8-inch touch screen, bilingual operating system, can reverse 180°display

Control  signal:  international  standard   DMX512.  With   RDM  function,  online  software upgrade is available, dial address code

Macro function: console reset function, self-propelled mode, master-slave mode

Effect

Dimming: 0-100% linear adjustment

Strobe: 1-25Hz, fast electronic stroboscopic, pulse, synchronous and asynchronous stroboscopic effect

Frost : 1 independent frost effect, soft and natural light spot

Zoom angle: 6-50 degrees linear zoom, any range, spot uniformity is consistent

Color: 12 colors + white light + CTO

CTO：3300-5800K

Rotating gobo: 7 glass gobos, each gobo can be independently forward and backward

Framing system: 4 individual positional Shutter Blades, each can be rotated 90 degrees

Construction

Pan/Tilt: 540°/270°(16bit precision scan), electronic error correction

Weight&Dimension

Net weight: 23.5KG

Product size: 38*27*67CM

Carton packing size: 75*36*47CM/PC

G.W(Carton): 28K
