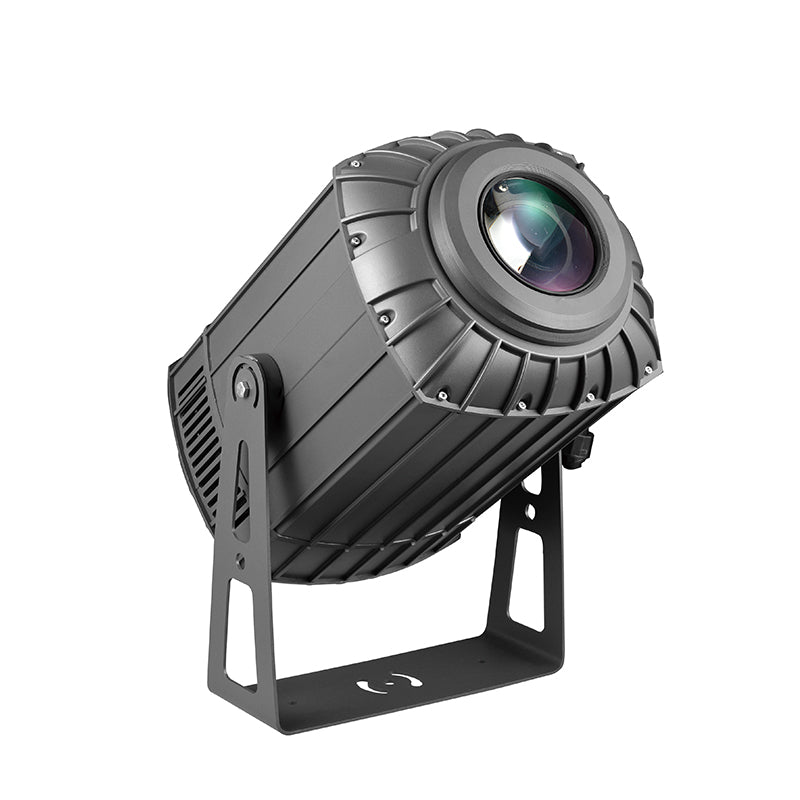

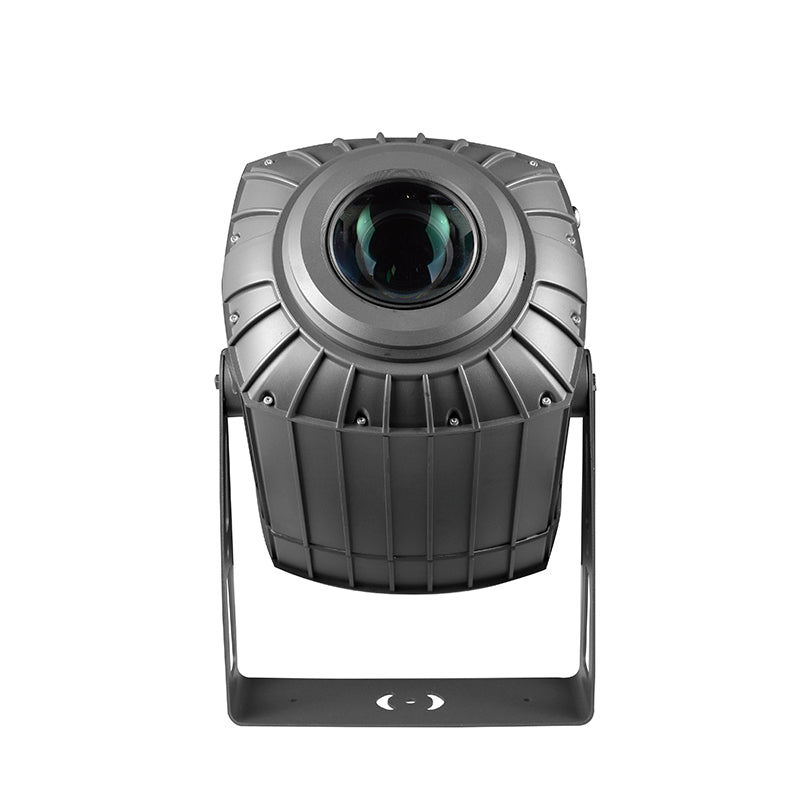

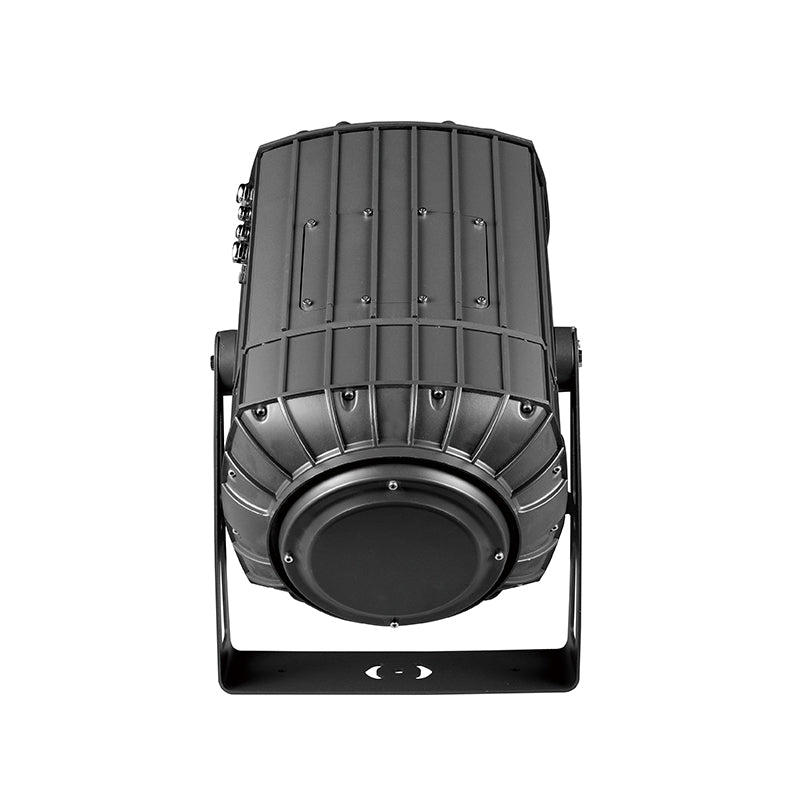

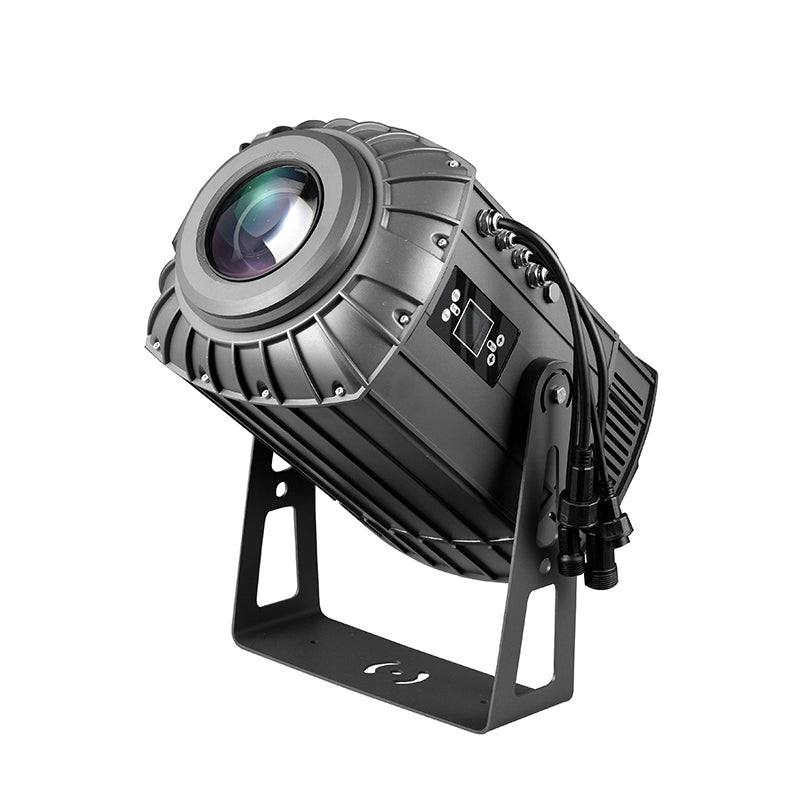

Gobo 400 Zoom IP(Gobo + Prism + Animation)

TECHNICAL PARAMETERS

Light source

4. SPECIFICATION

SOURCE

Source: 400W White LED

CT: 6500K

Life: >20,000 hrs

Power Supply: AC 100-240V, 50/60Hz

Power Consumption: 500W

Optical

Zoom: 11°-46° linear zoom

Focus: Motorized linear focus

Dimmer: 0-100% smooth dimmer

Strobe: 1-25 Hz variable speed

Controls

Control Mode: DMX, Auto 1, Auto 2, Sound, Scene

DMX Channel: 11CH

DMX Input / Output: 3-pin Male/Female signal cable

Power Input / Output: Waterproof power cable input/output

Effect

1 Color Wheel with 6 filters plus open, full and half color function, two directional rainbow effects

1 rotating Gobo Wheel with 7 interchangeable glass gobos, or 6 interchangeable glass gobos plus open. Index, shake and two directional rotation

1 water ripple floating glass wheel, dynamic rotation effect

Construction

Glass gobo outside Φ28mm, insideΦ22mm

Protection Rating: IP65

Weight&Dimension

Net Weight: 18.35kg

Gross Weight: 20.65kg

Dimension: 478×262×565mm

Package(1in1 carton): 620×425×350mm， (2in1 flightcase): 700×450×730mm

FEATURES

Independent R & D optical module with high intensity

Built-in LED display for easy configuration

25 self-configured auto programs for convenient usage

6 Dichoric Colors + 7 interchangeable glass gobos (or 6 interchangeable glass gobos and open )+1 water ripple floating glass wheel

Linear zoom from 11°-46°

5 control modes for selection freely

Vivid natural ripple floating effect
