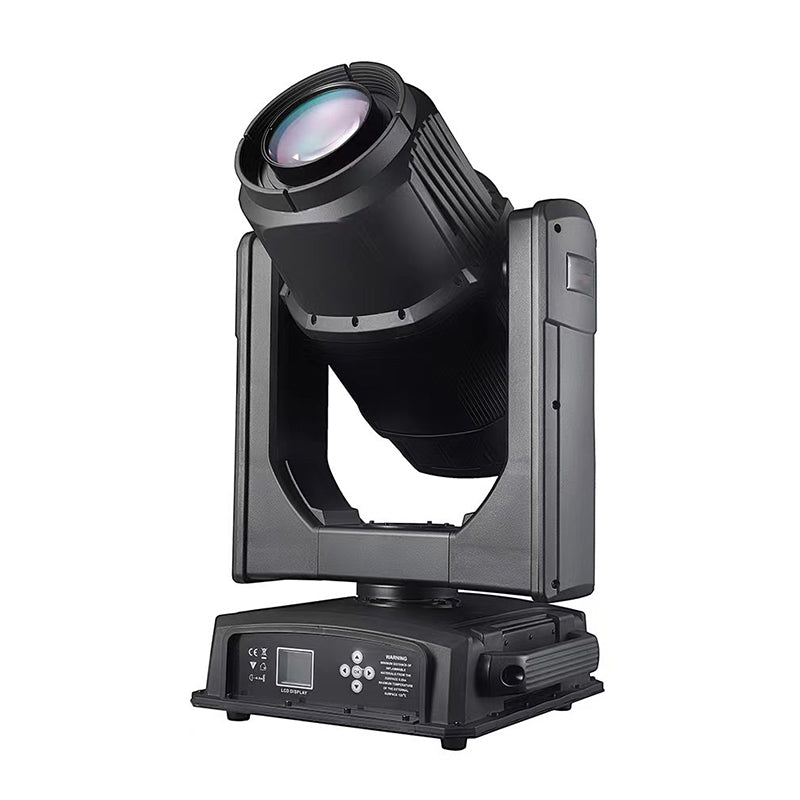

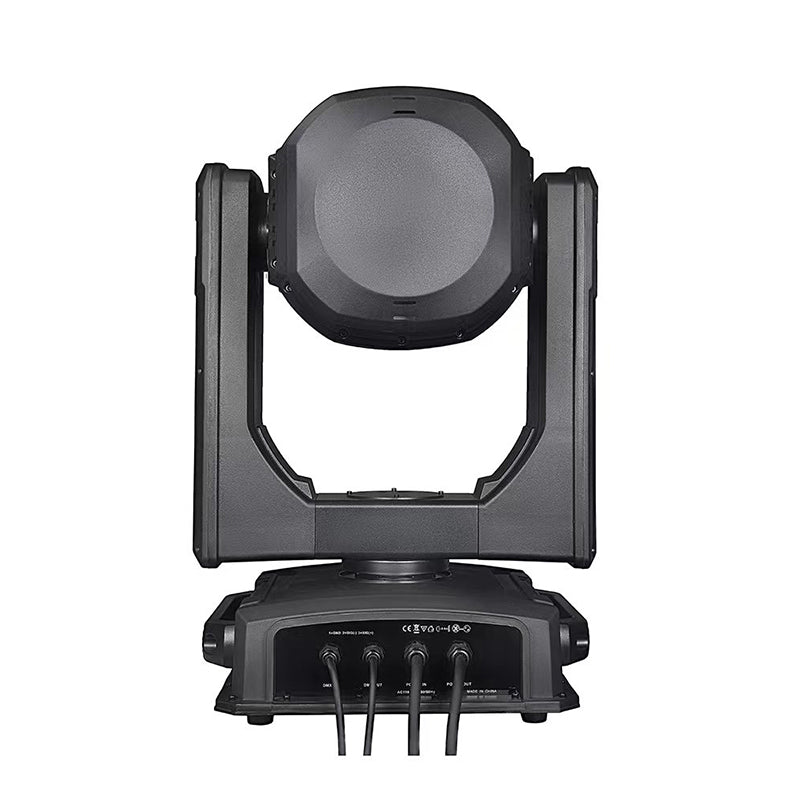

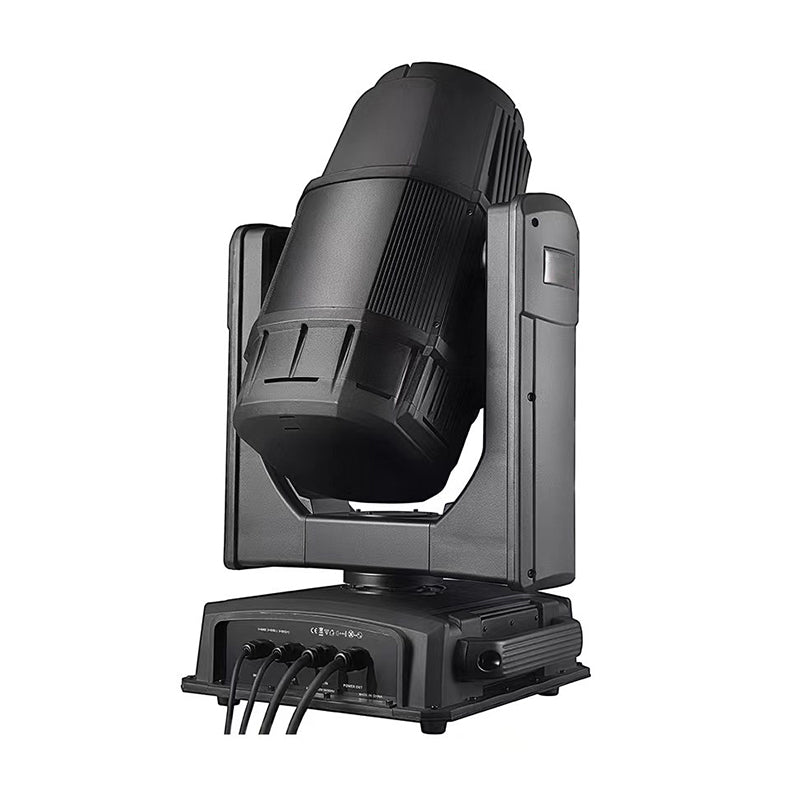

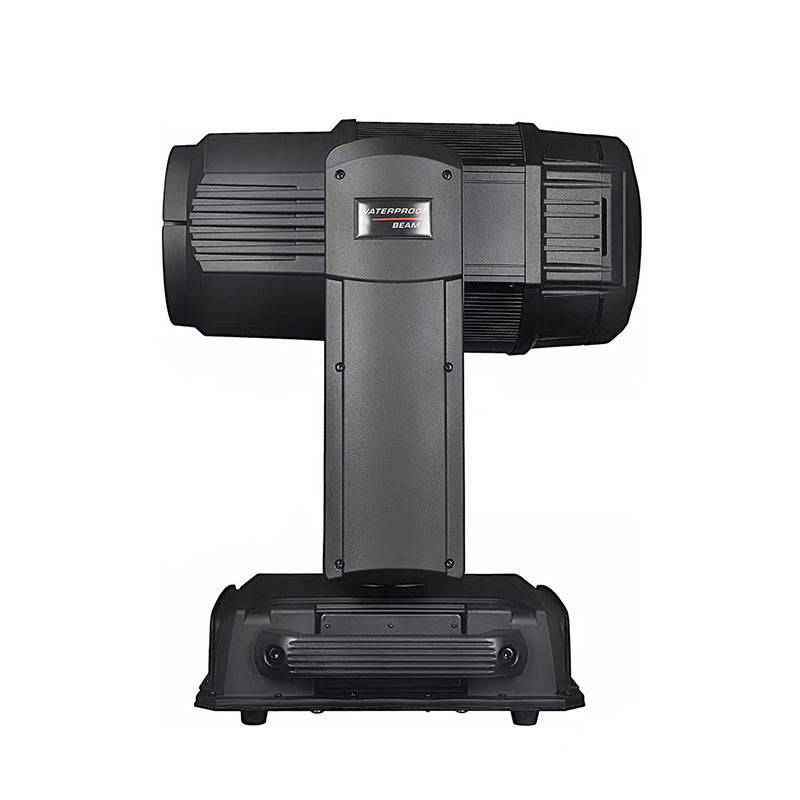

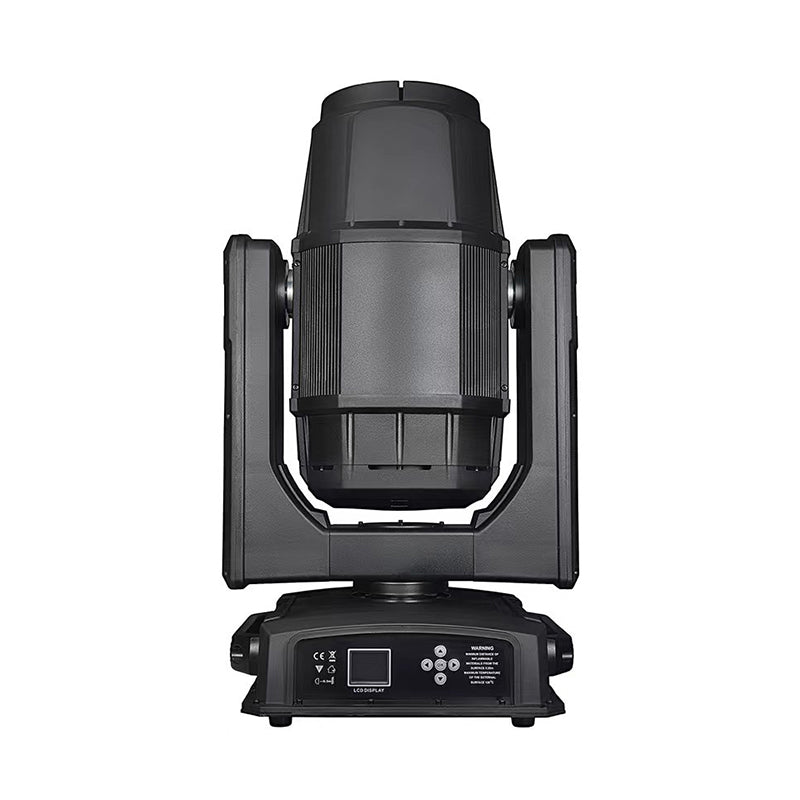

BSW 380 IP

TECHNICAL PARAMETERS

Light source

Wide voltage: AC90V-235V 50-60Hz

Wide voltage driving power supply: 600W

 Light source system: 380 (Philips)

Optical system

Strobe; Dual motor independent strobe effect, 0.5-20 times/second, adjustable speed

 Motor: The XY axis uses a three-phase motor, which ensures high speed stability and accurate positioning angle of the lamp!

Dimming curve: 0% -100% linear dimming, smooth without flicker

Beam angle: 0-45 °

Lens diameter: 152mm

Horizontal and Vertical: Using high-precision three-phase motors, accurate positioning, smooth operation, and automatic correction of positioning

Horizontal: 540 ° rotation, resolution 8/16 bit, with fine tuning

Vertical: 270 ° rotation, resolution 8/16 bit, with fine tuning.

Controls

Dual channel: 16 channel or 18 channel

Control mode 1: DMX 512

Display screen: LCD display screen, adaptable to different installation positions, rotatable180

Effect

Color temperature; 7900±500K

Color system: Color palette: 14 colors+atomization function

Pattern system: Pattern disk: 15 fixed patterns+8 rotating wave patterns+1 white light

Focusing system: electronic focusing

Atomization; Equipped with atomization function and capable of achieving soft lighting effect

Protection grade & Material

The shell is made of fully die cast aluminum.

Waterproof rating: IP65

Dimensions

Lamp body size 695 * 390 * 340cm

Net weight: 26KG
