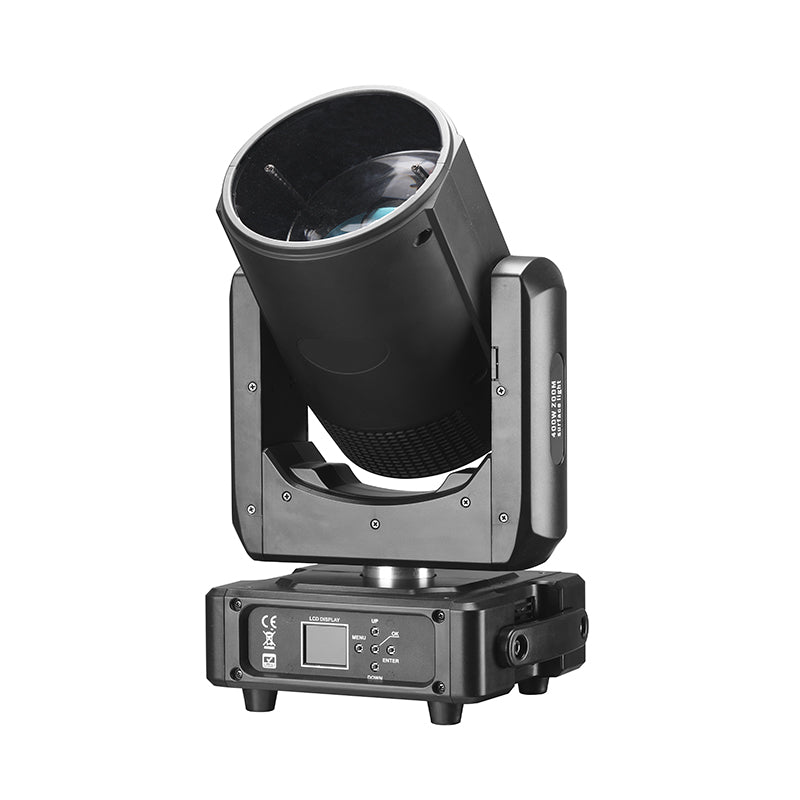

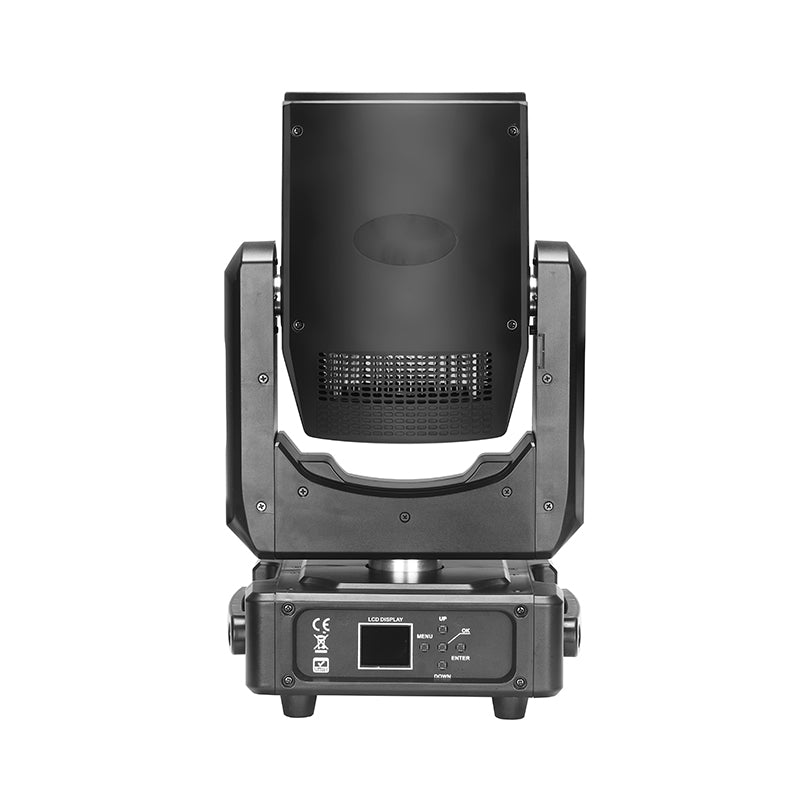

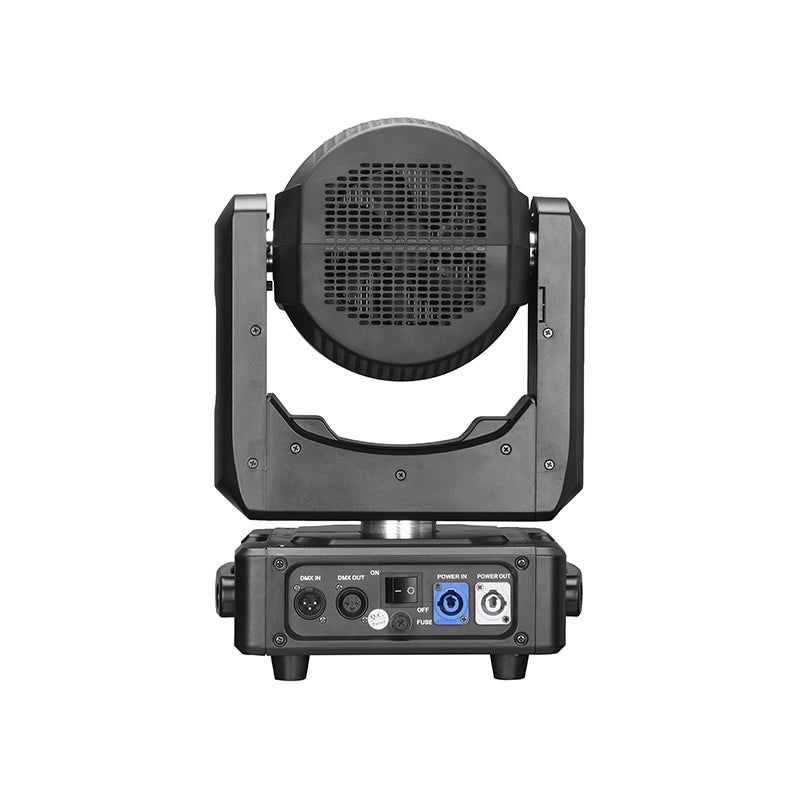

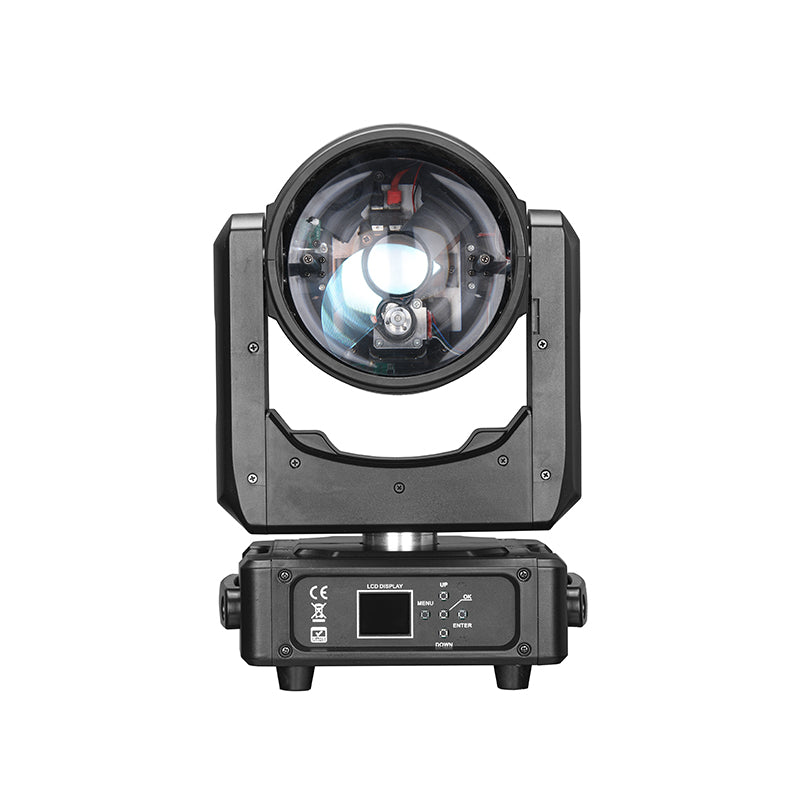

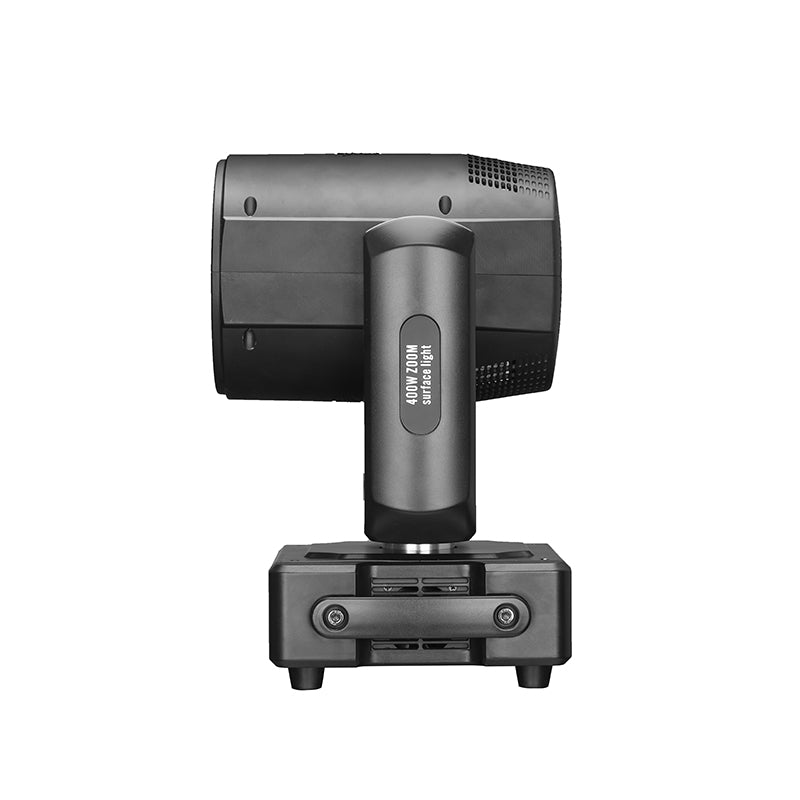

COB Zoom 400

Technical Parameters

Optical system

Light source: 1x400W LED module

Light source life:≥50000h

Color temperature: 3200K-6500K

CRI: CRI≥95 super high color rendering index

Electrical System

Input voltage: AC100-240V, 50/60Hz

Rated power: 450W

Power interface: hand in hand waterproof input/output

Signal interface: 3-pin XLR waterproof input/output

Software and control

Channel mode: 10 channels

Communication design: DMX wired transmission, master-slave, self-propelled, gradual change, RDM two-way control technology, remote function effect upgrade

Display: LCD liquid crystal display, can be reversed 180 ° display, bilingual menu in Chinese and English

Effect

Horizontal/Vertical: Horizontal scanning angle is 540°, vertical scanning angle is 270° 16 bit precision scanning

Correction: automatic return correction and 16Bit precision fine-tuning function, using digital waveform correction technology to ensure accurate positioning of the X/Y axis, so that it will not move after high-speed operation and reset

Focusing angle: 8°-50° linear focusing

Light adjustment: 0-100% linear LED dimming system

Frequency flashing: 1-25 times/sec high-speed LED closed/stroboscopic effect, adjustable speed
