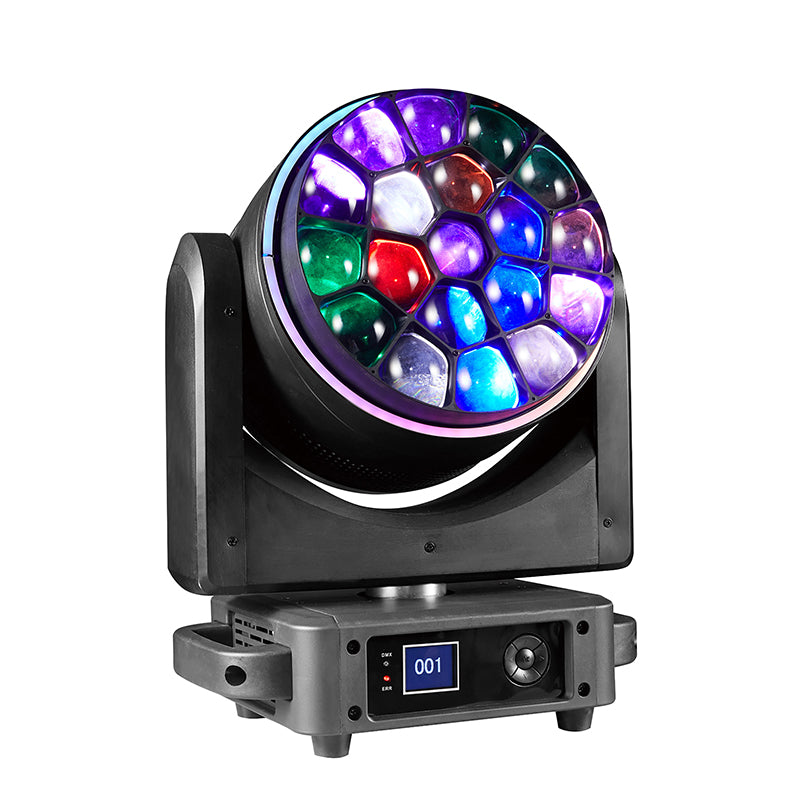

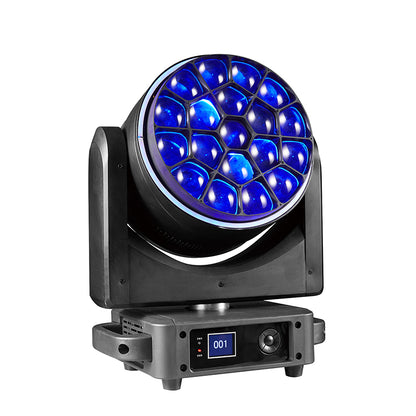

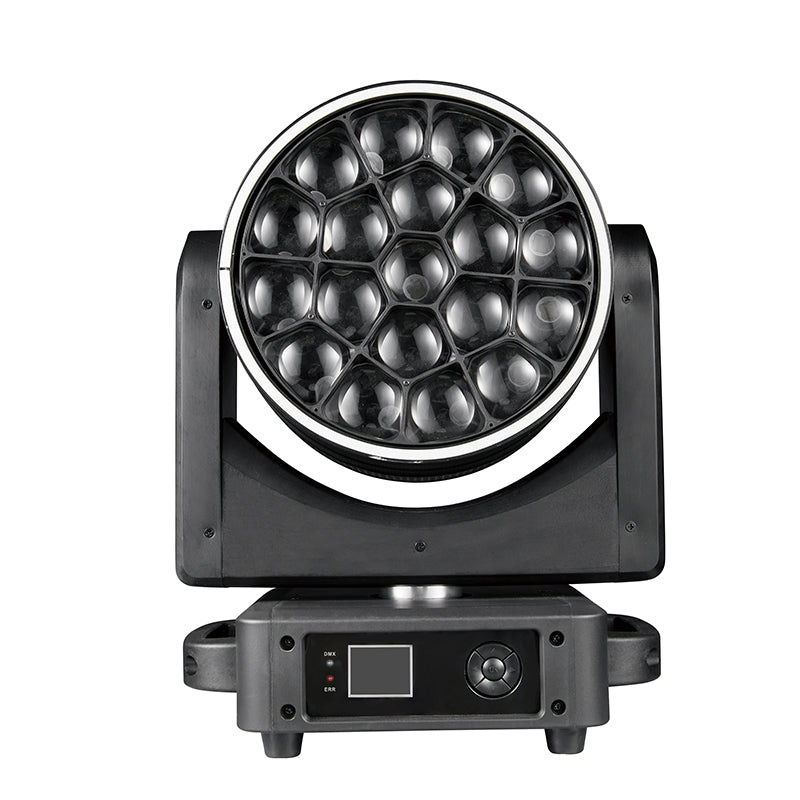

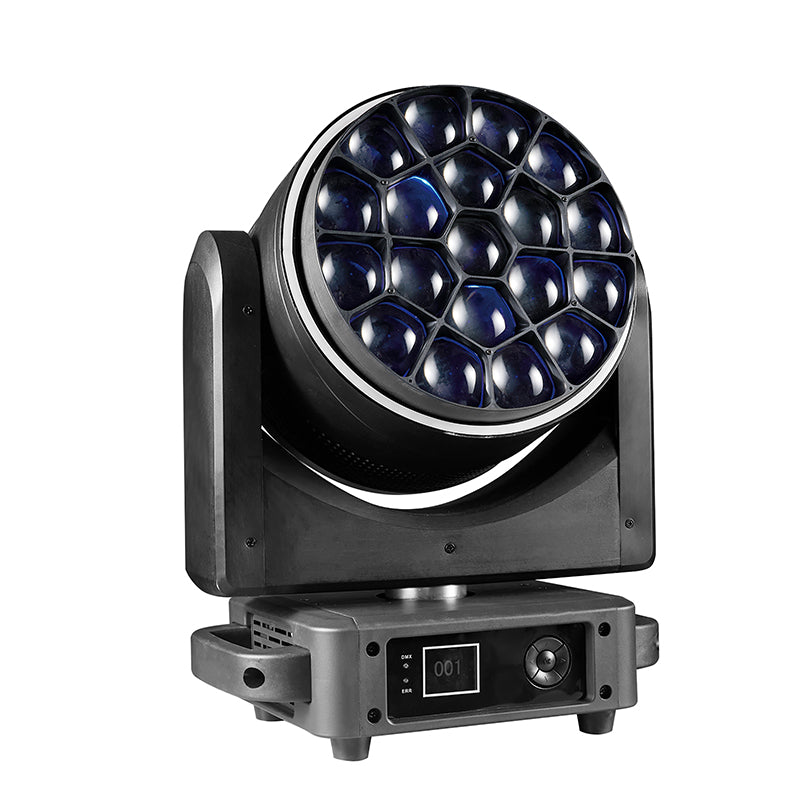

B-EYE K15R

TECHNICAL PARAMETERS

Light source

Rated voltage: AC100V~240V 50 / 60Hz

Input power: 750W

LED:19*40W 4in1 RGBW LEDs+74*0.5W LED RING

Approved life: 50,000 hours

Optical

Color: red, green, blue, and white

Focus: 4° -60 ° DMX linear focus, with autofocus function

Color temperature regulation: built-in CTO DMX linear dimming

Controls

Control mode: 32 CH, 34 CH, 46 CH, 78 CH, 92 CH, 97 CH, 99 CH; 7 channel control modes, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3 core / optional 5 core), power cord hand-in-hand socket

Display function: 1.77-inch LCD screen, Chinese and English bilingual menu, sensor fault display, temperature display

Effect

Effect mode: (vortex, kaleidoscope)

The front mirror plate is variable to infinite rotation, seamless splicing mirror plate, unspherical lens structure, single point control light belt effect: strobe, horse racing effect, with built-in program

Electronic strobe, 0.3~25 times / second, can choose synchronous, asynchronous random strobe

Dimmming: electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro instruction dimming linear stable smooth without flashing, using stable constant current drive and power supply, suitable for video shooting

Construction

Rotation Angle: XY axis is driven by high-speed silent 60 three-phase motor, with high-precision imported Hall positioning device, so that the operation positioning is more accurate, when the error can be automatically returned, horizontal and vertical speed adjustable; XY axis rotation function and reverse function,

Horizontal 540° (16 bit precision scan), vertical 270° (16 bit precision scan)

Dormant function: using advanced technology to achieve remote dormancy function, when the lamp disconnected signal automatically enter the dormant state, make the lamp more stable and safer

Heat dissipation system: the high guide light aluminum radiator is adopted, the fan intelligent monitoring technology automatically adjusts the number of fan revolutions according to the temperature of the lamp, and the built-in overheating protection intelligent system / intelligent temperature and noise balance module

Protection level: IP20, optional rain cover protection level up to IP44

Weight&Dimension

Net weight: 19 KG

Gross weight: 21 KG

Product size: 40.5 * 23.4 * 44CM

Package size: 49 * 47 * 39CM (one pack and one)

characteristic

1. Screen automatic rotation function, the system can automatically rotate the screen according to the direction of gravity, without manual rotation! You can also turn off the automatic rotation function

2. Integrated motherboard design, solve the problems of smoke oil, colored paper and so on, can separate section control control lamp beads, horse racing effect, built-in and other rich effects, the product built-in RDM remote console dial code upgrade function
