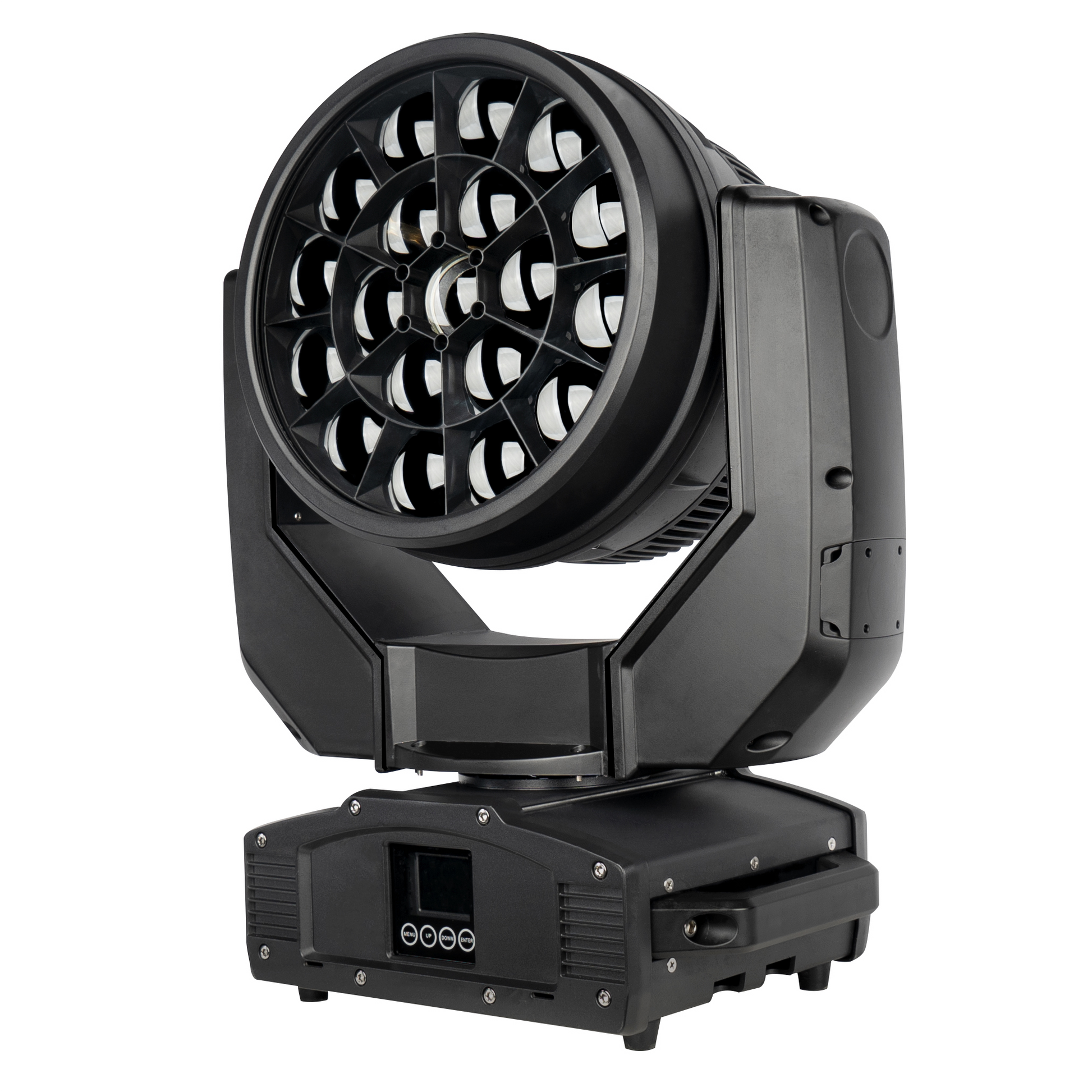

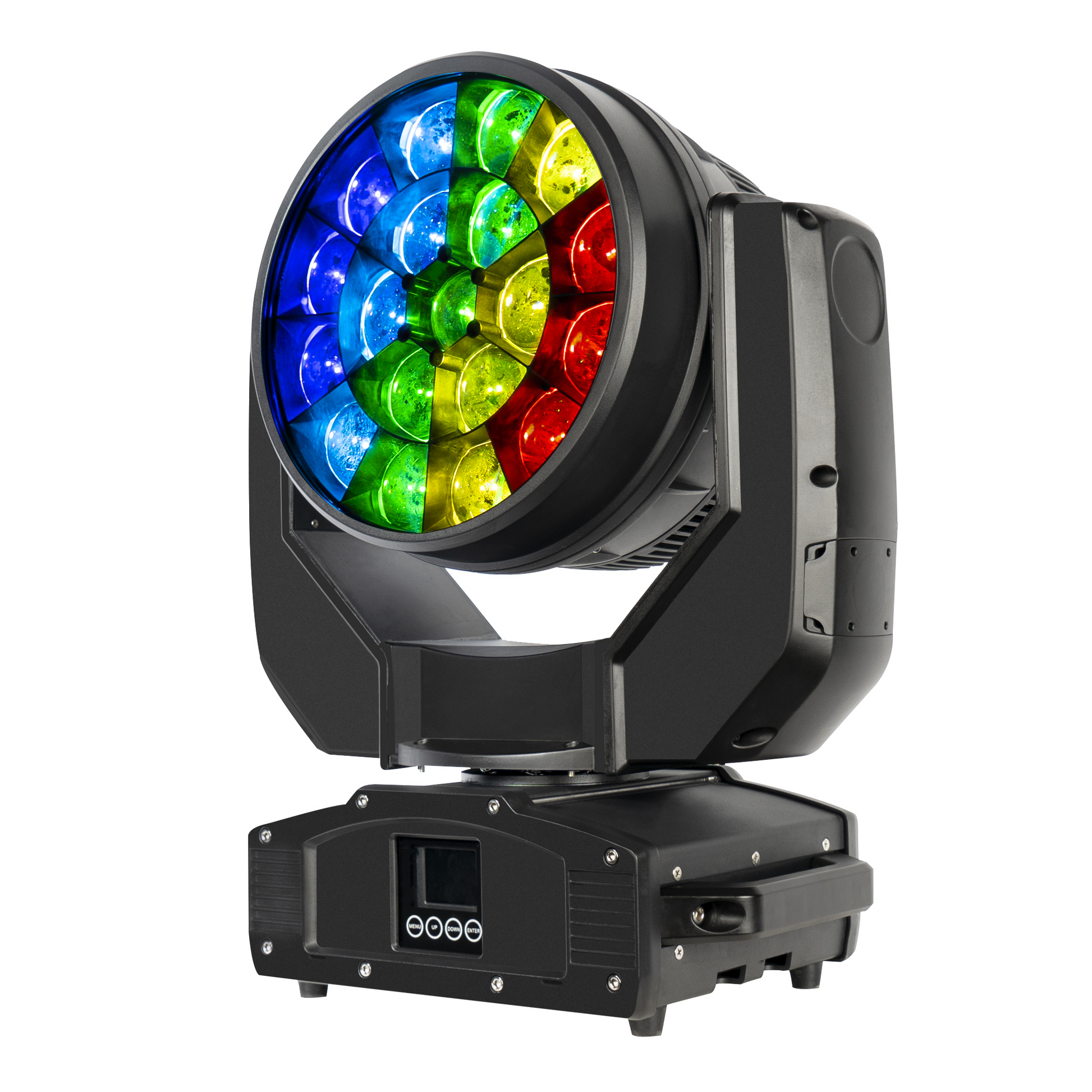

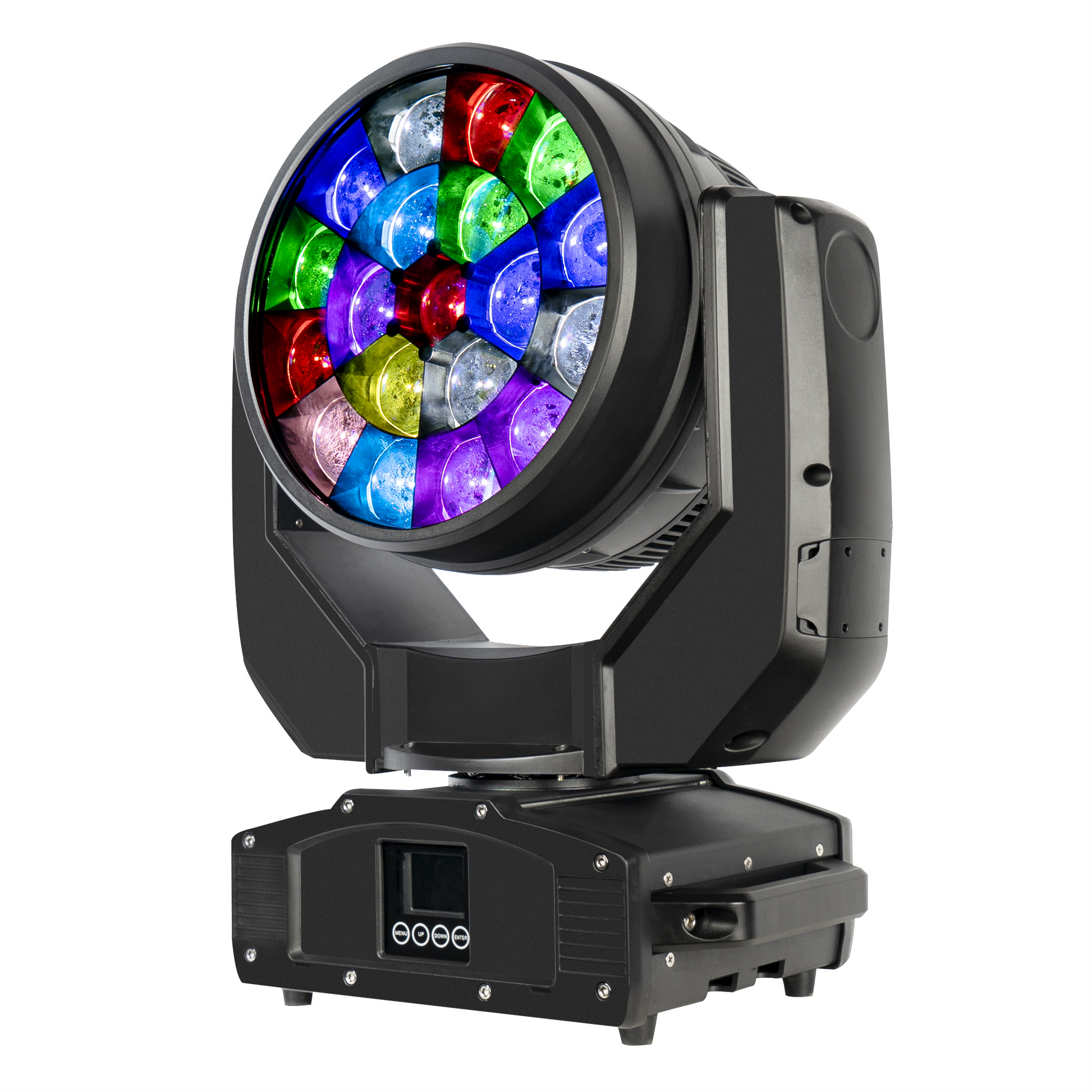

B-EYE K15 IP

B-EYE K15 IP

Technical Specifications

Light Sources

19*40W 4IN1 RGBW LED

Beam Angle:3.5°- 50°

Power Consumption: 640w

Power Voltage: AC 100-240V, 50/60Hz

Dimension: 434*532*298mm

Net Weight:22Kgs

Carton package 1in1 size: 56*42*64cm

Gross Weight: 25Kgs

Flight Case 1in2 size: 80*49.5*72cm

Gross Weight: 74Kgs

Control

DMX Channel:21/23/35/78/92/97/99 Channels

Control Modes: DMX512/mater-Slave/Auto Run/Music

Pan/Tilt

Pan: 540°/ 360°, Tilt: 270°

Pan/Tilt Resolution: 8/16 bit

Construction

Display:180° reversible 1.8 inch TFT colorful display, Touch Button

Data In/Out socket: IP65 3-pin / 5-pin XLR sockets

Power Socket: IP65 Power Con in/out

Protection Rating: IP65

Features

LED single control, can display arrows, numbers, letters and patterns

High-efficiency optical system, wonderful flower effect plus zoom

Fan work speed auto adjustable with head temperature

Led temperature protection & Fan run speed automatic based on the head

temperature.
