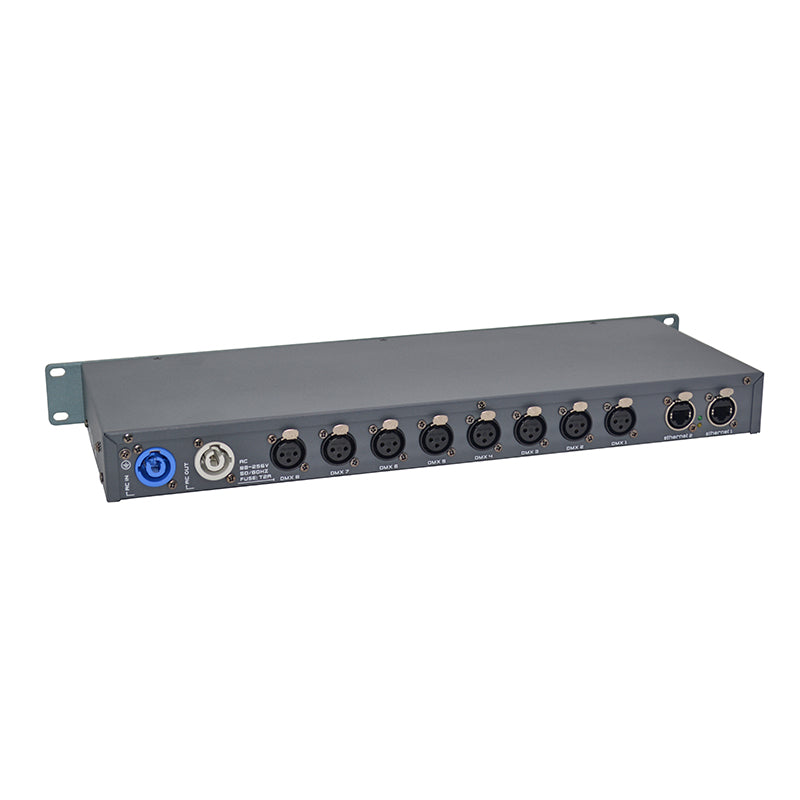

Artnet Node 8
Artnet Node 8
Technical Feature
Supports 8 ArtNet universes, total 4096 channels.
Serial connection possible, which can control
32768 universes, a total of 16777216 channels
Ethernet I/O based on high speed switch, without
linking delay.
Compatible with the following protocols: ArtNet,
DMX 512 and RDM.
It is used for extending the DMX output port of
Tiger touch and MA Console.
The 8 DMX ports can all be configured as inputs
or outputs.
DMX ports: Neutrik 3pins XLR
(Option: 5 pinsXLR ).
100% electrical isolation between all in/outputs:
problems on 1 port will not influence the other
ports.
TFT display shows parameters.
LED indicators for each input and output.
Wide input stable electric power supply, suitable
for voltage input of different countries.
Input Voltage: AC88～256V 50/60Hz
Dimension: 19" 1U, 482mm ×168mm ×44mm
Net Weight: 1.7Kg
