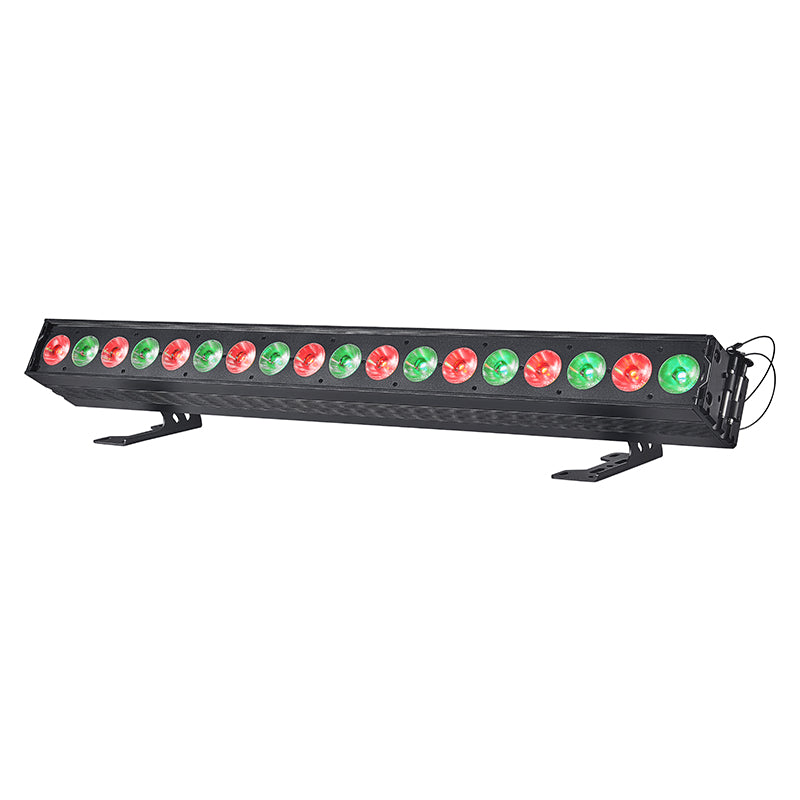

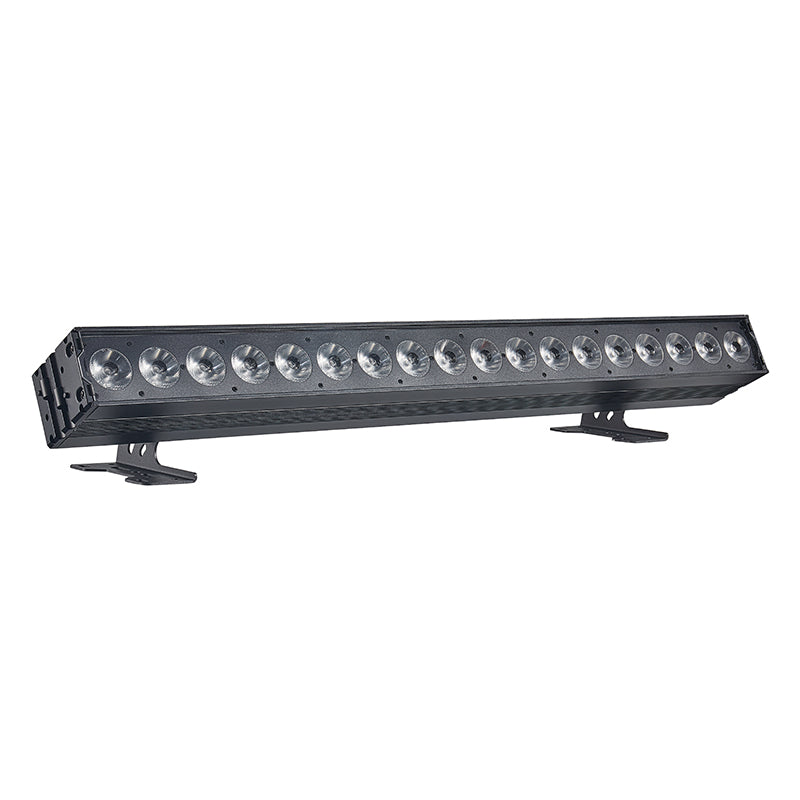

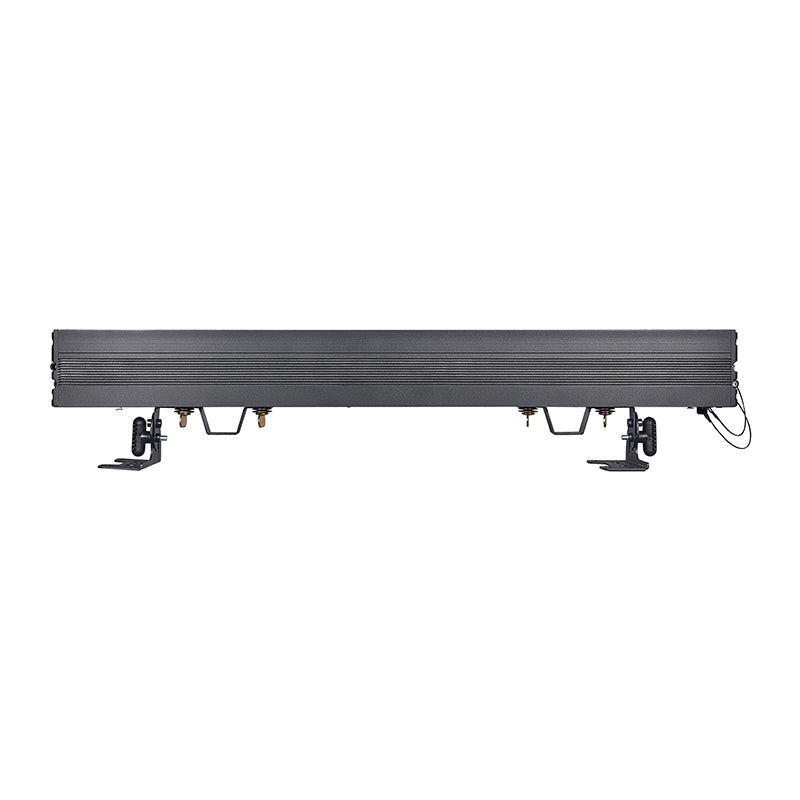

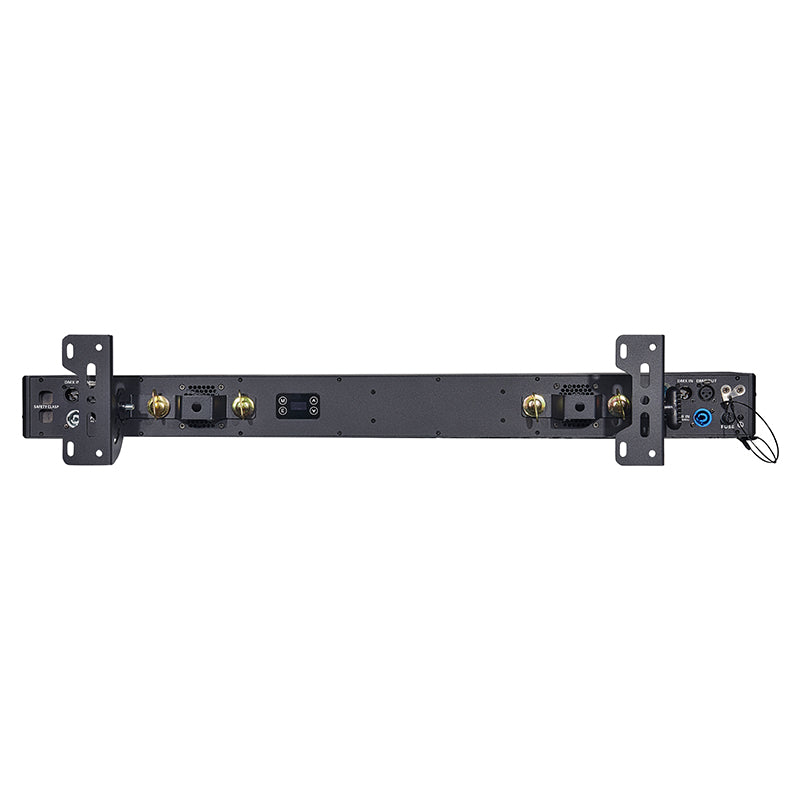

1830 Wall washer

Technical Specifications

Voltage:AC100~240V,50/60HZ

Light source:18PCS 30W RGBWAUV 6in1 leds

DMX Channel:11/29/108/119CH

Dimmer:High resolution dimmer 0~100%

Lenses: 45mm 10/12/25/40degree optional

Operate:Setup and addressing via OLED display and 4 buttons

Pixel Pitch: 52MM

Filter: Quick release diffusion filter

RDM: support

Working temperature: -30°C~50°C

Control mode:DMX512,Auto Run, Master/Slave, Sound active

RGBWAUV 16bit color mixing

Pattern effects with variable speed and fade time

Strobe effect: Variable speed (1-20HZ)

Horizontal hanging with Omega brackets

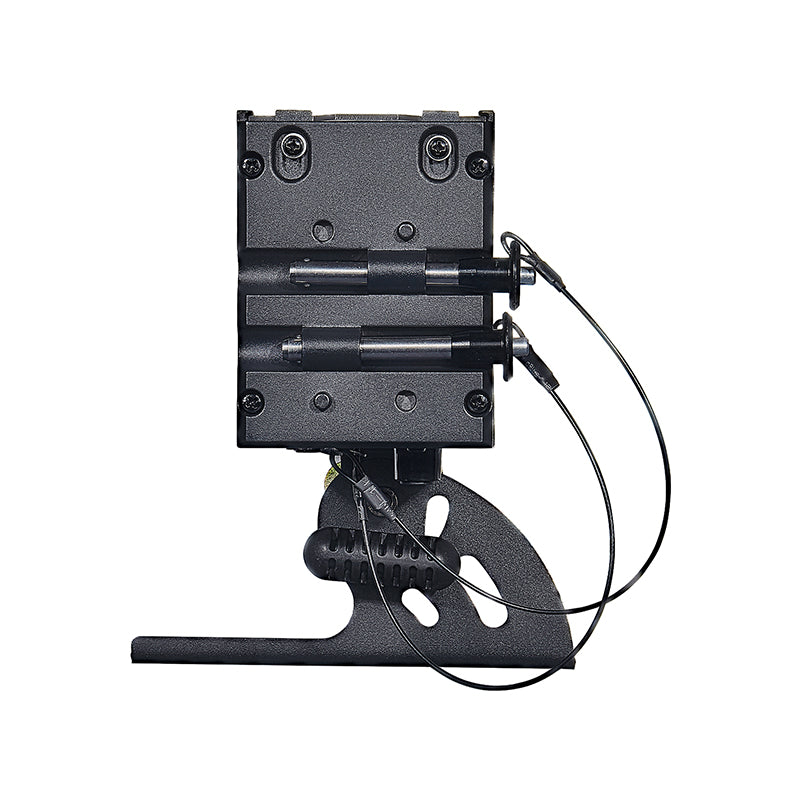

Horizontal installation on the floor with tilt bracket fast locks

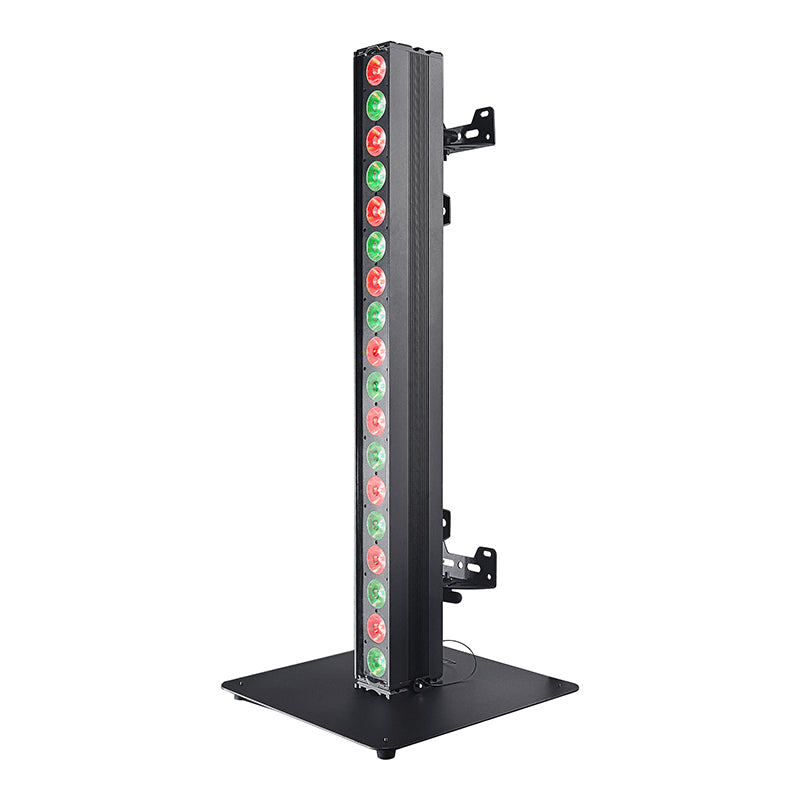

Vertical installation on the floor with a base plate

Hanging vertically “dropped” with a vertical adapter

Split Joint: structural connection with 2 pieces quick release pins

House : Aluminum,Black

Data : XLR IN/OUT Power IN / OUT

IP Grade:IP20

Weight:9.0 kg
