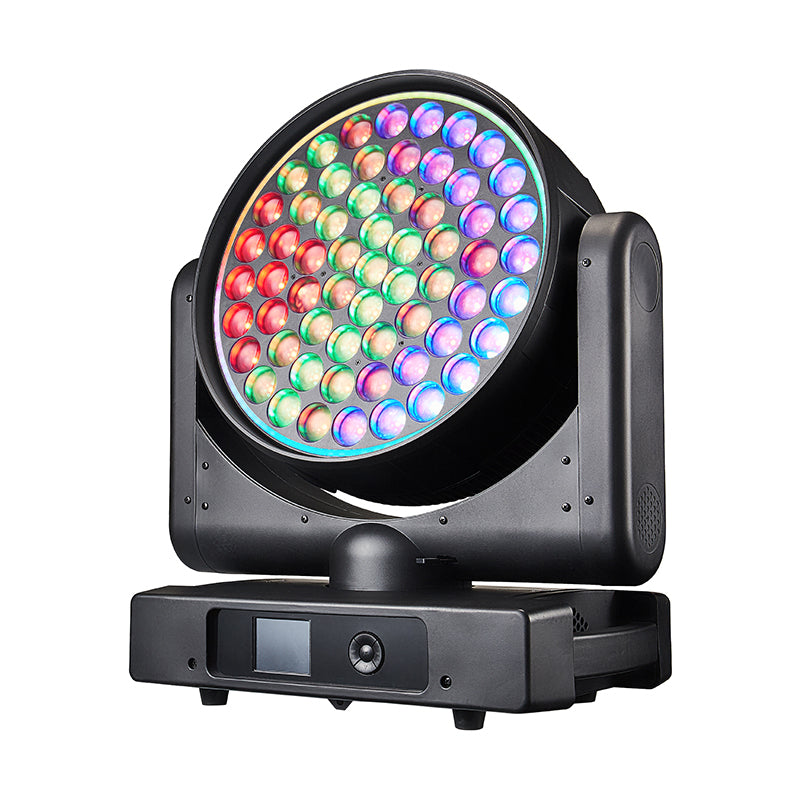

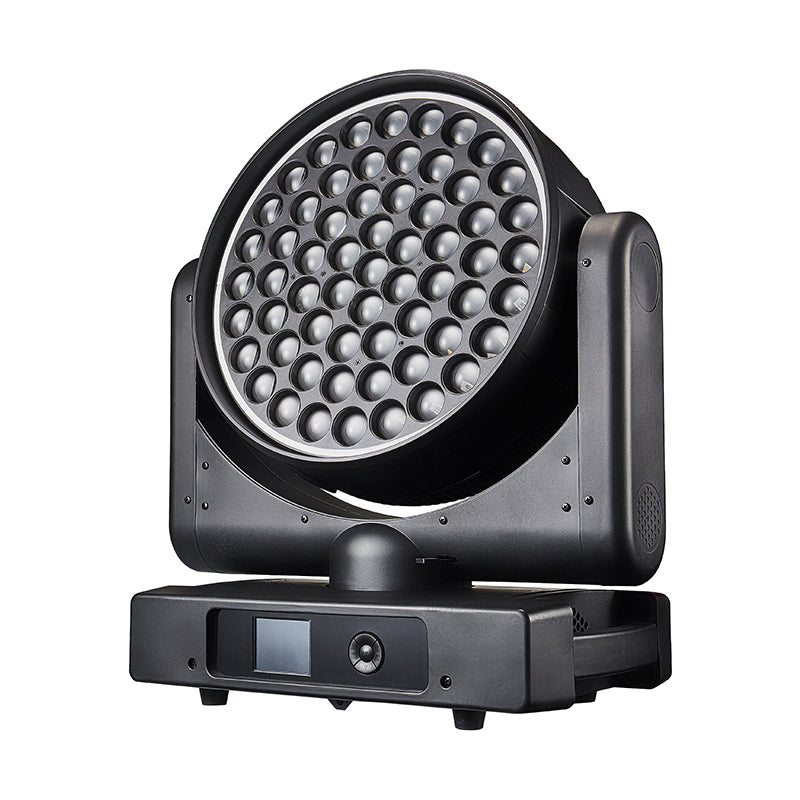

MT WASH 6130

TECHNICAL PARAMETERS

Light source

Rated voltage: AC100V~240V 50/60Hz

Input power: 2000W

Main light source specification: 61 30W RGBW LED 6065

Internal auxiliary LED: 366 0.2W LED 3535RGB

External auxiliary LED: 93 0.2W LED  5050RGB

Rated lifespan: 30000 hours

Optical

Colors: Red, Green, Blue, White, Multiple Colors

Focusing: 5°-48° Smooth and quiet linear zoom

Controls

Control mode: 21 (simplified) 21CH/49CH/204CH/232CH/265CH

(standard) 5 channel control modes, standard DMX512 protocol, RDM protocol

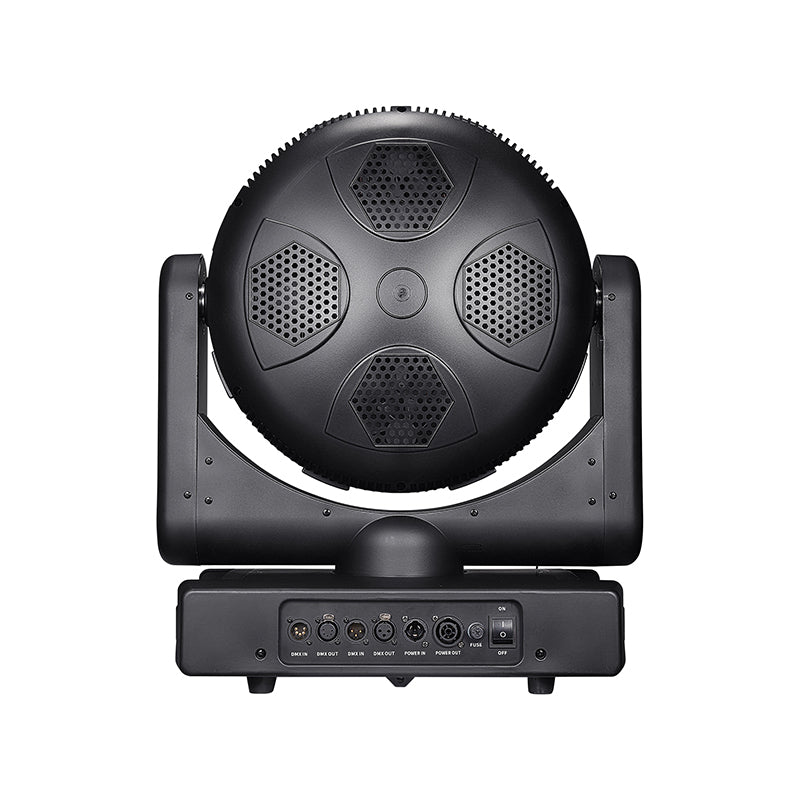

Control interface: DMX512 interface (3-core/optional 5-core), power cord handle socket

Support network protocol Artnet and upgrade interface with USB

Effect

Color temperature control: built-in CTO DMX linear dimming

Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random strobe

Dimming: Electronic dimming with 0-100% linear adjustment, with

gamma curve dimming frequency adjustable from 1.2K to 25K, macro

command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video  recording and shooting

Construction

Rotation angle: The XY axis is driven by a high-speed silent 60 thick

three-phase motor, coupled with a high-precision imported magnetic

coding positioning device, making the operation positioning more

accurate. When there is a misoperation, it can automatically return to its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reverse function

Horizontal direction 540    (16 bit precision scan), vertical direction 270

(16 bit precision scan)

Sleep function: Advanced technology is used to achieve remote sleep    function. When the light fixture disconnects the signal, it automatically enters sleep mode, making the light fixture more stable and safe

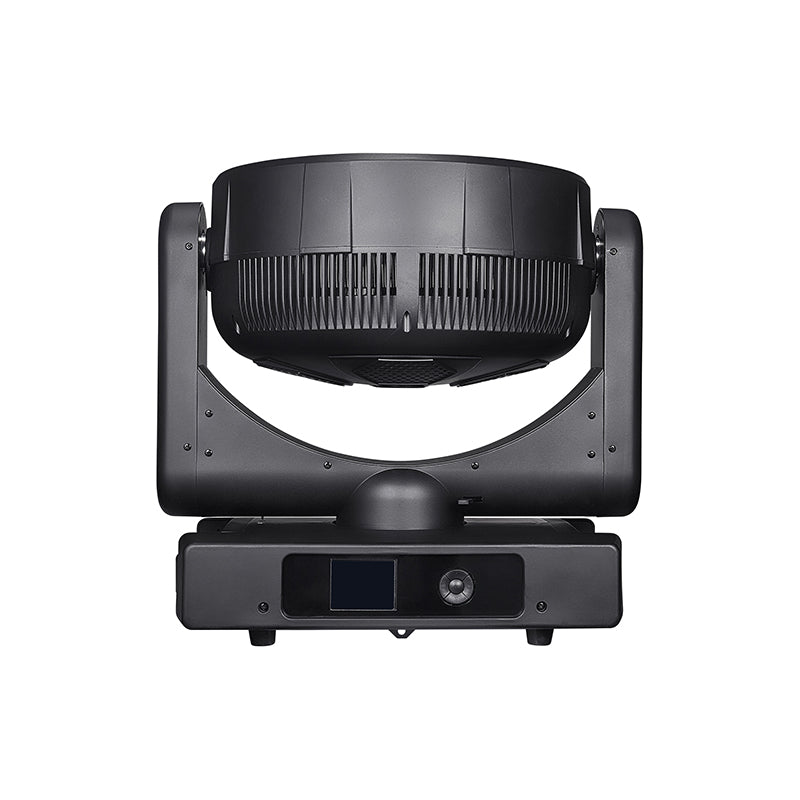

Display function: 2.8-inch touch screen display, bilingual menu in Chinese and English, sensor fault display, temperature display

Heat dissipation system: using high conductivity copper tube heat sink, fan intelligent monitoring technology automatically adjusts fan speed according to lamp temperature, built-in overheat protection intelligent system/intelligent temperature and noise balance module

Working temperature: -10°~45°

Weight&Dimension

Net weight: 22.45 kg

Gross weight: 25.5kg

Carton size: 59.5 * 56.5 * 50cm (one pack, one)
