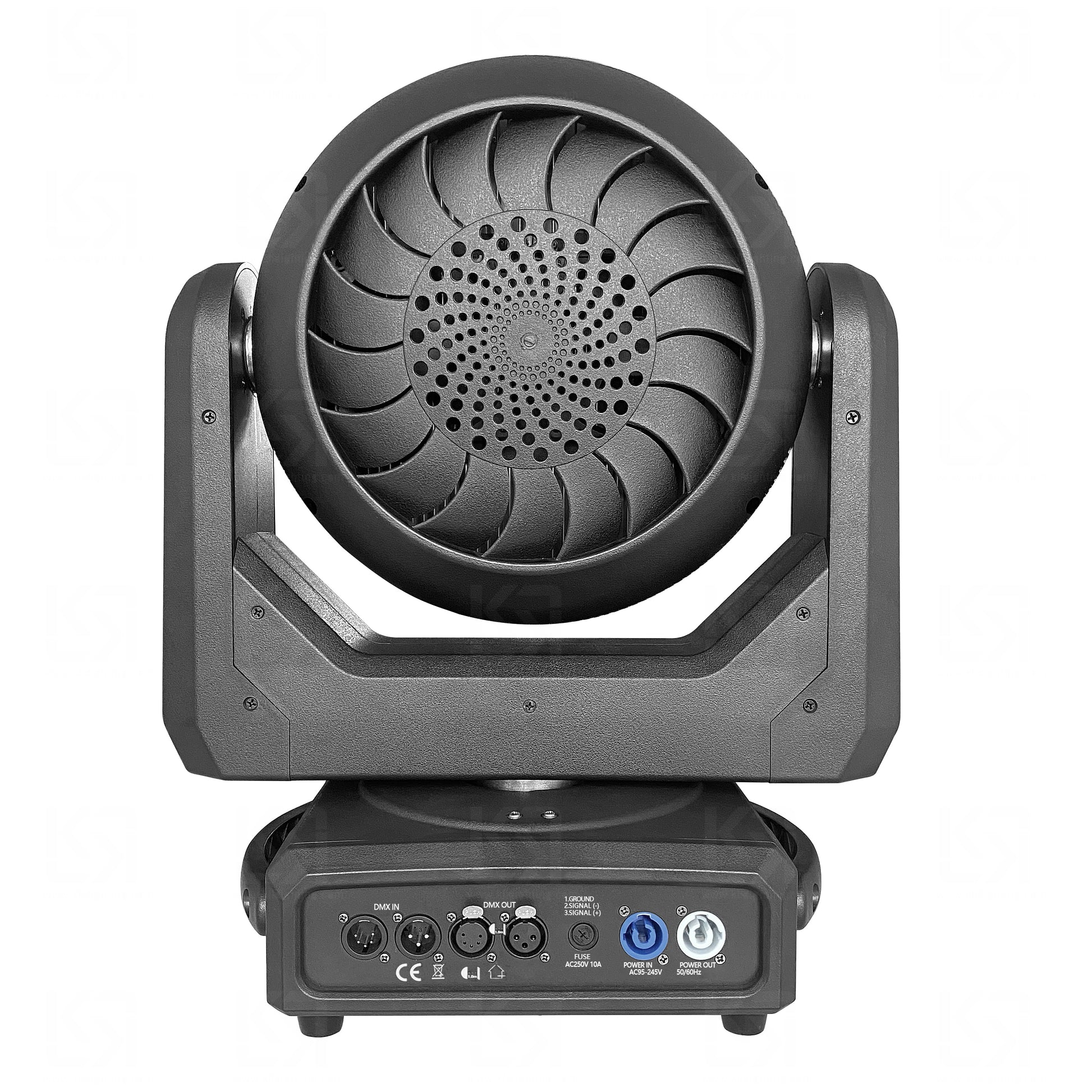

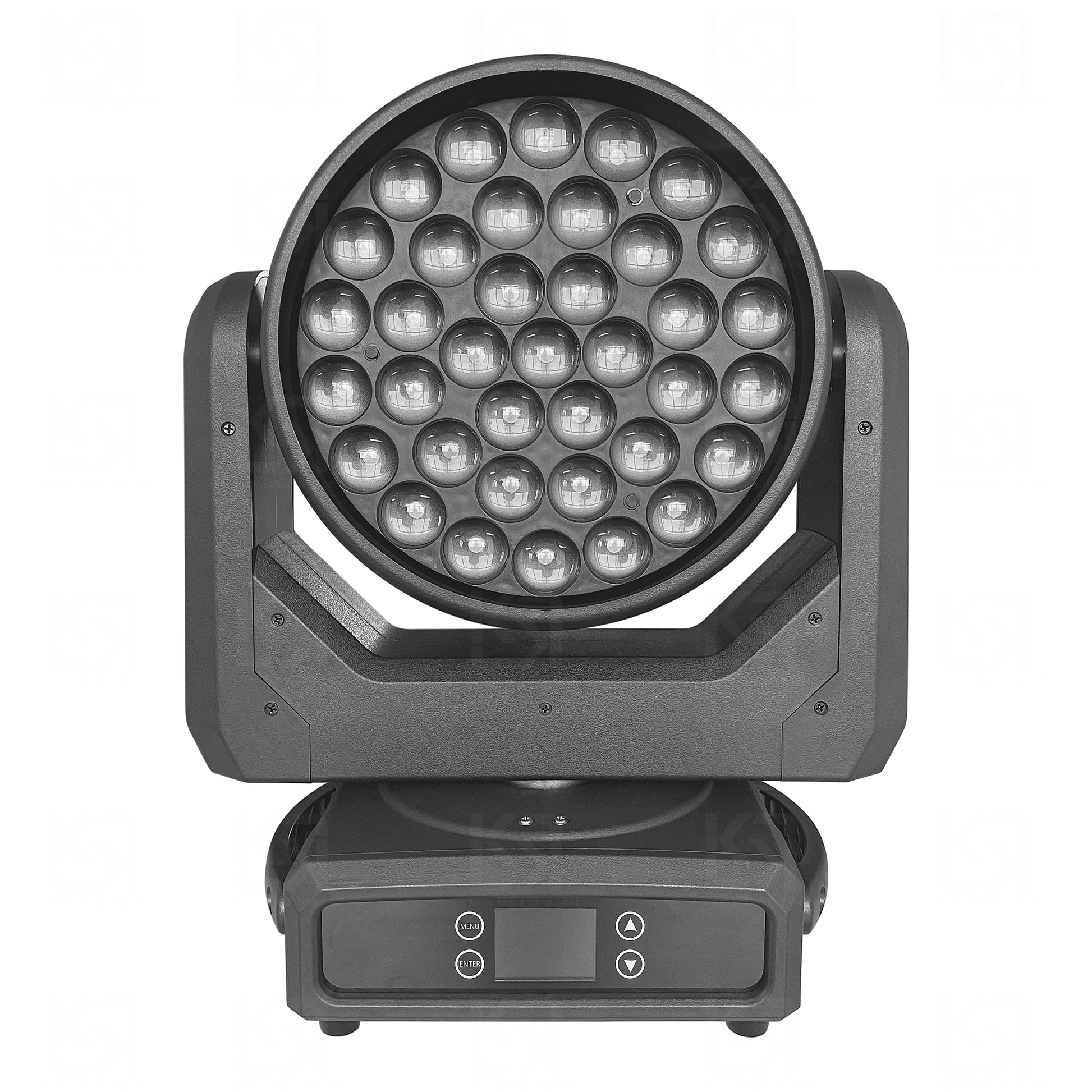

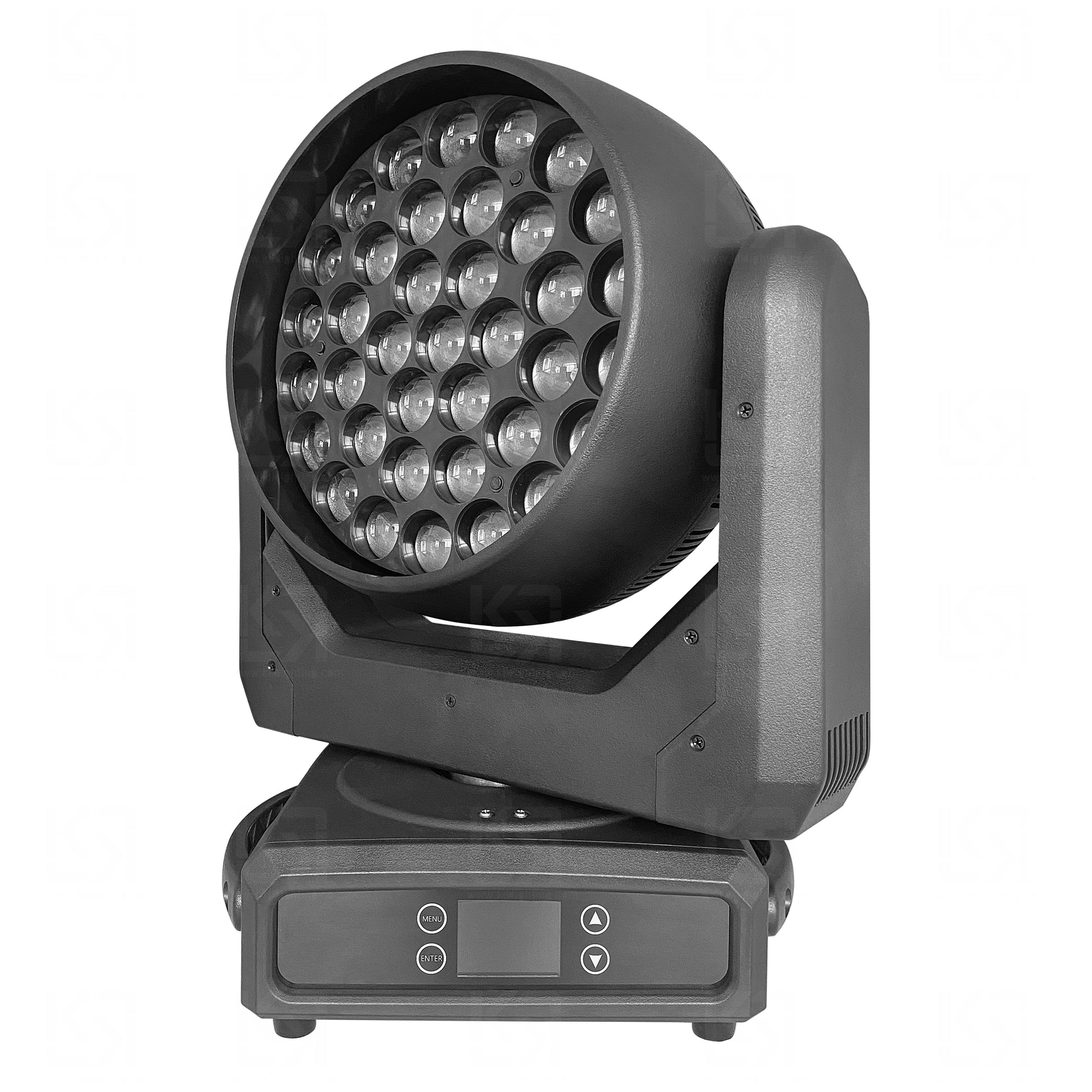

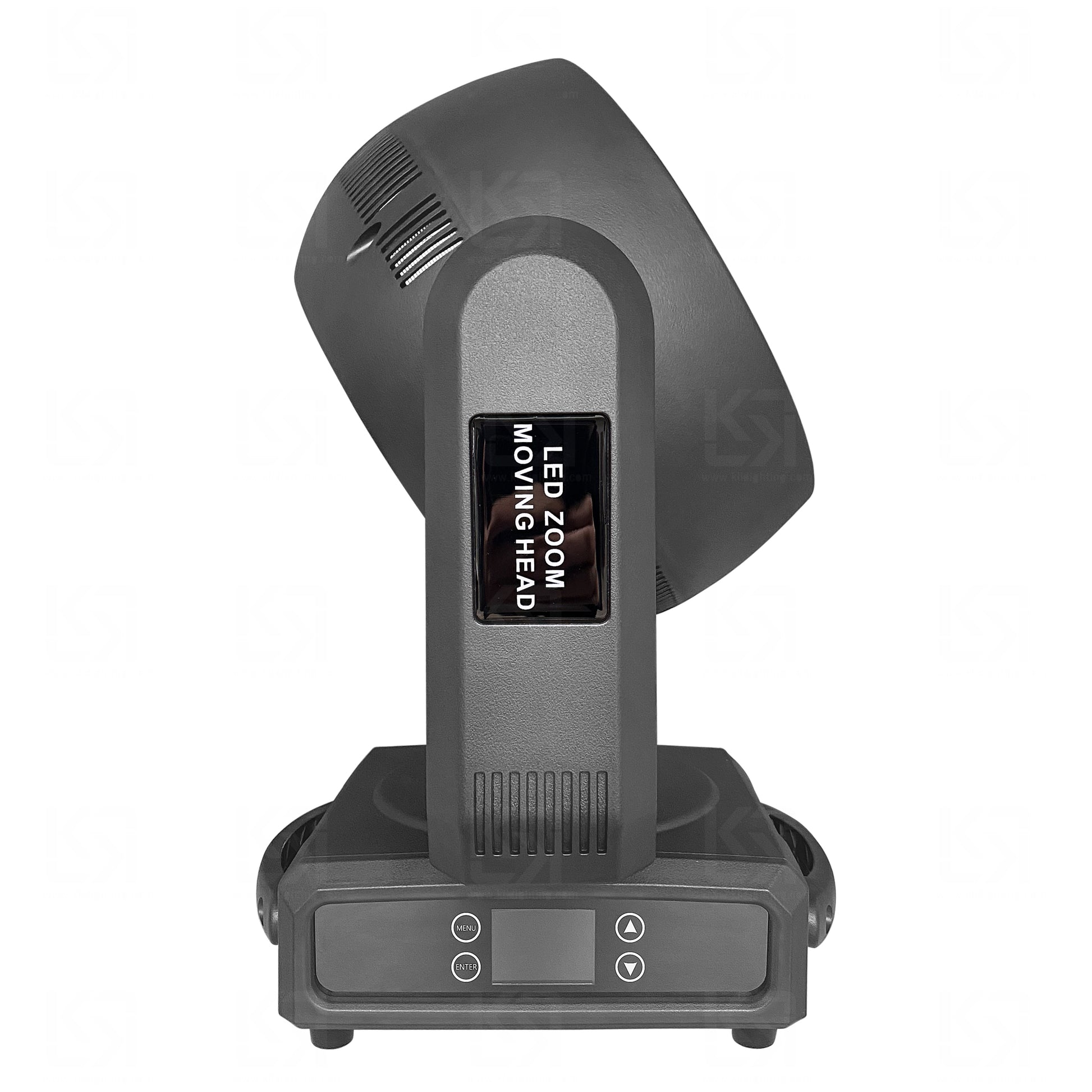

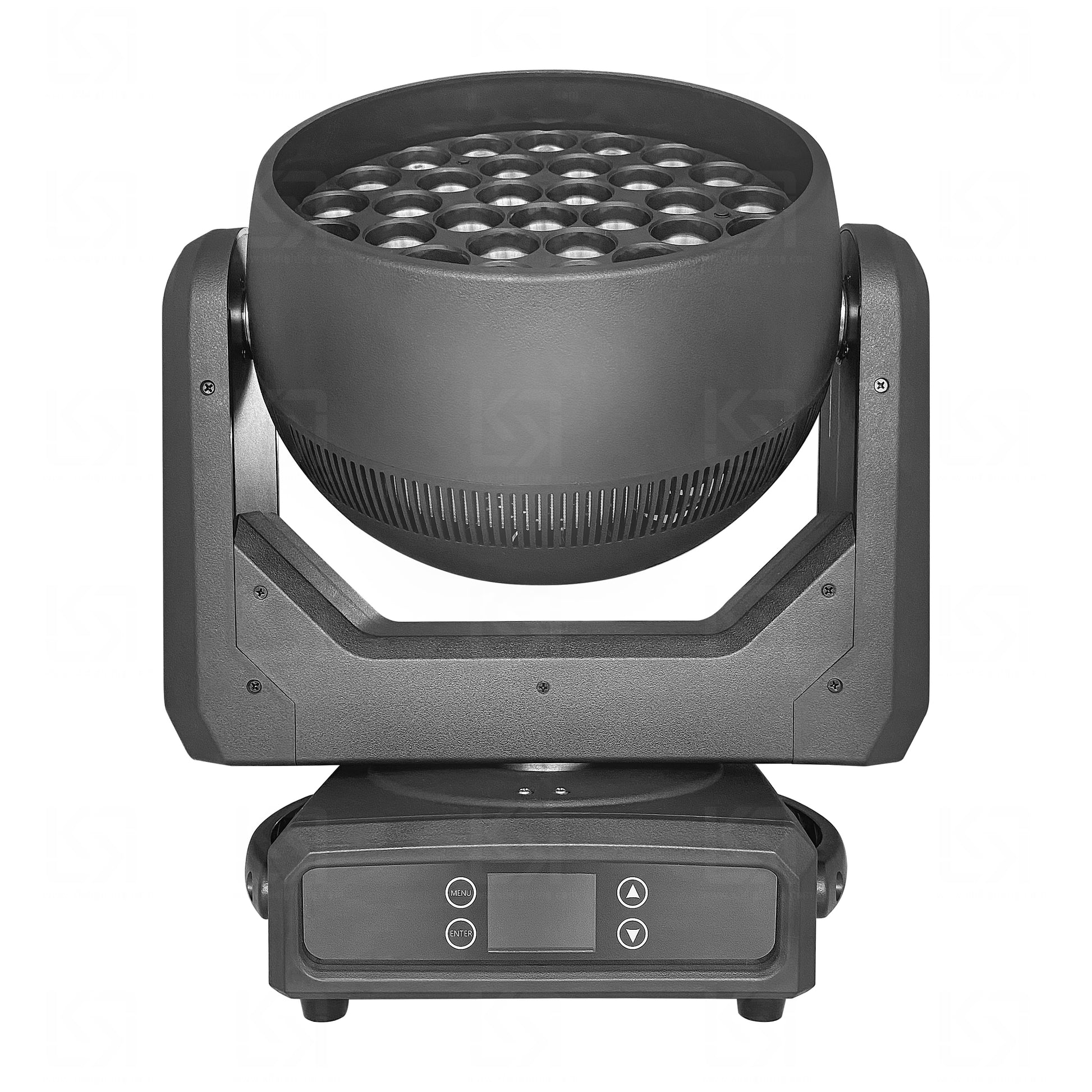

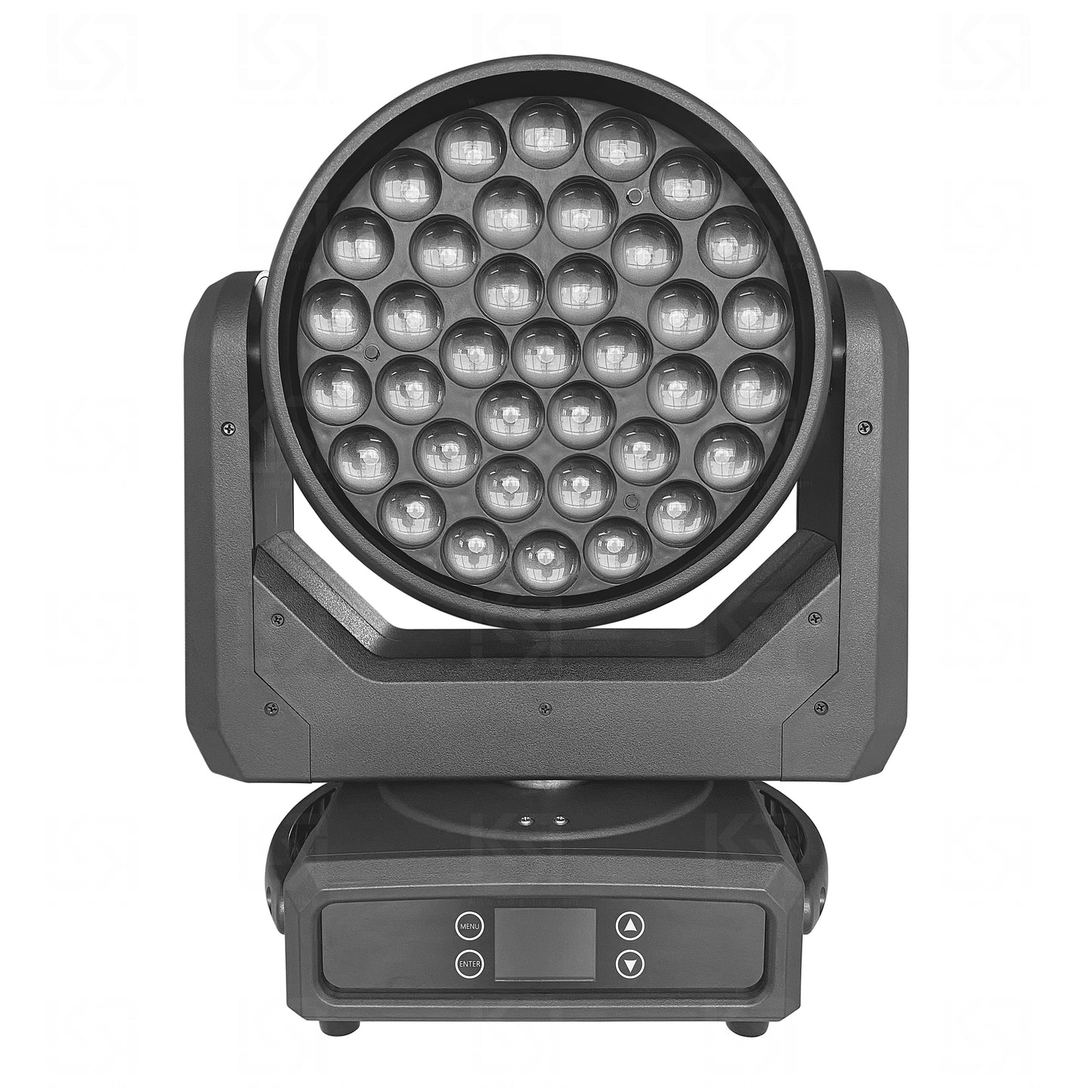

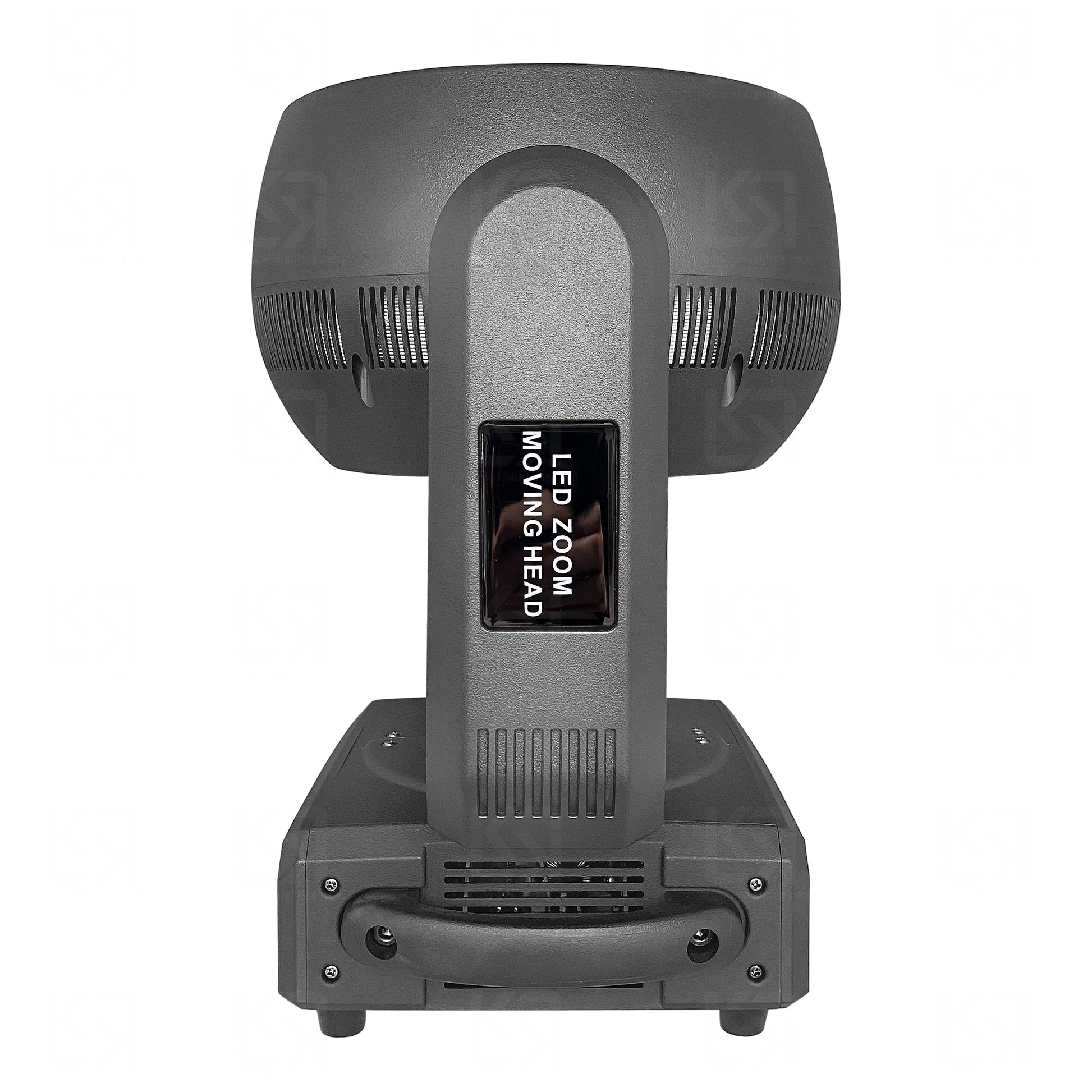

MT Wash 3725

TECHNICAL PARAMETERS

Light source

Input voltage range：110-240V~ 50/60Hz

Power consumption：850W

Light source： 37*25W 4-IN-1 RGBW LEDs

Optical

Temperature：6000K

Zoom range：5°-50°

Controls

Control channels ：15/331/35

Control protocol: DMX512, RDM

Upgrade: Upgrade via DMX/USB connection

4 touch buttons selecon menu

Display： LED 2.4G color screen

Data in/out: 3-pin and 5-pin XLR

Effect

Dimming/strobe：0%~100% dimming stop/strobe effect with adjustable speed, dual channel with instantaneous power-off funcon for color temperature setting

Strobe: 1 flash/sec., Fast strobe: 25 flashes/sec

Electronic linear zoom system

It integrates powerful beam and dyeing funcons with excellent color macro effect

CTO: 2500K-8000K

Outstanding strobe effect with variable speed

Construction

Pan movement： 540°

Tilt movement： 270°

16-bit precision scanning

Automac Pan/Tilt posion correcon

Power outlets: straight outlet, power connector input, power connector input/output.

Protecon Rang：IP20

2 fixed folding hooks for 50mm truss with keyhole reserved for 70mm truss for removable hooks

Maximum number of connecons: 11 units at 230V and 50Hz, 5 units at 120V and 60Hz

Suitable for stages, theatres, TV studios and dancehalls

Weight&Dimension

Product dimensions： 409x314x469mm

Package size： 490x350x620mm, 19kg(Carton included, one unit per carton）

The flight case is one for two：750x440x700mm, 65kg(Flight case included）
