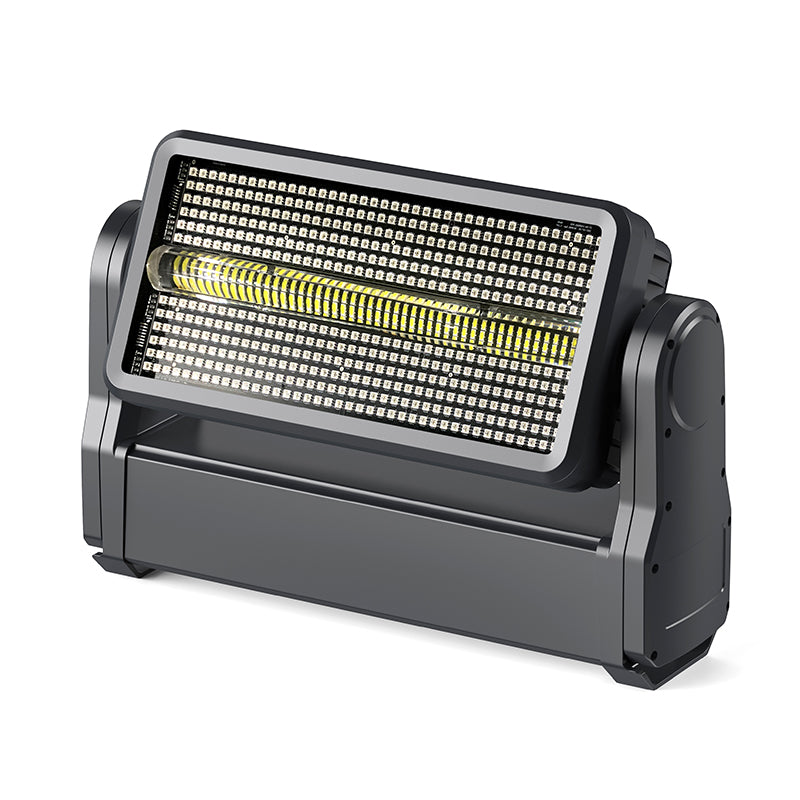

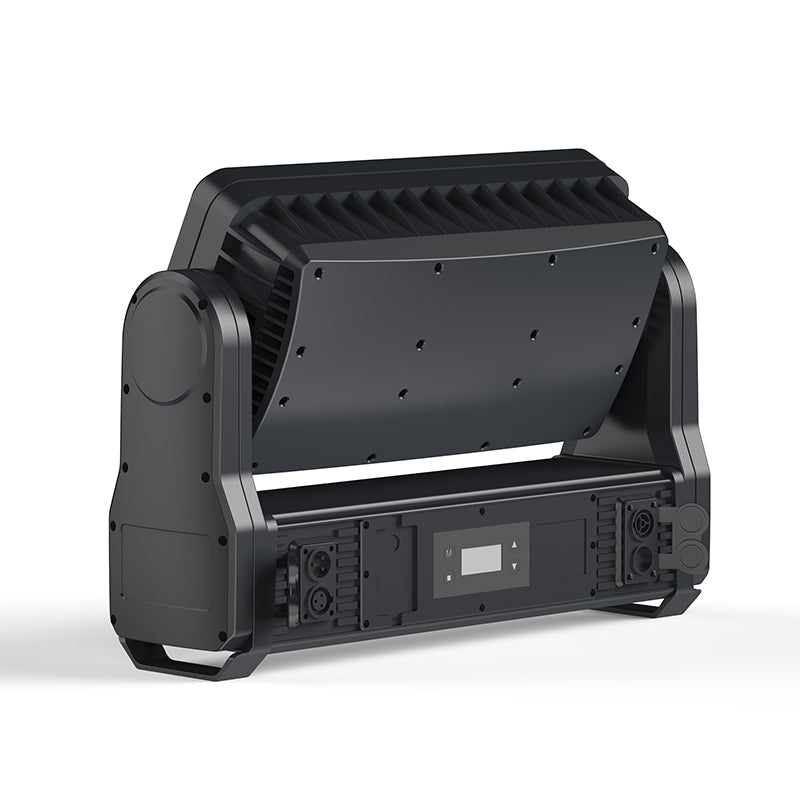

Moving strobe 1500 IP

TECHNICAL PARAMETERS

Light source

Mains voltage: 100-240V AC / 50-60Hz

Power: 1000W

Optical

Strobe Panel LEDs

LED Type: 5050 0.5W RGB 3in1 LEDs

LED Count: 560

LED Colors: RGB

LED Segments: 12 (2 x 6)

Strobe Tube LEDs

LED Type: 3535 5W 6500K LEDs

LED Count: 144

LED Colors: Cool-White

LED Segments: 12

Controls

Movement Resolution: 8-16

Bit Position Feedback:

yes Tilt (Degrees): 185°

Control Modes:23CH / 14CH / 68CH

Display: Illuminated graphic LCD

Protocol: USITT DMX-512, RDM

RDM: Bidirectional communication

Wireless DMX: 2.4 GHz W-DMX™ (optional)

Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out

Power Input: Seetronic powerCON TRUE1 In/Out

Effect

Dimmer: 0-100% electronic Shutter:

electronic, max. 20 Hz Internal

Effects: LED Macro Effects

Body

Cooling: Temperature controlled, overheating protection

Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F Operating

Position: any

Mounting Options

Standing: Rubber feet

Hanging:Omega-Bracket

Safety wire attachment: foldout eyelets

Dimensions

Single fixture: cardboard (inner and outer cartons)

Tourpack: 4-way Flight Case

Housing Colors

Standard colors: black

Dimensions & Weight

Length: 502 mm / 119.8 in

Width: 137 mm / 5.4 in

Height (head horizontal): 326 mm / 12.8 in

N.W: 11.2 kg G.W:

13.5 kg
