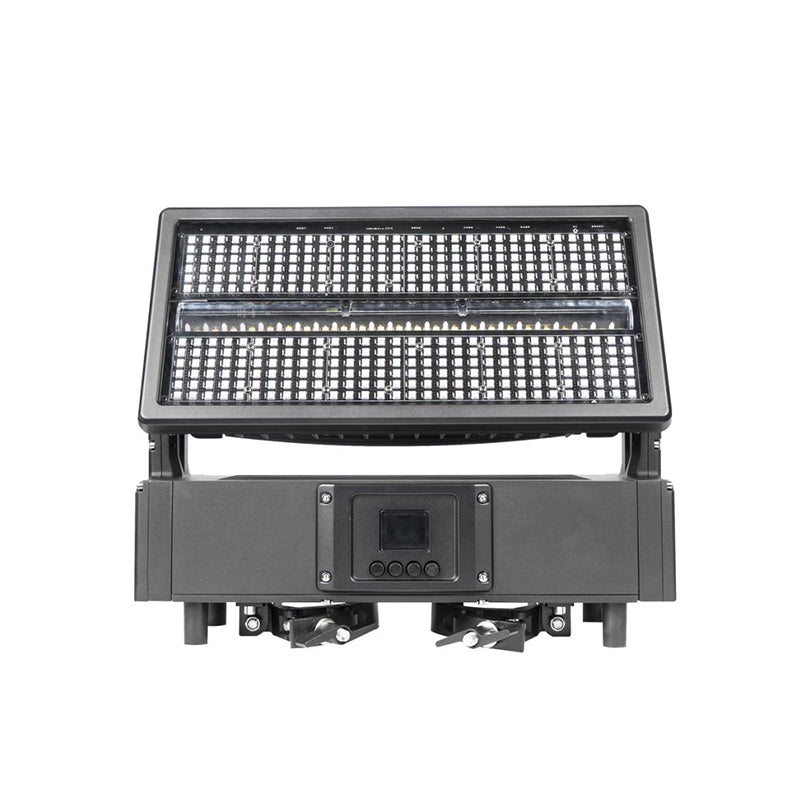

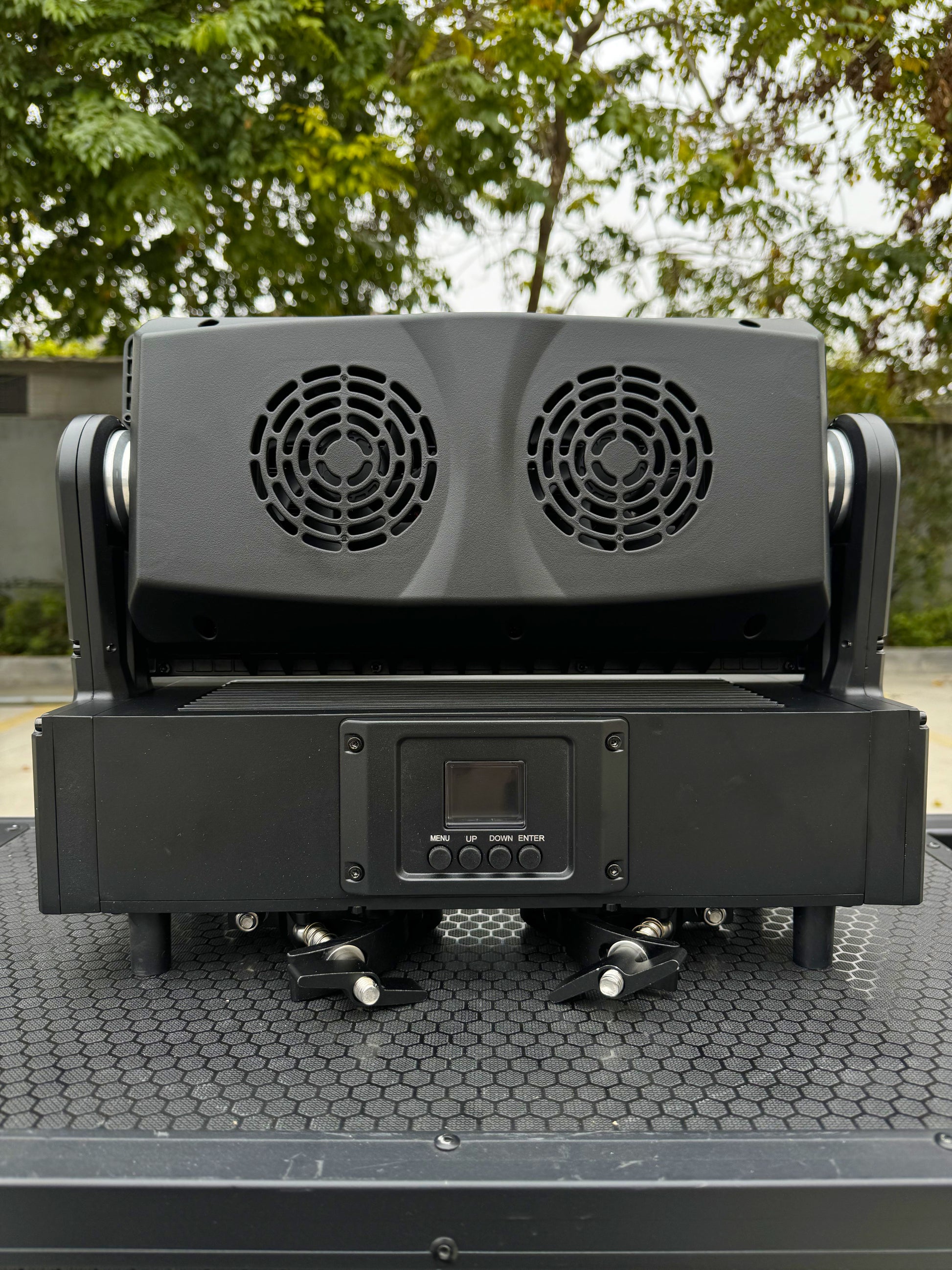

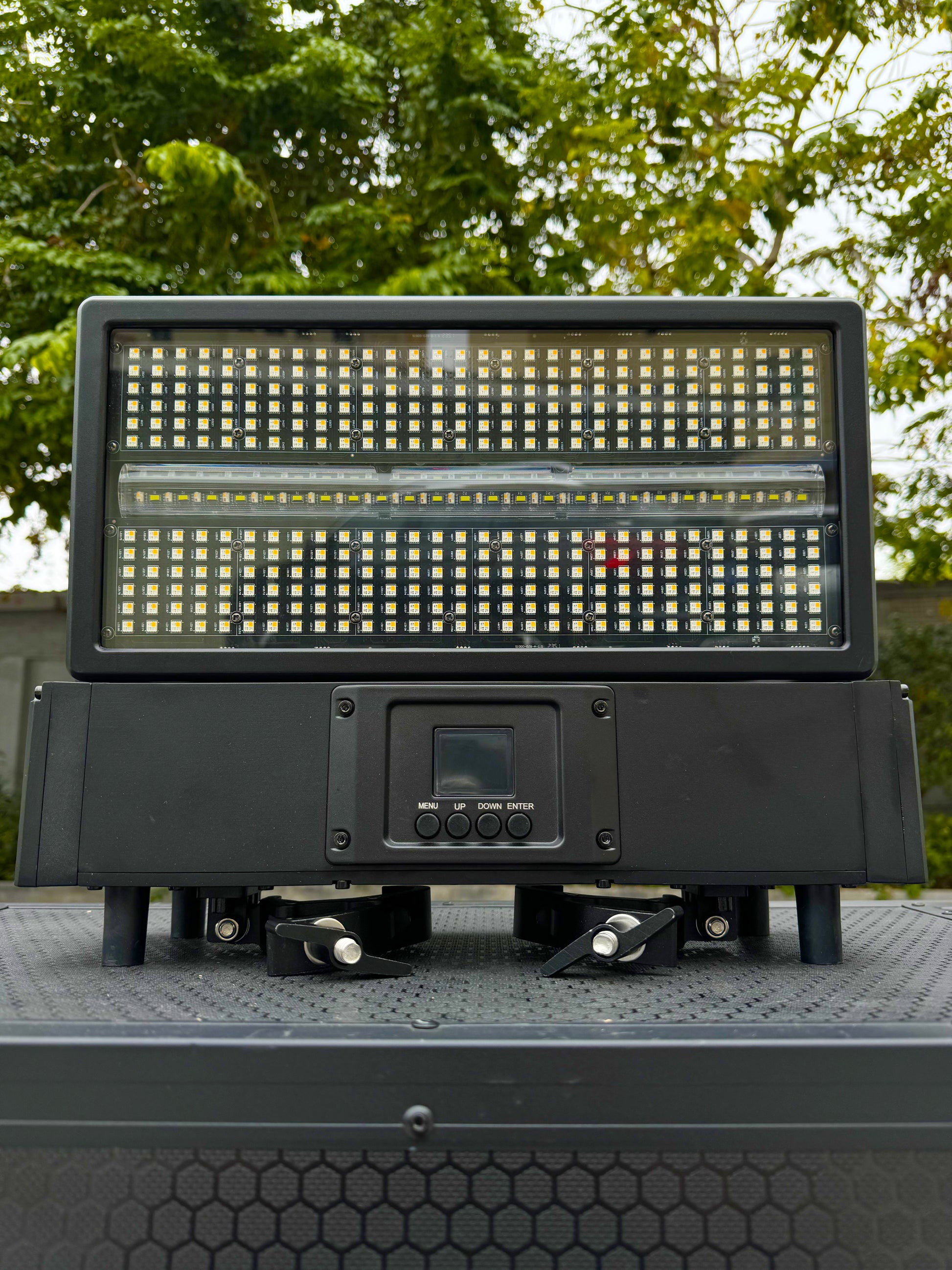

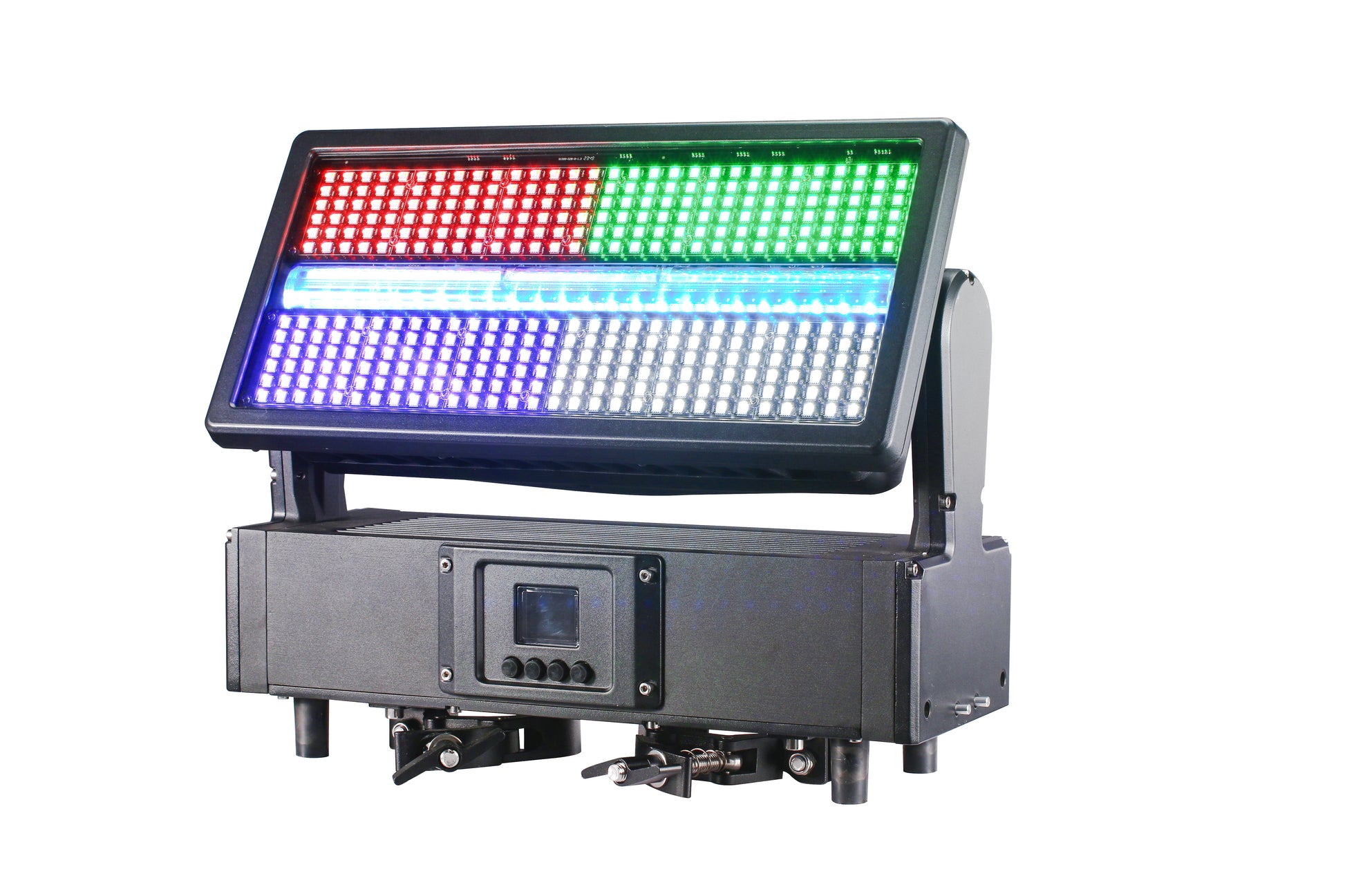

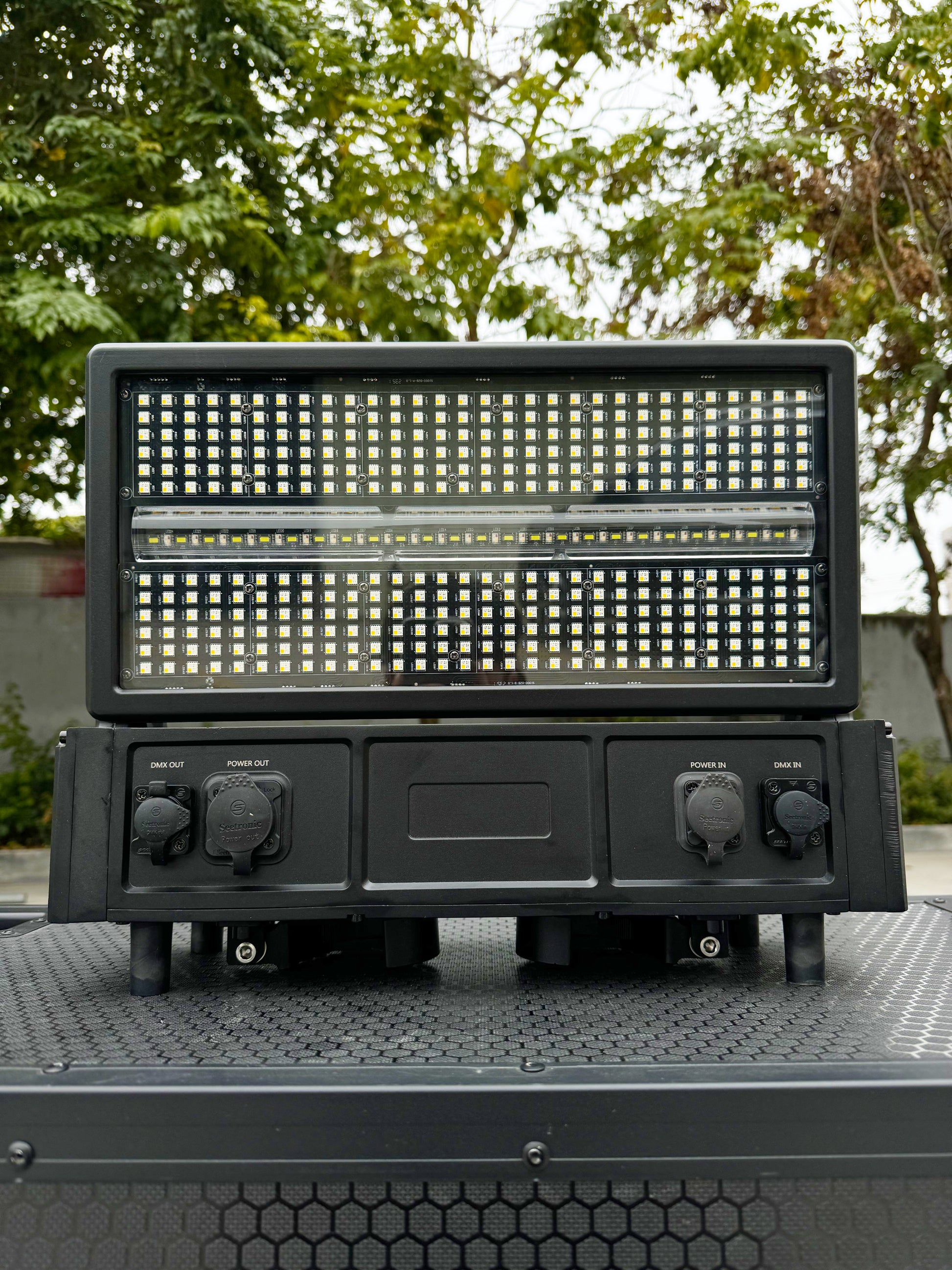

Moving strobe 1000 IP

TECHNICAL PARAMETERS

Light source

Middle 24*10W White LED+24*8W RGBS 4in1 LED；

Both sides 360*1W RGBA 4in1

Lamp life: ≥50000 hours

Input voltage: AC100-240V ,50-60Hz

Optical

Full power :450W±5%,Power factor PF≥0.95

Beam angle: 120°,Tempered glass + PMMA high quality optical light guider

Color system: W+RGBS 4in1 +RGBW 4in1 LED

Controls

DMX Channel:26/33/41/64/82/88CH

Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM

Maximum number of connections:

5 units (240V, 50Hz) 1.5mm² power cable

3 units (100V, 60Hz) 1.5mm² power cable

Effect

Full optical domain dimming, 65536-level dimming accuracy;

Fast strobe 1~25Hz;

Middle LED bead is divided into 6 areas to control; Both sides LED bead is divided into 12 areas to control.

It integrates wash, beam and strobe 3in1 effect;

Preset multiple effects macro functions

Construction

Tilt:190°, accuracy 0.86°/step, fine-tuning accuracy: 0.0034°;

Adopt magnetic sensitive response reset system

Control and programming

Menu display: 1.8-inch TFT color display; Chinese and English can be switched at will, and the font can be reversed 180° display;

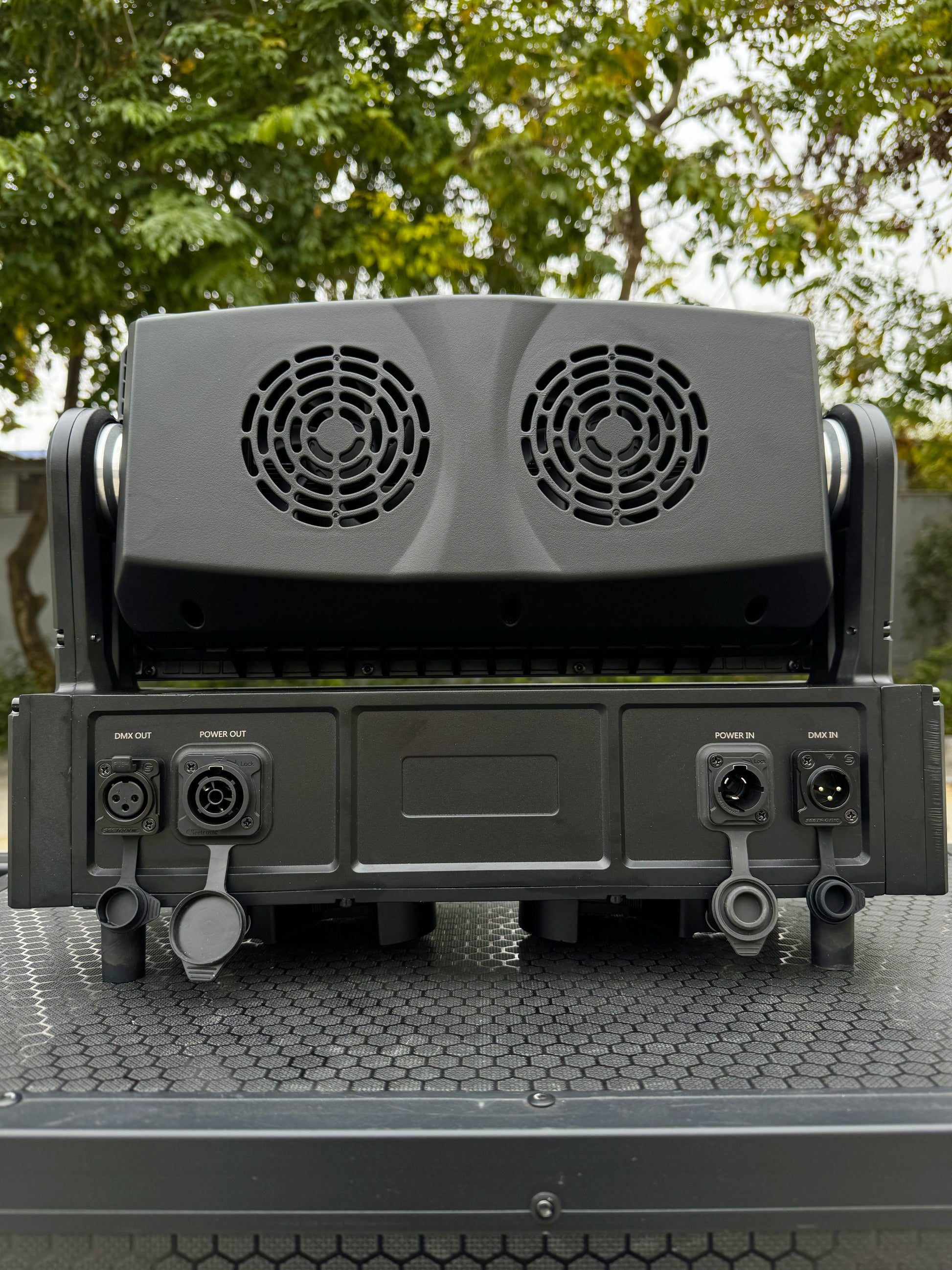

Data In/Out socket: 3-pin sockets

Protection Rating: IP65

Working temperature: -10℃～45℃

Weight&Dimension

Dimension: 420*163*347mm;

NW: 12.7kg

Carton package 1in1 size: 505*390*280mm

Gross weight: 15.3kg

Flight case packing 4in1 size:915*585*525mm

Gross Weight:90.2kg
