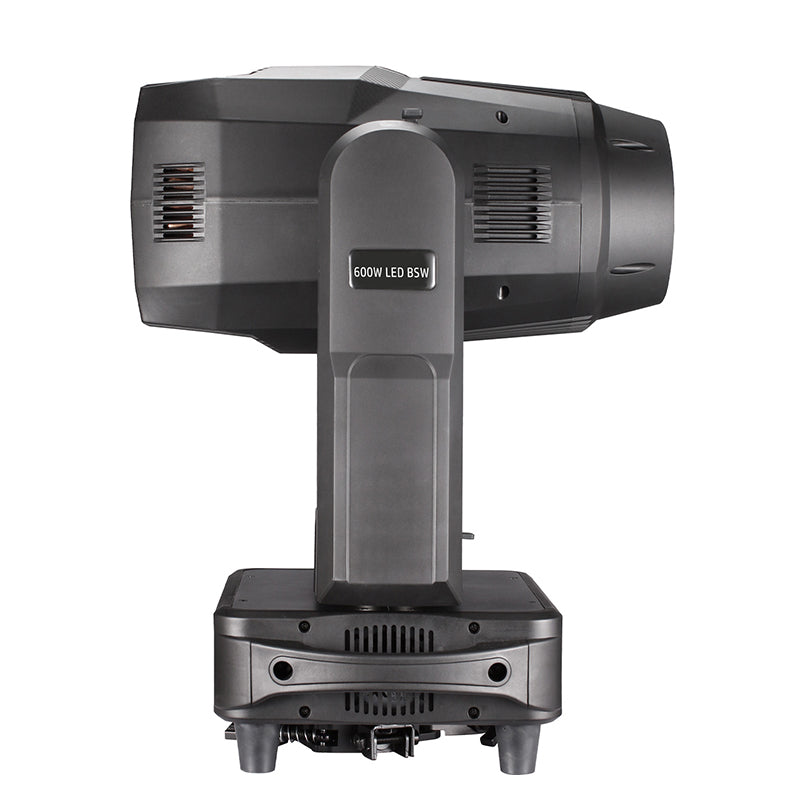

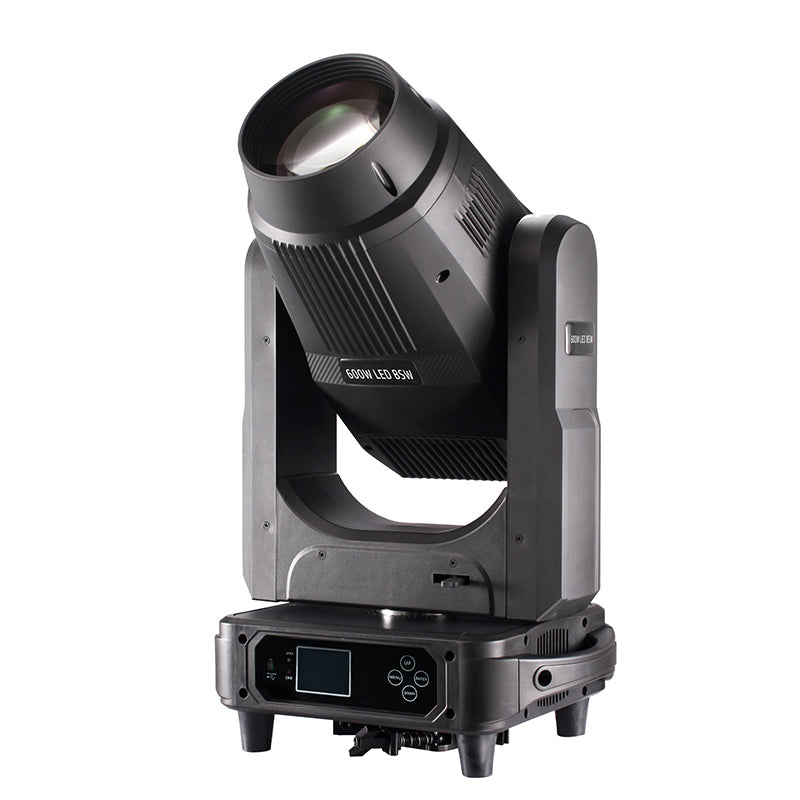

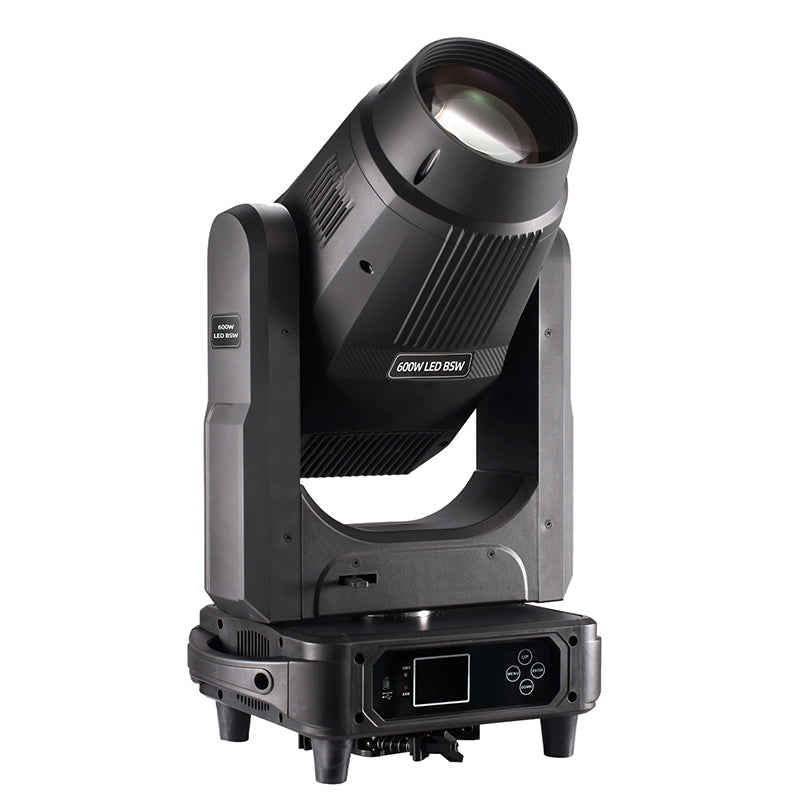

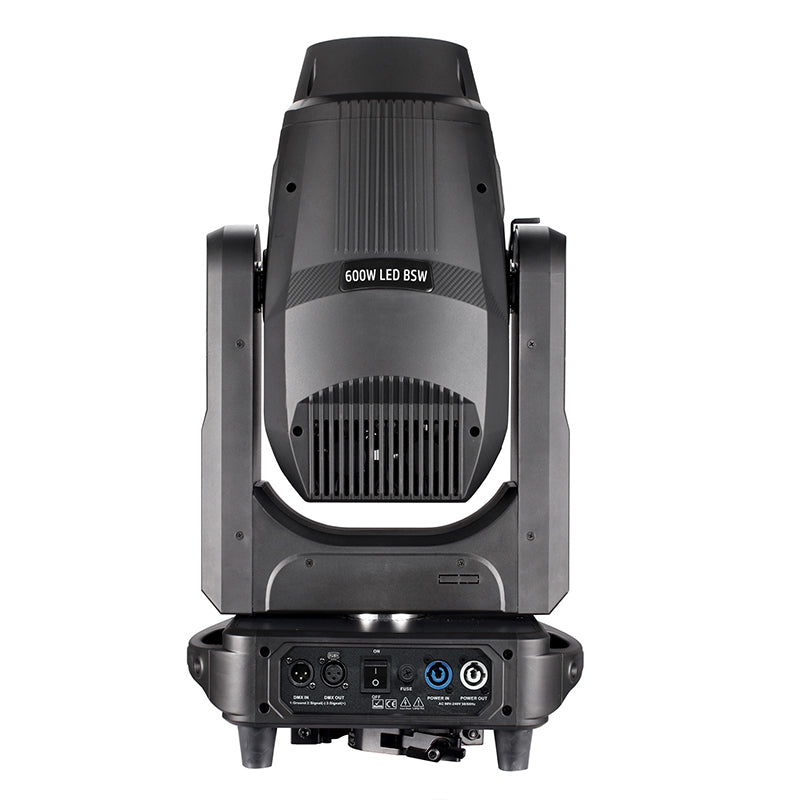

ALED BSW 600 CMY

TECHNICAL PARAMETERS

Light source

Voltage: AC90V-240V / 50-60HZ

Light source specification: 600W LED Module

Light source life: 20,000 hours

Optical

Zoom Angle: 3.5 to 50 degrees

Optical devices: combined optical lens

Controls

Channel mode: 26CH/34CH/39CH

Macro functions: console reset function, self-walking mode, master-slave mode

Display: 2.4 inch display + button operation, bilingual operating system in Chinese and English, can be reversed 180° display

Control signal: international standard DMX512, with RDM function, Software can be upgraded online and address codes can be dialed

Effect

Dimming system: 0-100% linear adjustment

Focus system: linear adjustment from 4 meters to 50 meters

Frost system: 1 independent frost effect, the light spot is soft and natural

High frequency strobe: 0-30 times/s, the speed control strobe effect can be adjusted

Color: 8 colors + white light

Color mixing system: linear CMY+CTO color mixing system

Fixed Gobo: 10 fixed gobos + white light

Rotating Gobo: 7 rotating gobos + white light, each rotating gobo can rotate independently in both forward and reverse directions

Prism system: 8 facet prisms +6 facet prisms, Each prism can rotate independently in both forward and reverse directions

Effect Disk: 1 independent effect disk

Construction

Horizontal scan: 540 degrees (16-bit precision scan) electronic error correction

Vertical scan: 270 degrees (16-bit precision scan) electronic error correction

Weight&Dimension

Net weight: 23KG

Product size: 38*27*67CM

Carton packing size: 75*36*47CM(1in1)

G.W: 27KG

Flight case size: 77*47*89CM(2in1)

G.W : 76KG/2PCS
