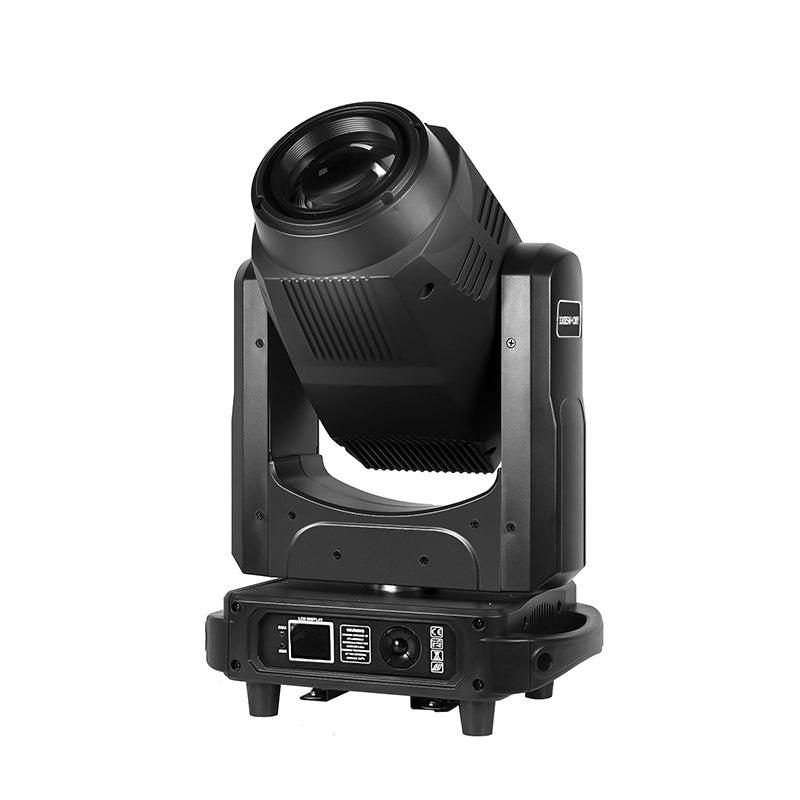

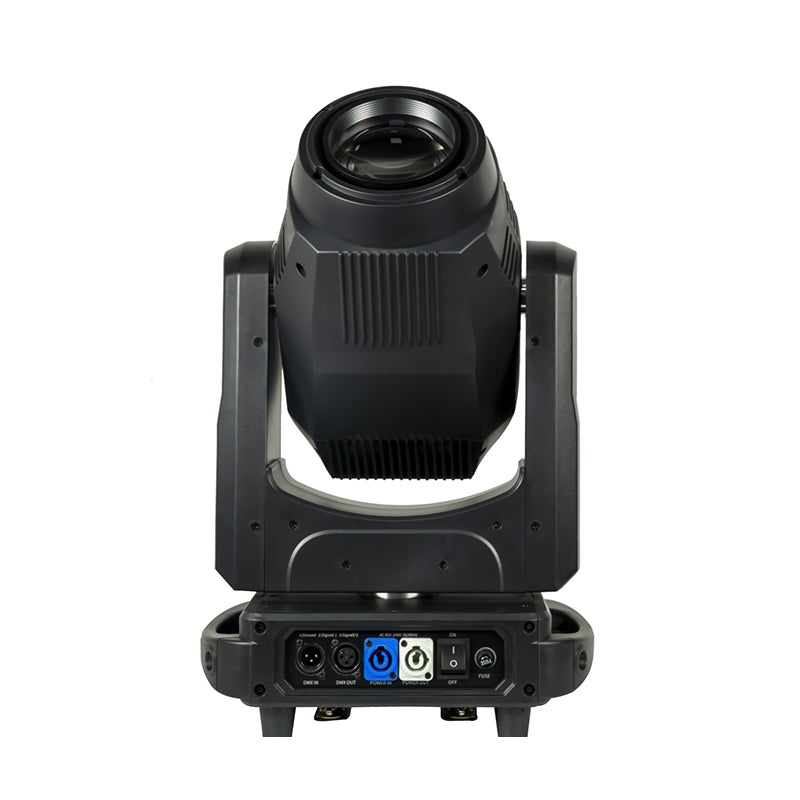

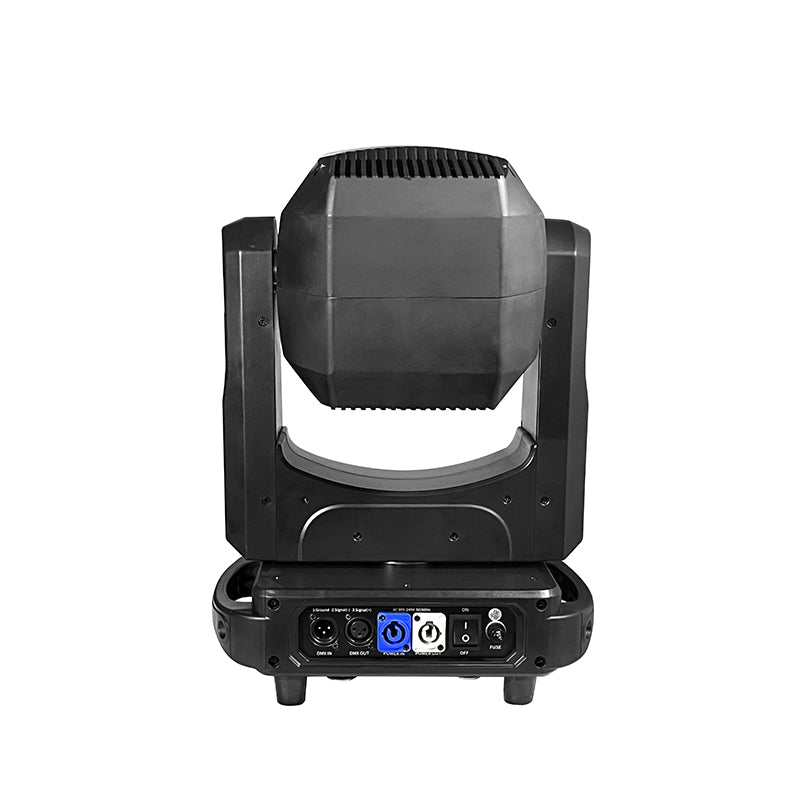

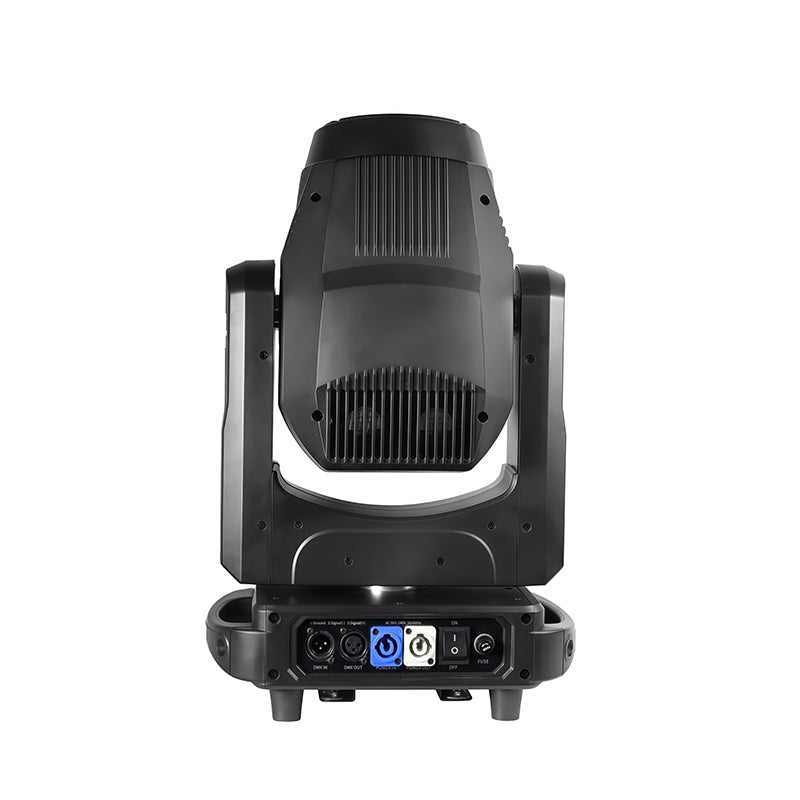

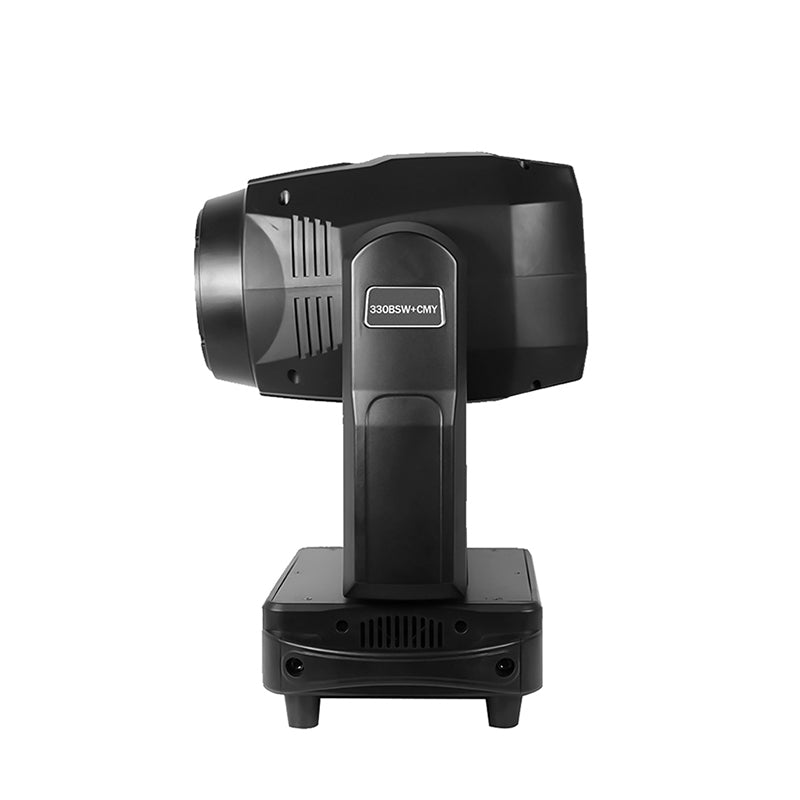

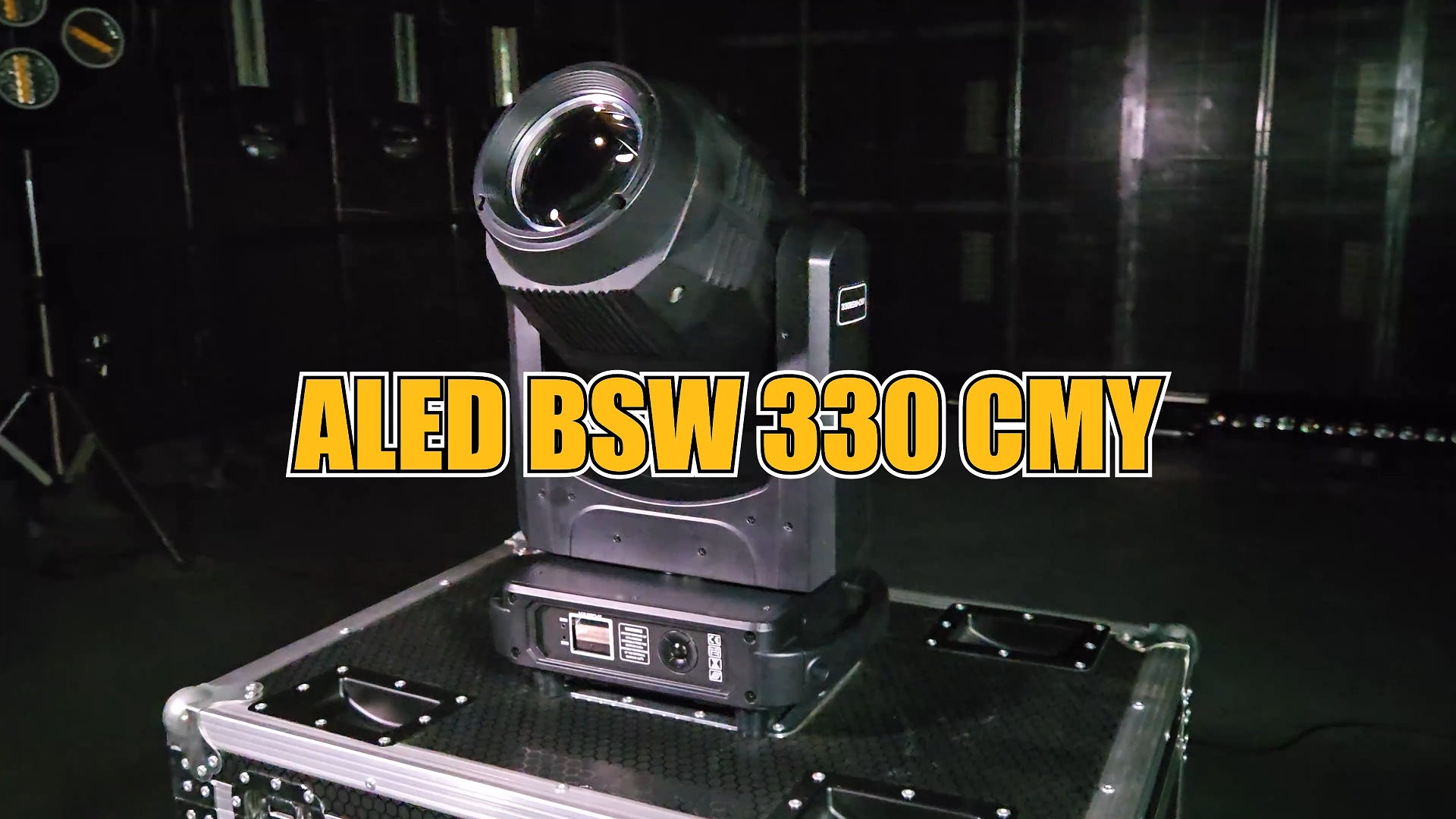

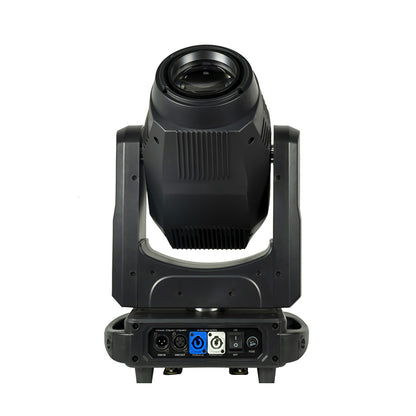

ALED BSW 330 CMY

TECHNICAL PARAMETERS

Light source

Input voltage: AC90V-240V / 50Hz-60Hz

Light source：LED 330W module

Life time: 20000 hours

Rated power: 360W

Optical

Zoom range: 2.8-32 degrees

Controls

Channel mode: 23CH

Display: 1.8-inch LCD screen, bilingual operating system, can reverse 180°display

Control signal: international standard DMX512.With the RDM function, you can upgrade software online and dial address codes

Effect

Dimming: 0-100%, electronic linear dimming

Frost : 1 independent frost effect, soft and natural light spot

Strobe: 0-30 times/second, adjustable

Color: 6 colors + white light

Color mixing system: linear CMY+CTO color mixing system

Fixed gobo: 6 fixed gobos + white light

Rotation gobo: 7 glass gobos + white light, each glass gobo can independently rotate forward and backward

Prism: standard 4 facet prisms, can independently rotate forward and backward

Construction

Pan/Tilt : 540°/270°, 16bit precision scan, electronic error correction

Cooling: active fan

Appearance material: high temperature resistant plastic

Weight&Dimension

Product size: 32*21*52CM

Net weight: 14.4kg
