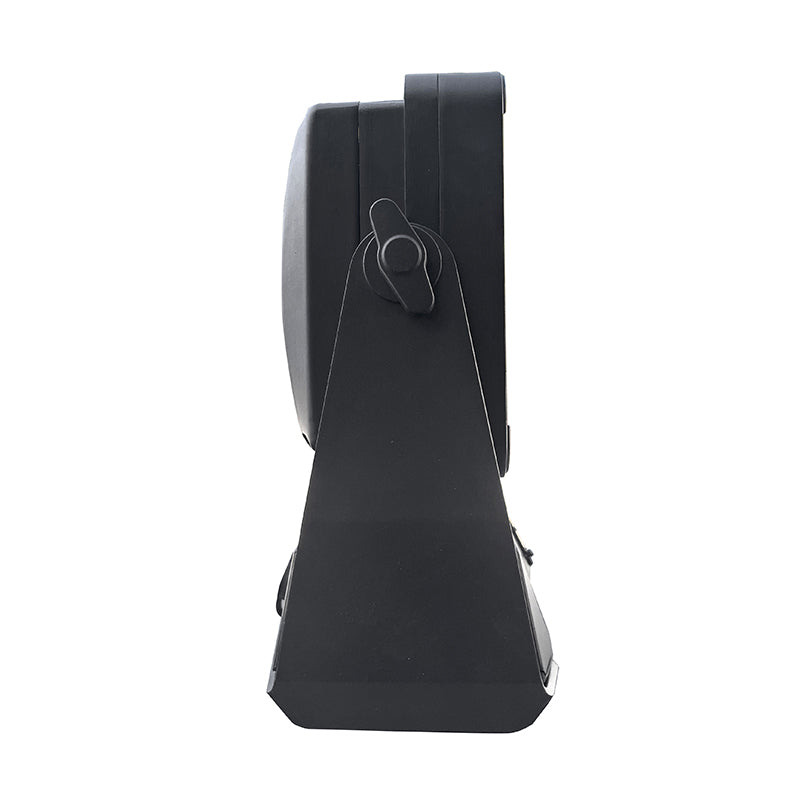

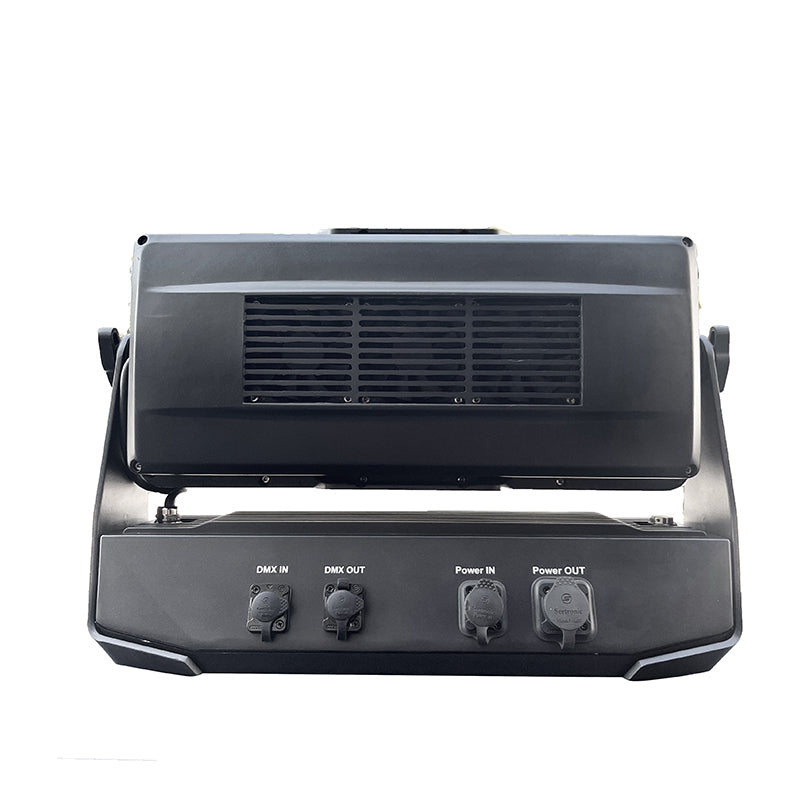

Thunder P40 IP

TECHNICAL PARAMETERS

Light source

Input voltage：AC 100V/120V/200V/220V/230V/240V   50/60Hz

Power ：600W@220V

LED light source：40PCS 15W RGBW

Working lifetime ：50000h

Controls

International standard DMX 512signal，3 Pin (5 Pin) DMX512 interface   RDM Wireless  ：2.4 GHz W-DMX™ (optional)

4 channel modes Master-slave

Stand-alone mode Self-test mode

Effect

Control in 4 segments

Variable Speed Two-way Rainbow Effect Color Flow Effect

Dimmer ：0-100% linear dimming

Strobe ：Electric strobe，0.3-20pcs/sec Max 20 Hz

Construction

Adjustable horizontal and vertical speed Display fixture using time

Display software version number

Modular structure for easy maintenance Speed-regulating radiator

Shell and protection level：

High-strength casting aluminum alloy, black shell（white optional）

Working temperature： -20°C～40°C

Protection Rating: IP65

Weight&Dimension

Weight:  14.8Kg
