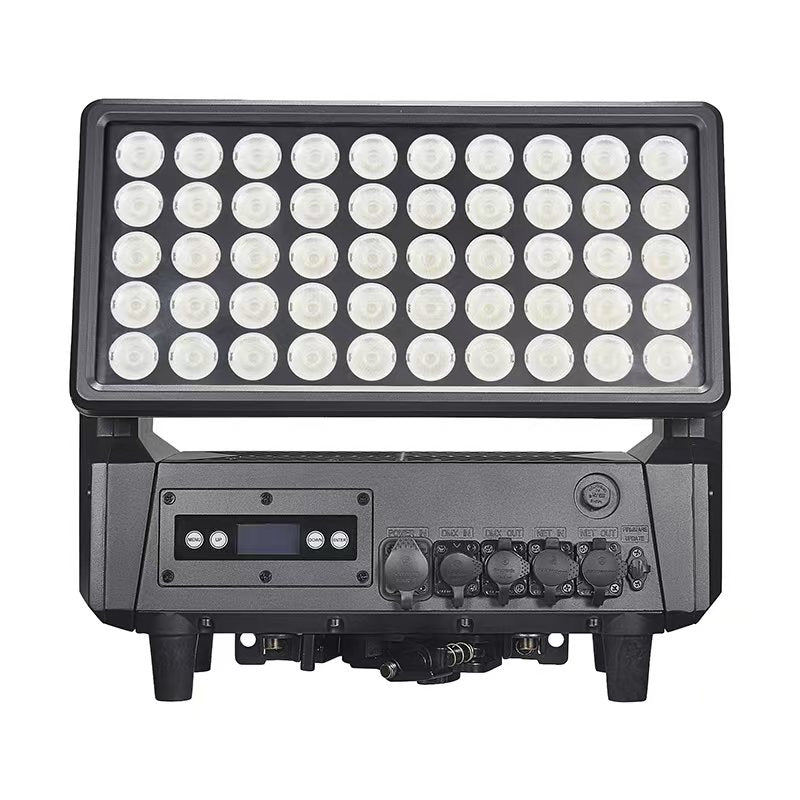

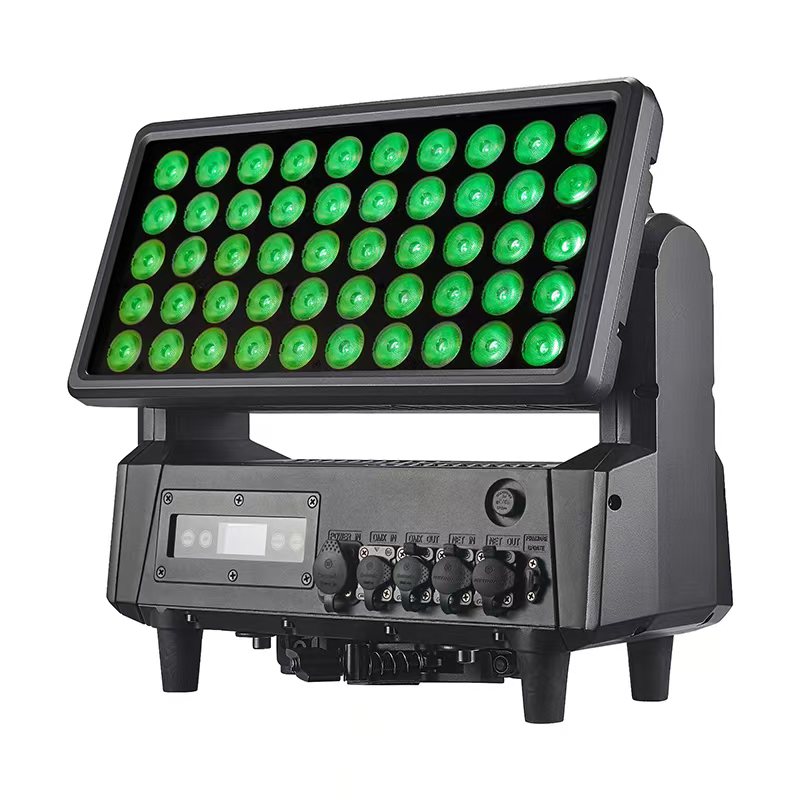

Thunder M50 IP

TECHNICAL PARAMETERS

Light source

Input voltage: AC90-240V 50HZ/60HZ

Whole lamp power: 1000W

Light source specifications: 50*20W RGBW 4in1 High brightness LED

Rated life: 50,000 hours

Color: Red, green, blue, white, multiple colors, infinitely changeable

Lamp control: RGBW whole control

Controls

Control mode: 11CH (standard) 1 channel Channel control mode, standard DMX512 protocol, RDM protocol

Power connection method: power input and output, maximum number of connections @2 units 230V, 1 unit 120V

Signal connection method: DMX512 input and output, support network protocol Artnet

Display function: LCD touch screen, Chinese and English bilingual menu, sensor fault display, temperature display

Effect

Electronic strobe, 0.3~25 times/second

Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro instruction dimming linear, stable, smooth and flicker-free, using stable constant current drive and power supply, suitable for video shooting

Construction

Vertical direction: 220° (16 bit precision scanning)

Y-axis adopts high-speed silent 60 three-phase thickened motor drive, which makes the operation faster and smoother. It can automatically return to its position after misoperation, and the vertical speed is adjustable; Y-axis rotation function and reverse function; adopt photoelectromagnetic encoding for high-precision positioning

Cooling system: high-conductivity light aluminum radiator, fan intelligent monitoring technology automatically adjusts the fan speed according to the temperature of the lamp, built-in overheating protection intelligent system/intelligent temperature and noise balance module

Protection level: IP65

Lamp packaging: waterproof and shockproof aviation box or carton
