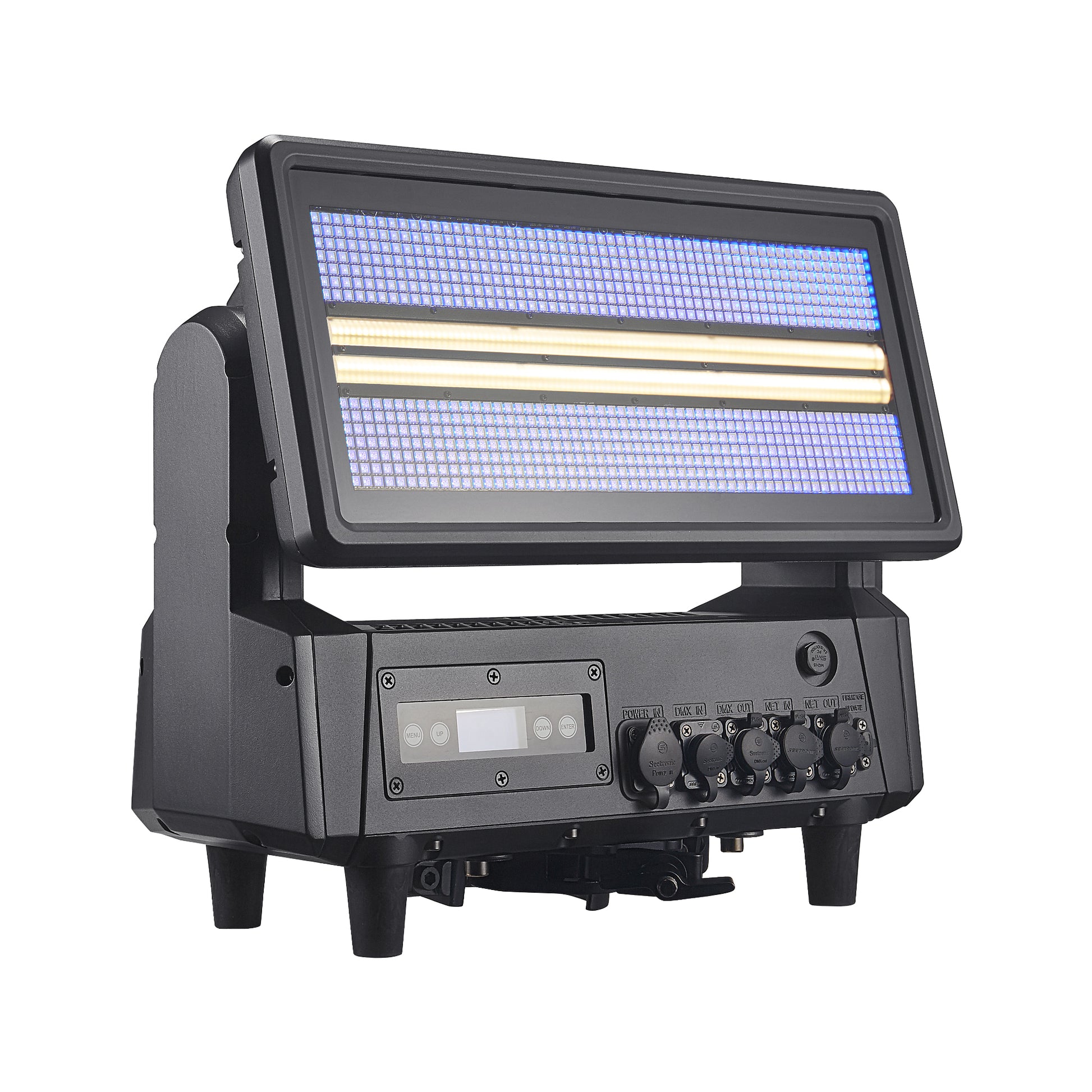

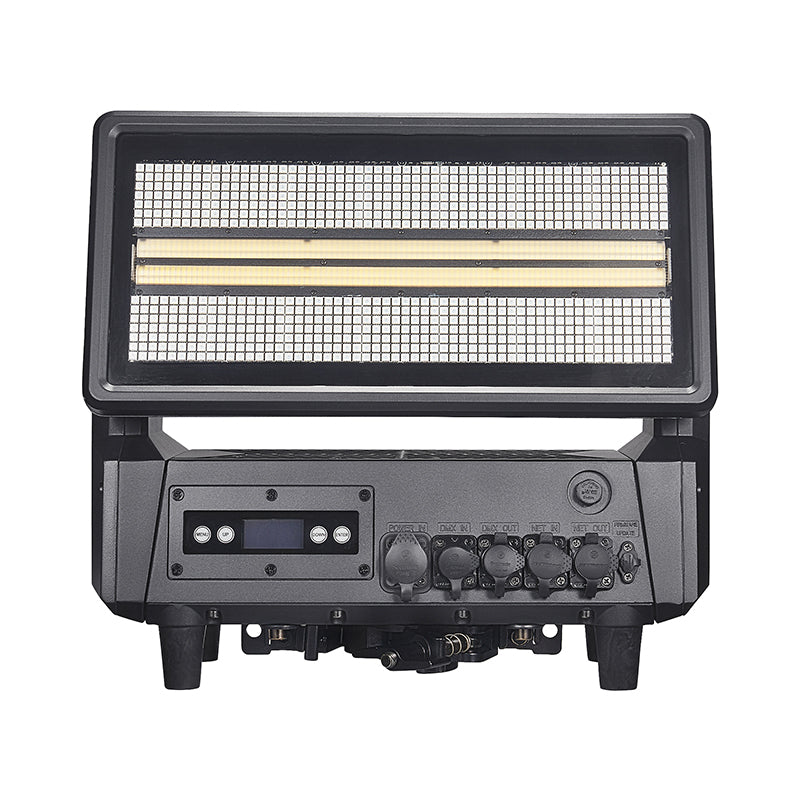

Strike M1400 PRO

TECHNICAL PARAMETERS

Light source

Input voltage: AC90-240V 50HZ/60HZ

Whole lamp power: 1400W

Light source specifications: 784 RGB 0.5W ultra bright light sources, 392 white

light 3W ultra bright light sources

Rated lifespan: 50000 hours

Optical

Color: Red, green, blue, white, multiple colors with infinite variations

Lamp bead control: RGB14 segment control, white light 28 segment control

Electronic strobe, 0.3-25 times/second

Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting

Controls

Control mode: 24CH (simplified) 8CH/11CH/13CH/24CH/30CH/74CH/97CH

(standard) 7 channel control modes, standard DMX512 protocol, RDM protocol

Power connection method: Power input/output, maximum connection quantity @ 2 units 230V, 1 unit 120V

Signal connection method: DMX512 input/output, maximum connection quantity of 30 3-core units

Support network protocol Artnet

Display function: LCD touch screen, bilingual menu in Chinese and English, sensor fault display, temperature display

Body

Vertical direction: 220 ° (16 bit precision scanning)

The Y-axis is driven by a high-speed silent 60 three-phase thickened motor, which makes the operation faster and smoother. In case of misoperation, it can automatically return to its original position and the vertical speed can be adjusted;

Y-axis rotation function and reverse function; Using optical electromagnetic coding for high-precision positioning

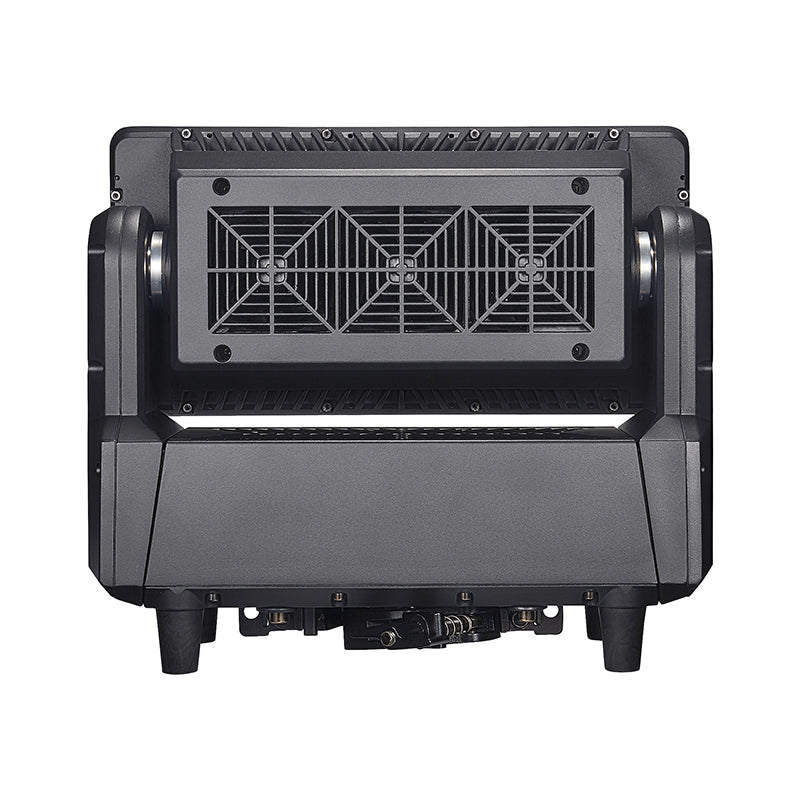

Cooling system: High conductivity lightweight aluminum radiator is used, and th intelligent monitoring technology of the fan automatically adjusts the fan speed according to the temperature of the lamp. The built-in overheat protection intelligent system/intelligent temperature and noise balance module

Protection level: IP65

Dimensions

Lamp packaging: waterproof and shockproof aviation box or cardboard box

Gross weight: 17KG

Net weight: 15KG Product size: 404 * 202 * 350MM

Flight case size(2pcs/case): 96*45*78cm

Flight case NW.: 31kg; GW. ：72kg
