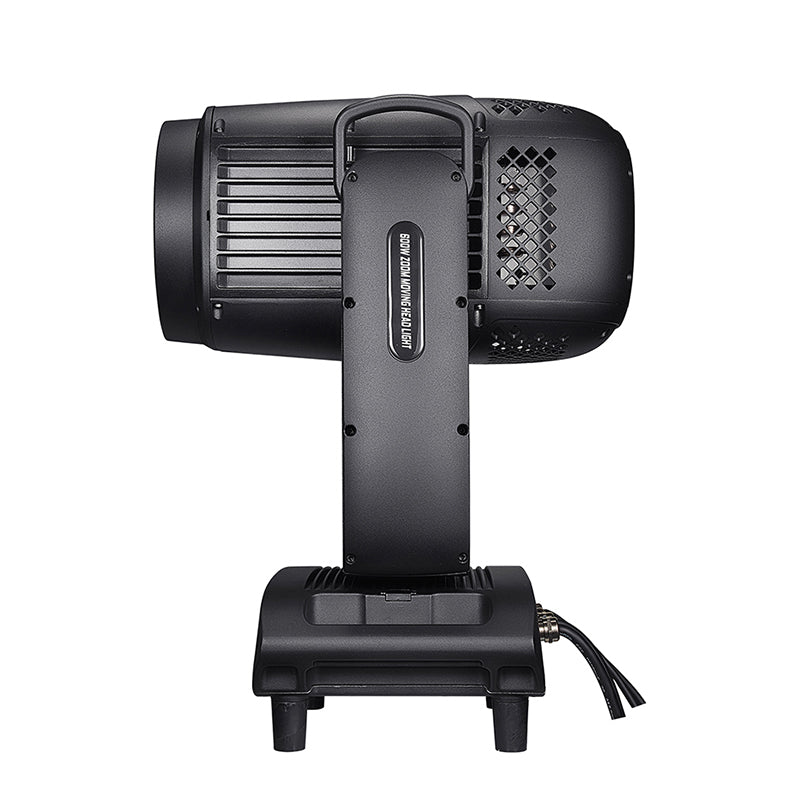

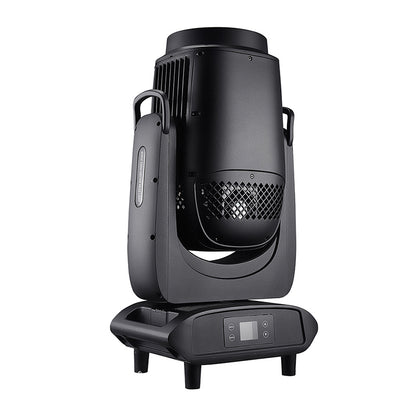

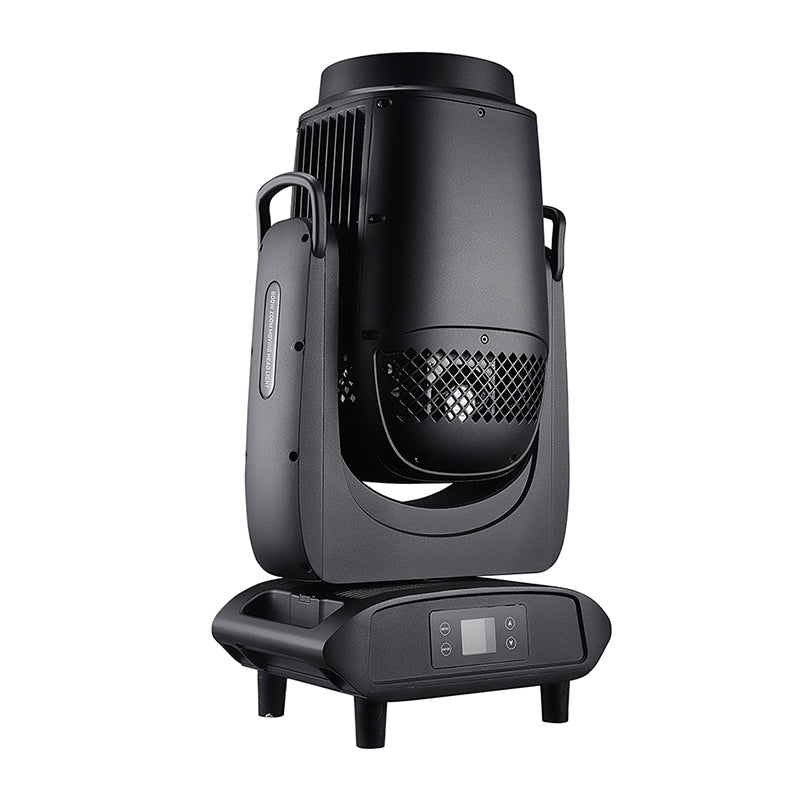

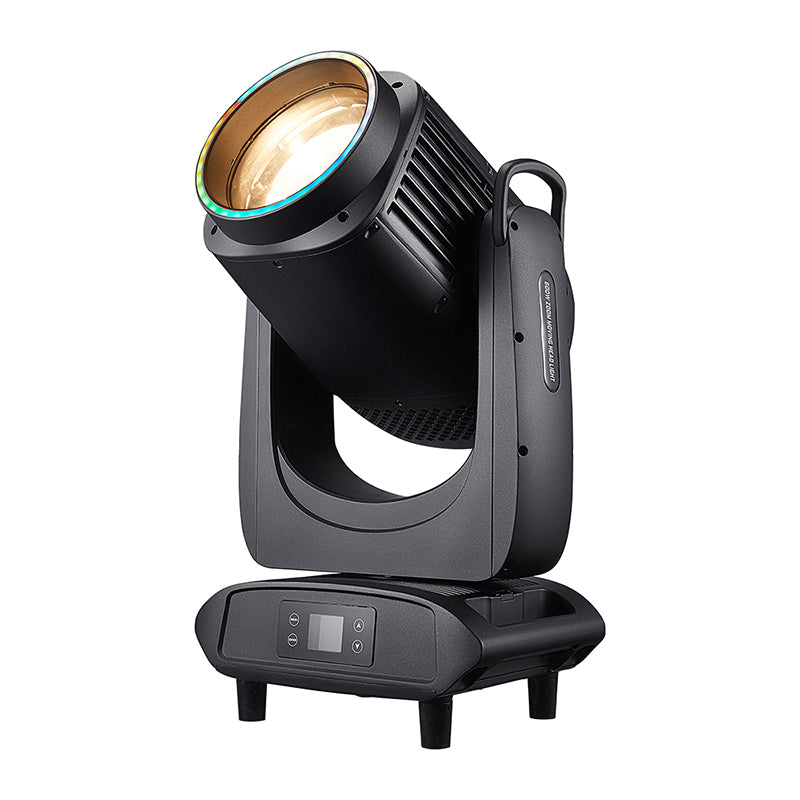

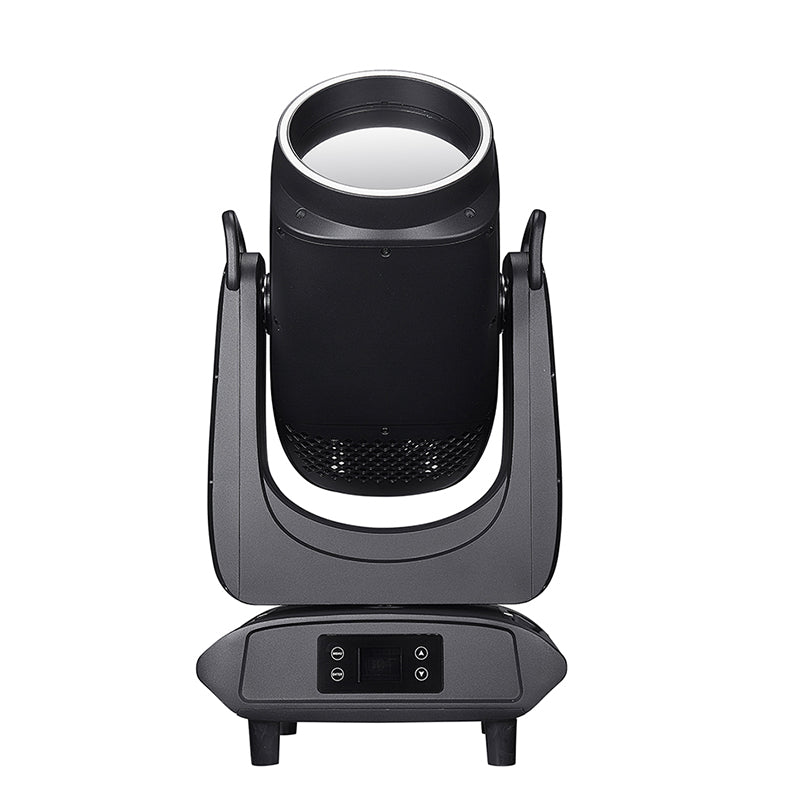

COB 600 ZOOM IP

TECHNICAL PARAMETERS

Light source

Input Voltage: AC100-240V, 50/60Hz

Power: 600/800W

Light Source: 1 x 600W LED

Light Source Lifespan: Average ≥50,000 hours

Optical

Color Temperature: 2800K-6800K

CRI: Ultra-high Color Rendering Index (CRI) ≥90

Focus Angle: 8°-50° linear focus

Controls

Control Functions: DMX/Master-Slave/Auto/Fade/RDM

Channel Mode: 13 channels

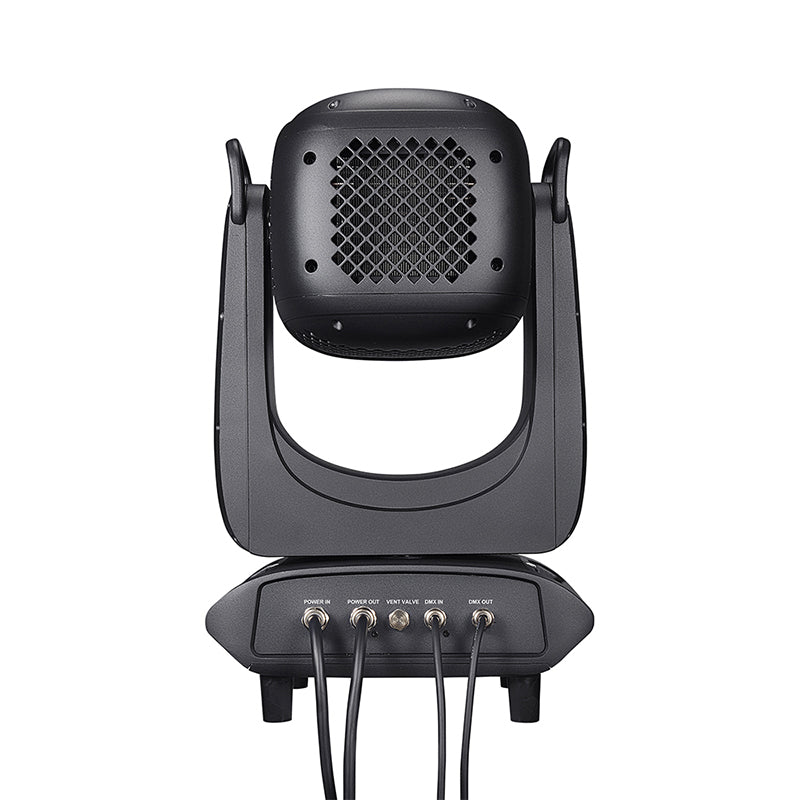

Power Interface: Available as waterproof single input or hand-in-hand waterproof input/output

Signal Interface: 3-pin XLR waterproof input/output

Effect

Color Wheel: 1 color wheel with 3 colors (blue + red + green); linear CTO color temperature adjustment: 2,800K-6,800K

Dimming: 0-100% linear dimming

Strobe: 1-25Hz/s, high-speed strobe effect

Construction

Horizontal/Tilt: 540° horizontal scanning angle, 270° vertical scanning angle, 16-bit scanning accuracy

Calibration: The X/Y axis motors are equipped with the latest magnetic rotary encoder sensor positioning system for more precise fixture positioning. The system features automatic error correction and signal feedback.

Heat dissipation design: Copper tube + fan heat dissipation structure and intelligent temperature monitoring technology automatically adjust the heat dissipation system to effectively control the lamp temperature.

Ingress Protection: IP65

Weight&Dimension

Lamp Dimensions: 329*228*603mm

Net Weight: 17.5KG

Packaging Dimensions: 645*490*420mm

Gross Weight: 21.5KG
