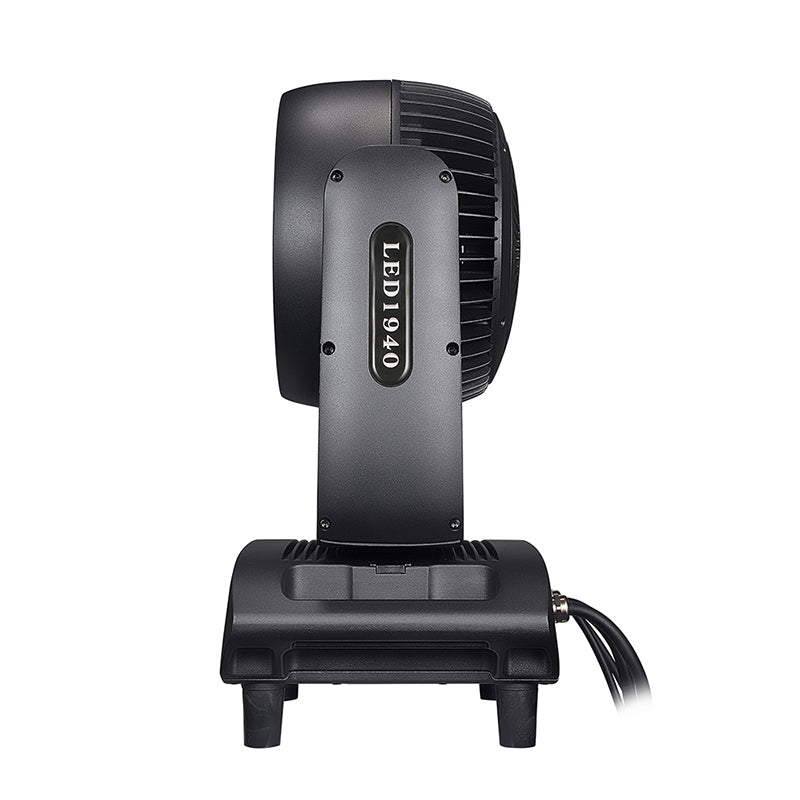

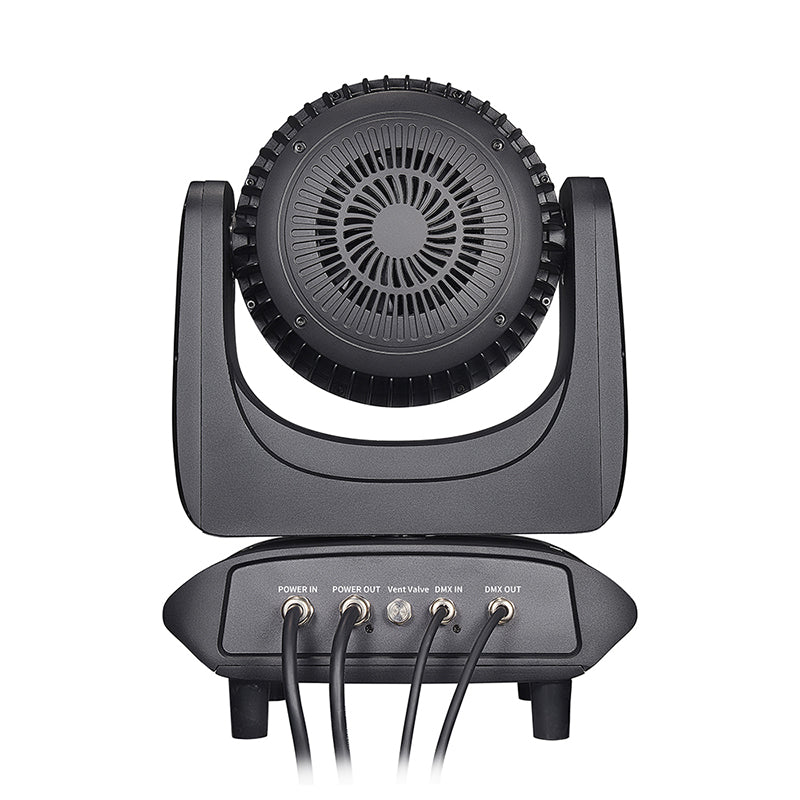

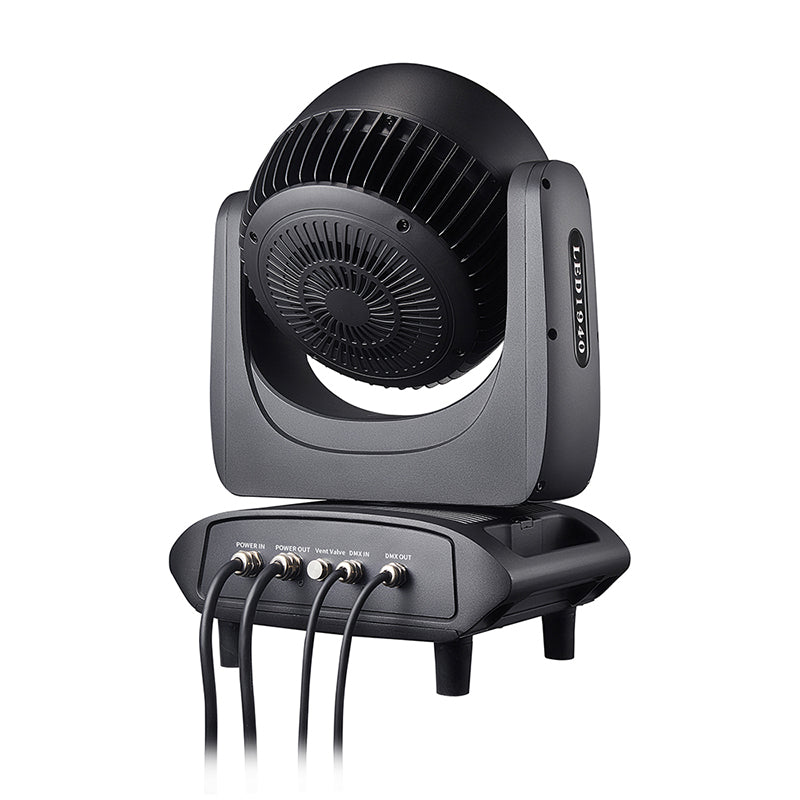

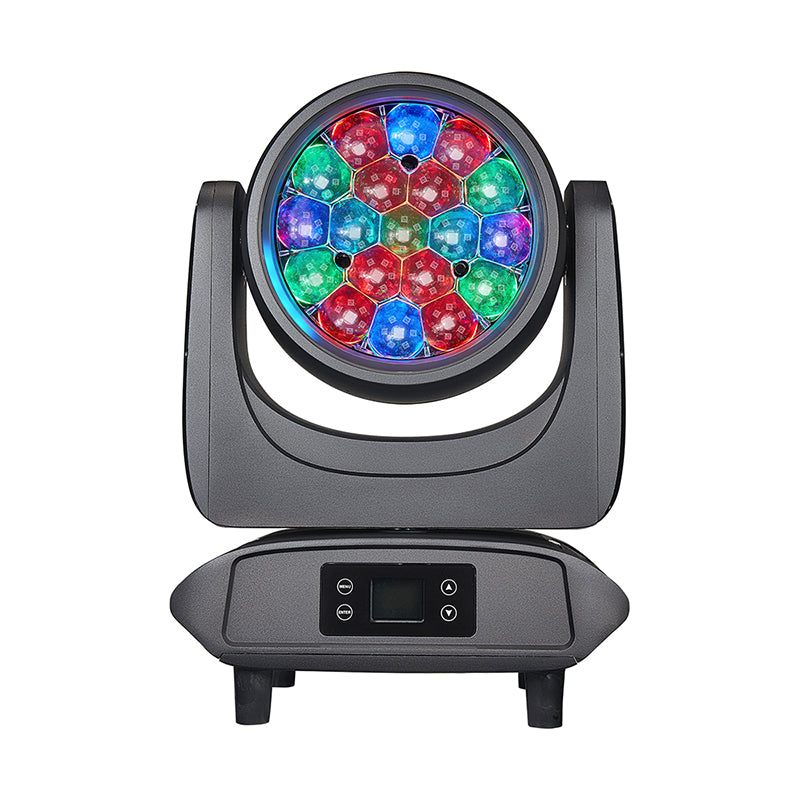

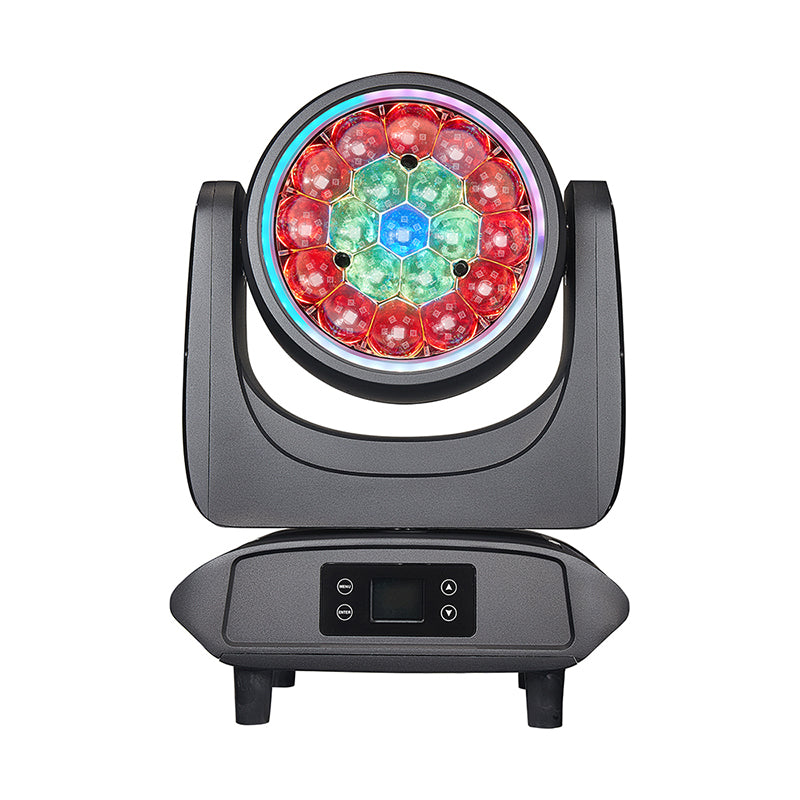

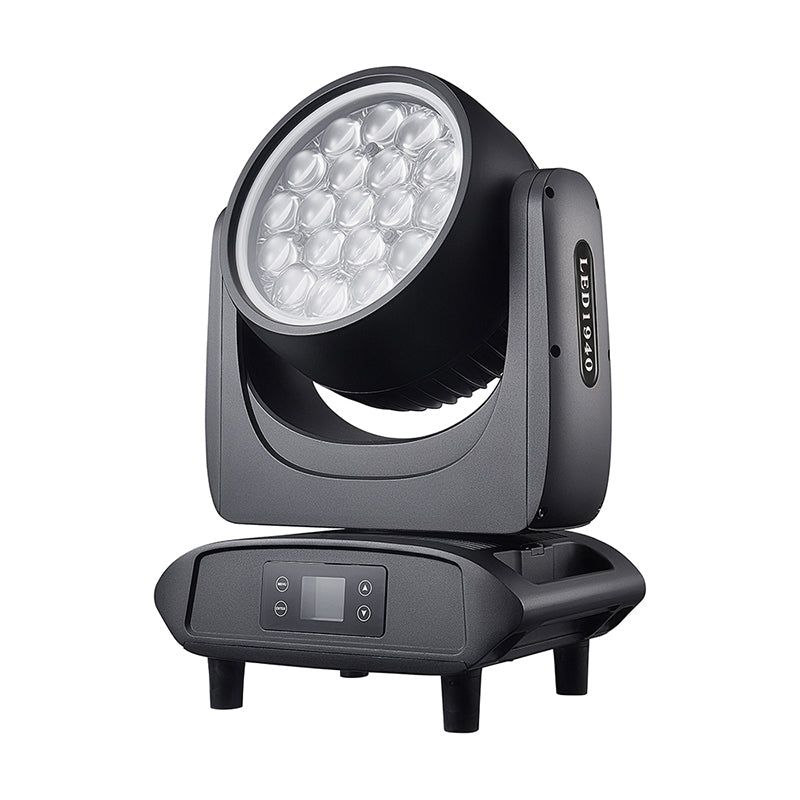

MT Wash 1940 IP

TECHNICAL PARAMETERS

Light source

Voltage: AC 90-240V 50-60HZ

Total power: 760W

Light source: 194-in-140W high-brightness LED chips

LED lifespan: ≥50,000 hours

Optical

Beam Angle: 4-60°

Optical System: High-definition optical system combined with high-temperature resistant glass light guide column and fast, smooth electric zoom system, providing uniform and soft color mixing effects;

Controls

Control Channels: Built-in 7 channel modes: 29CH/17CH/32CH/37CH/46CH/94CH/379;

Control Methods: DMX512, RDM, master/slave, voice control or automatic operation;

Display System: 1.8-inch TFT color LCD screen with touch buttons, 4 function buttons, 180° LCD screen rotation, 60-second automatic screen-off design, DMX signal indicator, Chinese/English switching;

Effect

Linear Dimming: 0-linear dimming system, built-in 6 static and dynamic macro effects, adjustable speed;

High-Speed Strobe: 1-25 times/second high-speed LED dimming/strobe effect, adjustable speed, various preset/random strobe/dimming pulse strobe effects;

Construction

Exterior Material: National standard lightweight die-cast aluminum high-end material shell! Made entirely of plastic, suitable for use in harsh outdoor environments including rain, high altitudes, sandstorms, seaside locations, and extreme temperatures.

Waterproof Rating: Withstands 360° impact from massive waves, achieving a true IP65 waterproof rating.

Horizontal Scan: 540° (16-bit precise scan)

Vertical Scan: 270° (16-bit precise scan)

Maximum Number of Units Connected:

220V: Up to 4 units, requires 2.5 sq mm cable

220V: Up to 2 units, requires 2.5 sq mm cable

Weight&Dimension

Product Dimensions: 328*252*419mm

Net Weight: 14kg

Carton Packaging: 428*352*519cm

Gross Weight: 16.5kg
