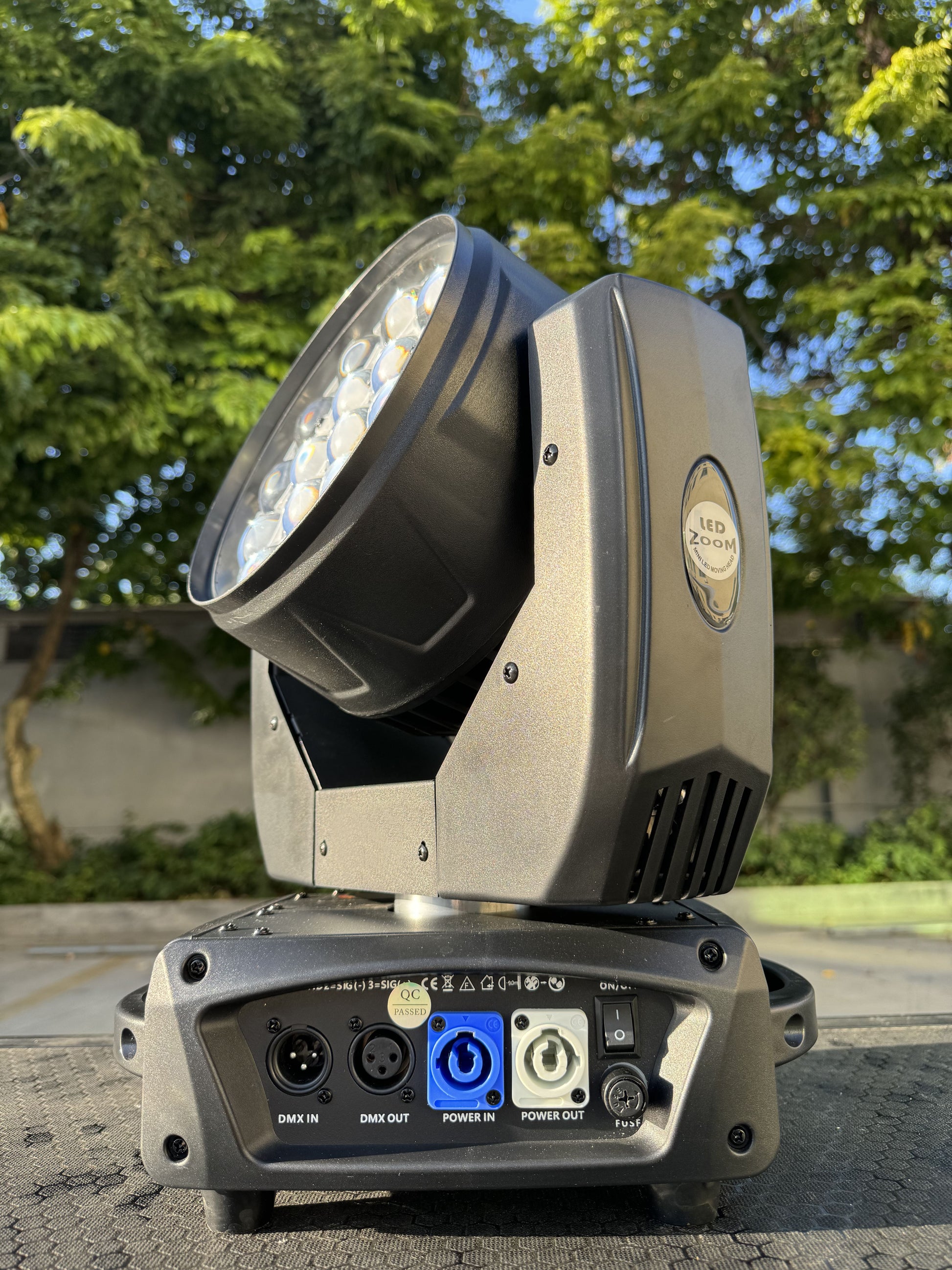

Aura W1915

TECHNICAL PARAMETERS

Light source

Rated voltage: AC100V ~ 240V 50/60Hz

Input power: 300W

LED: 19*15W 4-IN-1 RGBW LEDs

Approved life: 50000 hours

Optical

Color: red, green, blue and white multi-color

Focusing: 8 ° - 60 ° DMX linear focus, with automatic focus function

Color temperature control: built-in CTO DMX linear dimming

Controls

Control mode: 16 (streamlined) 24 (standard) 2 channel control mode, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3-core / optional 5-core), power cord hand-held socket

Display function: 1.77 inch LCD display, bilingual menu, sensor fault display, temperature display

Effect

Electronic strobe, 0.3 ~ 25 times / second, can choose synchronous, asynchronous random strobe

Dimming: electronic dimming 0 ~ 100% linear adjustment, with a gamma curve dimming frequency 1.2K ~ 25K adjustable, with macro command dimming linear stable and smooth without flicker, using a stable constant current driver and power supply, suitable for video shooting

Effect mode: (focus / beam)

Light bead circle control effect: strobe, running horse effect, with built-in program

Construction

Rotation angle: XY axis using high-speed silent motor drive, with high-precision imported Hall positioning  device, so that the operation of more accurate positioning, when the misstep can automatically return to the horizontal, vertical speed adjustable; XY axis rotation function and take the reverse function

Horizontal direction 540 ° (16 bit precision scanning), vertical direction 270 ° (16 bit precision scanning)

Hibernation function: the use of advanced technology to achieve remote hibernation function, when the lamps   and lanterns disconnect the signal automatically into the hibernation state, so that the lamps and lanterns more stable and safer

Heat dissipation system: using high conductivity light aluminum heat sink, fan intelligent monitoring technology according to the temperature of the lamps and lanterns automatically adjust the fan rotation, built-in overheating protection intelligent system / intelligent temperature and noise balance module Protection grade: IP20, optional rain cover protection grade up to IP44

Weight&Dimension

Net weight:7KG

Gross weight:8KG Product size: 29*21*37CM

Package size: 47*38*29.5CM (a load of one)

Features

1. screen automatic rotation function, the system can be based on the direction of gravity, automatically rotate the screen, no need to manually rotate! You can also turn off the automatic rotation function

2. One motherboard design, solve the problem of smoke oil, colored paper, etc., can be individually segment

control control light beads, strobe effect, built-in and other rich effects, the product built-in RDM remote console dial code upgrade function
