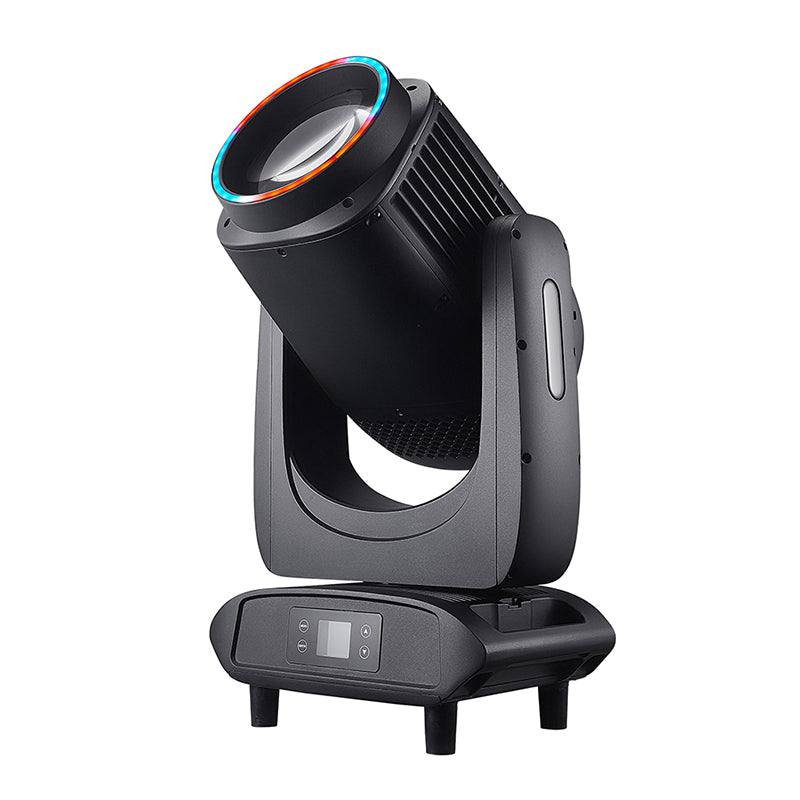

Mini BEAM 420 IP

TECHNICAL PARAMETERS

Light source

Voltage: Wide voltage range 110V-240V 50-60Hz

Power: 550W

Philips 420W+LED Ring

Optical

Beam Angle: 0-1.8°

Lens diameter: 165mm

Controls

Control Methods: DMX 512, RDM, self-propelled, master-slave self-propelled.

Display: LCD display adapts to various installation positions.

Latest motherboard programming: Supports RDM and built-in programs: Multiple built-in effects programs are available, including single-beam white slow swing, single-beam color-changing slow swing, and multi-beam color-changing slow swing.

Effect

Color: Color wheel: 13 + 1 + rainbow effect + fog function

Gobo: Gobo wheel: 13 fixed gobos + 1 white light

Focus: Electronic linear high-definition dynamic focus, using high-density glass optical lens

Linear dimming curve: 0%-100% linear dimming

Prism: 8 prisms or 8+16 prisms stacked and rotatable, with macro functionality.

Construction

XY Motor: Three-phase electric drive, powerful, fast, stable, and quiet.

Horizontal/Vertical: The waterproof lamp features a 540° horizontal or 270° vertical scanning speed, with fast and stable speed.

The lamp is equipped with an intelligent photoelectric reset correction system, automatically returning to its original position in the event of an accidental misoperation. It also features horizontal and vertical lock buttons for easier maintenance and transportation.

Weight&Dimension

Lamp Dimensions: 329*228*603mm

Net Weight: 19.8KG

Packing Dimensions: 64.5*49*42cm

Gross Weight: 24KG

Flight Case : 80*40*81cm(2in1)
