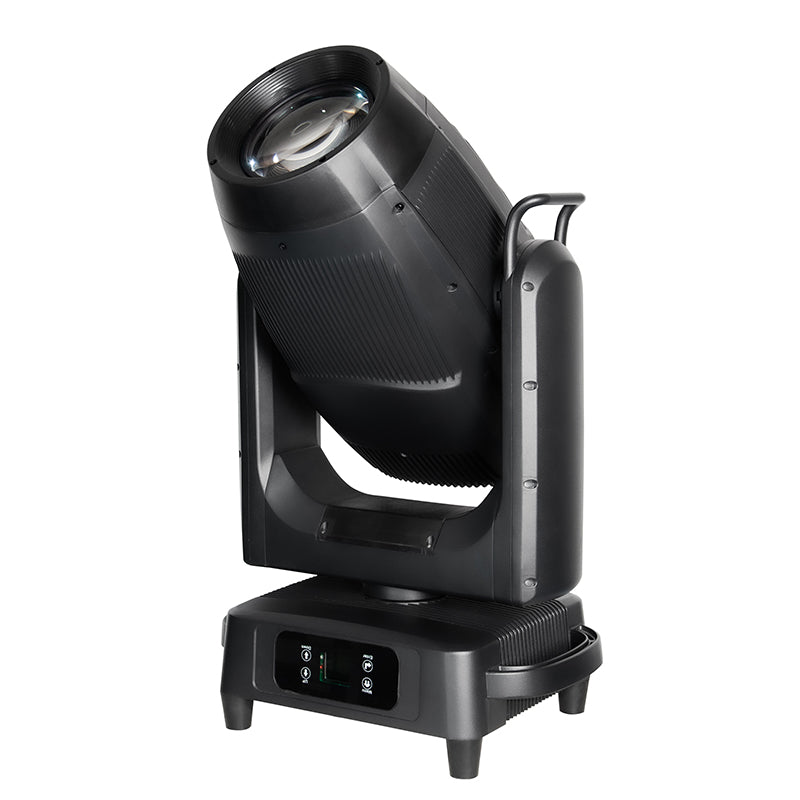

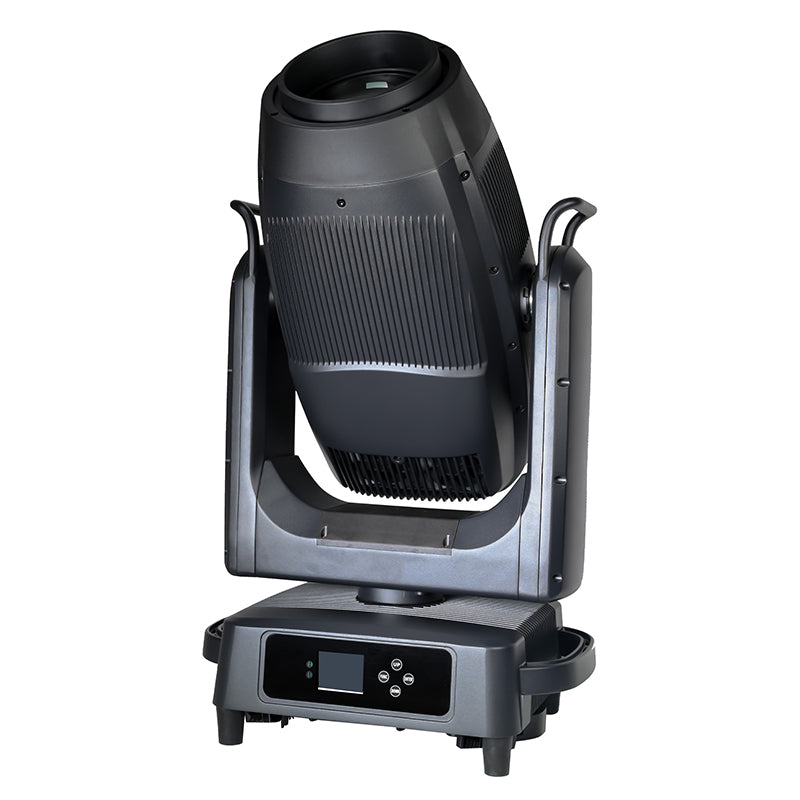

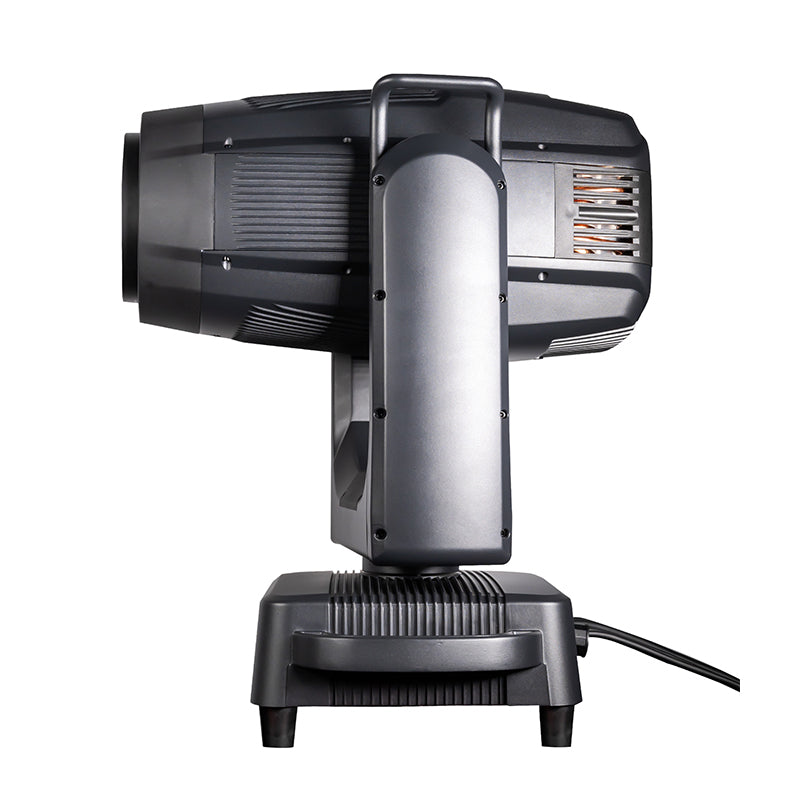

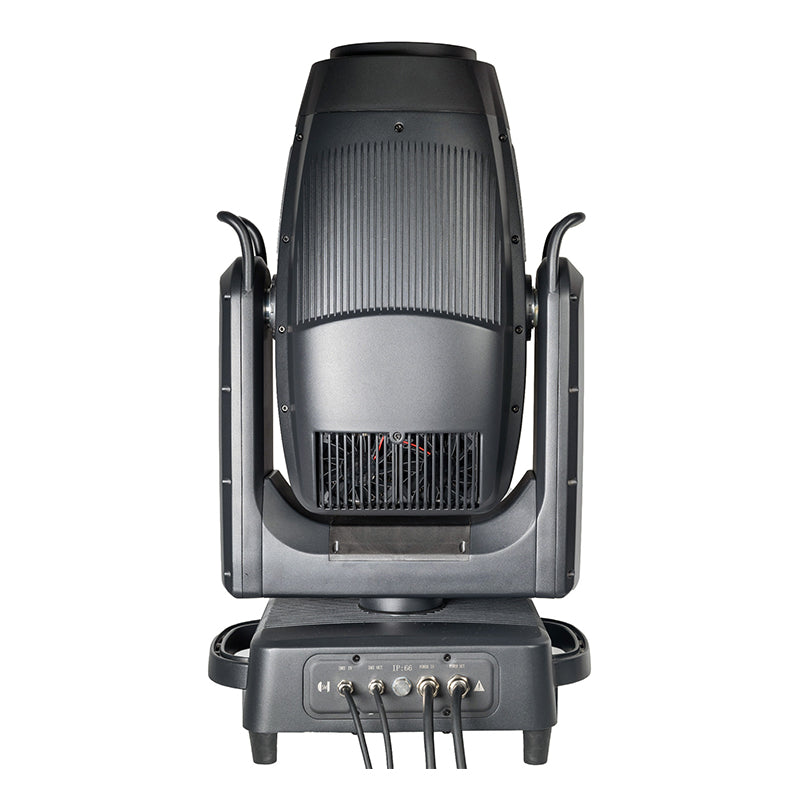

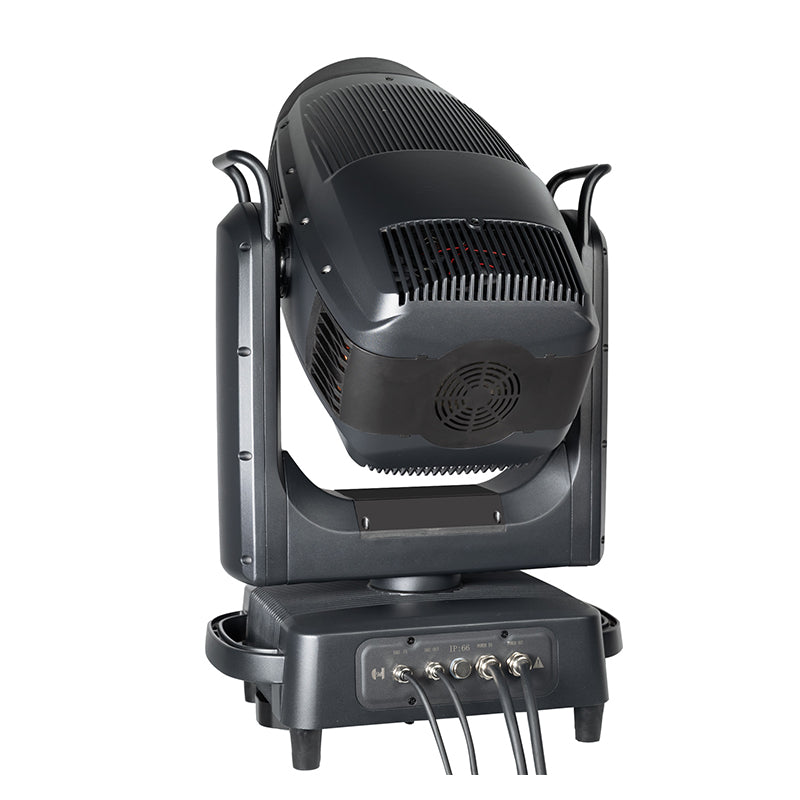

BSWF HP1000 IP

TECHNICAL PARAMETERS

Light source

Input voltage: AC100V-240V/ 50Hz-60HZ

Rated power: 1100W

Light source specification: 880W LED module

Light source life: 20000 hours

Optical

Light source color temperature: 7200K

Lens diameter：138mm

Color rendering index: adjustable display mode, standard mode Ra > 70, high display mode > 90

Beam angle: electron linear zoom 4-50 degrees

Controls

Channel mode: 34/39CH

Input voltage: AC100V-240V /50Hz-60Hz

Control protocol: Standard DMX512 protocol

Signal interface: 3-core XLR signal input/output, optional 5-core

Display mode: LCD touch screen, can reverse 180° display

Software upgrade: software can be upgraded via DMX signal cable

Effect

Color mixing system: Independent CMY color mixing system

Color temperature adjustment: CTO color temperature correction (2500-6500K)

Color plate: 6 colors+white light

Fixed gobo : 4 fixed gobos, which can change speed and shake

Rotating gobo: 7 optional gobos+white light(pluggable), variable speed jitter and two-way rotation

Effect tray: Super dazzling simulation of dynamic flames, gurgling water and other dynamic effects

Prism: 3 facet prisms, can be independently bidirectional rotation

Cutting system: 4 independent cutting pieces, each piece can be individually closed light, can be rotated 90°

Dimming: 0-100% linear adjustment

Strobe: 0-25Hz fast electronic stroboscopic

Frost: 1 independent atomizer,0-100% linear atomization, light spot natural soft

Construction

Pan/Tilt: 540°/270°, automatic return and 16Bit precision fine-tuning

Energy saving sleep: Automatically enters the sleep state when the signal is disconnected, which is safe and energy saving

Cooling system: efficient cooling system, intelligent speed fan, built-in temperature sensor, automatic cooling system

Protection grade: IP66

Weight&Dimension

Net weight: 28KG

Product size: 41cm*27.7*66CM
