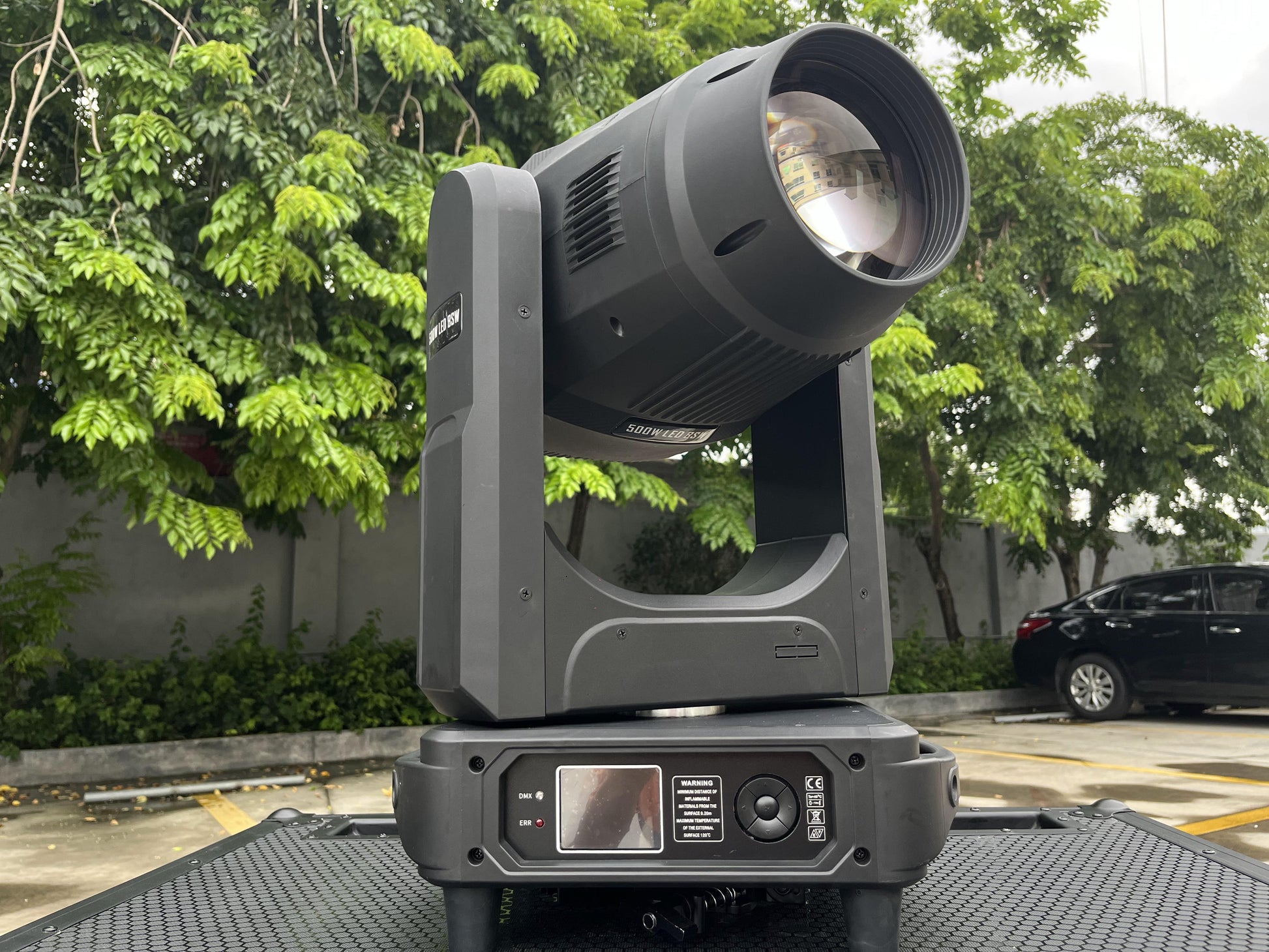

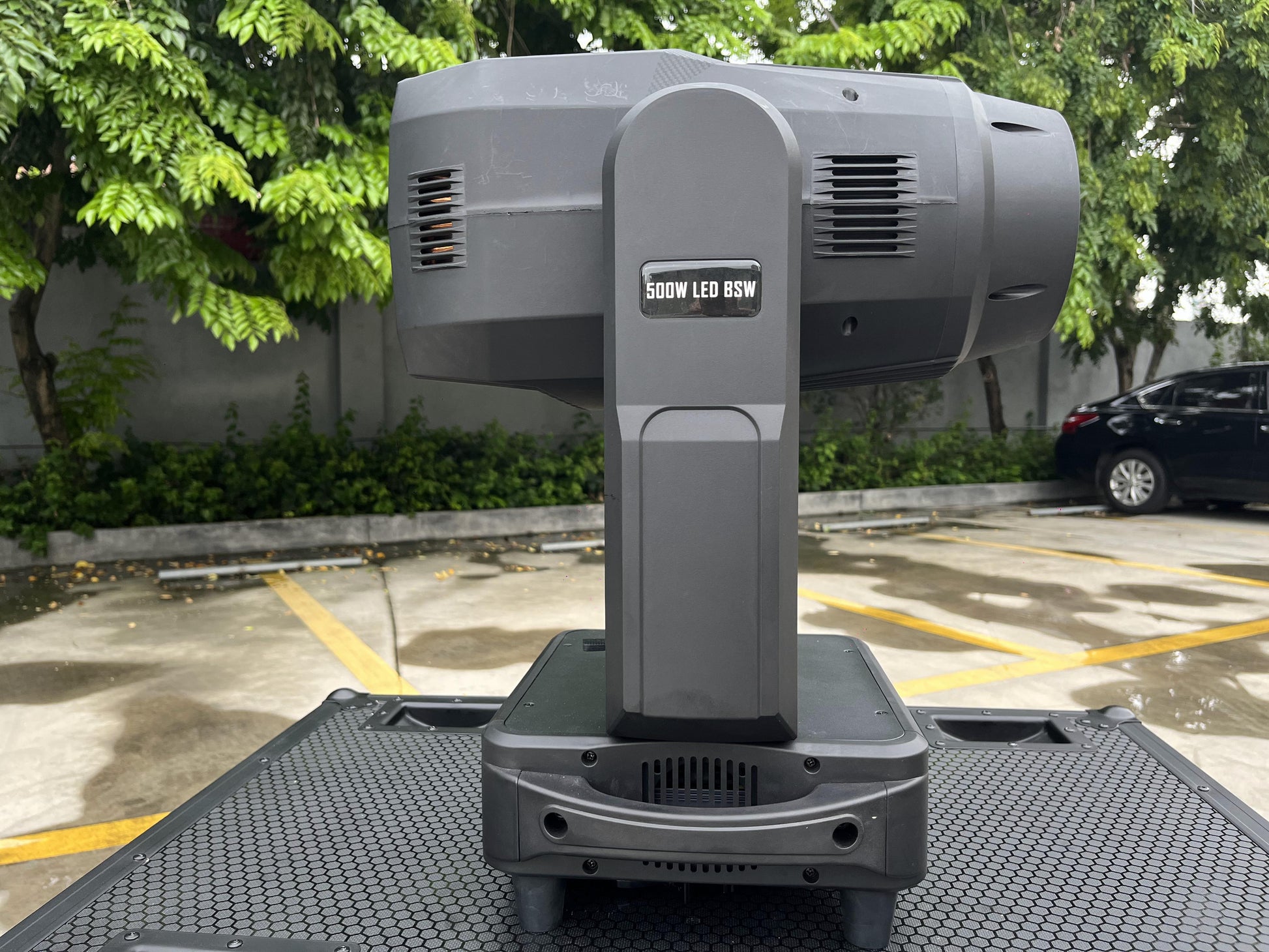

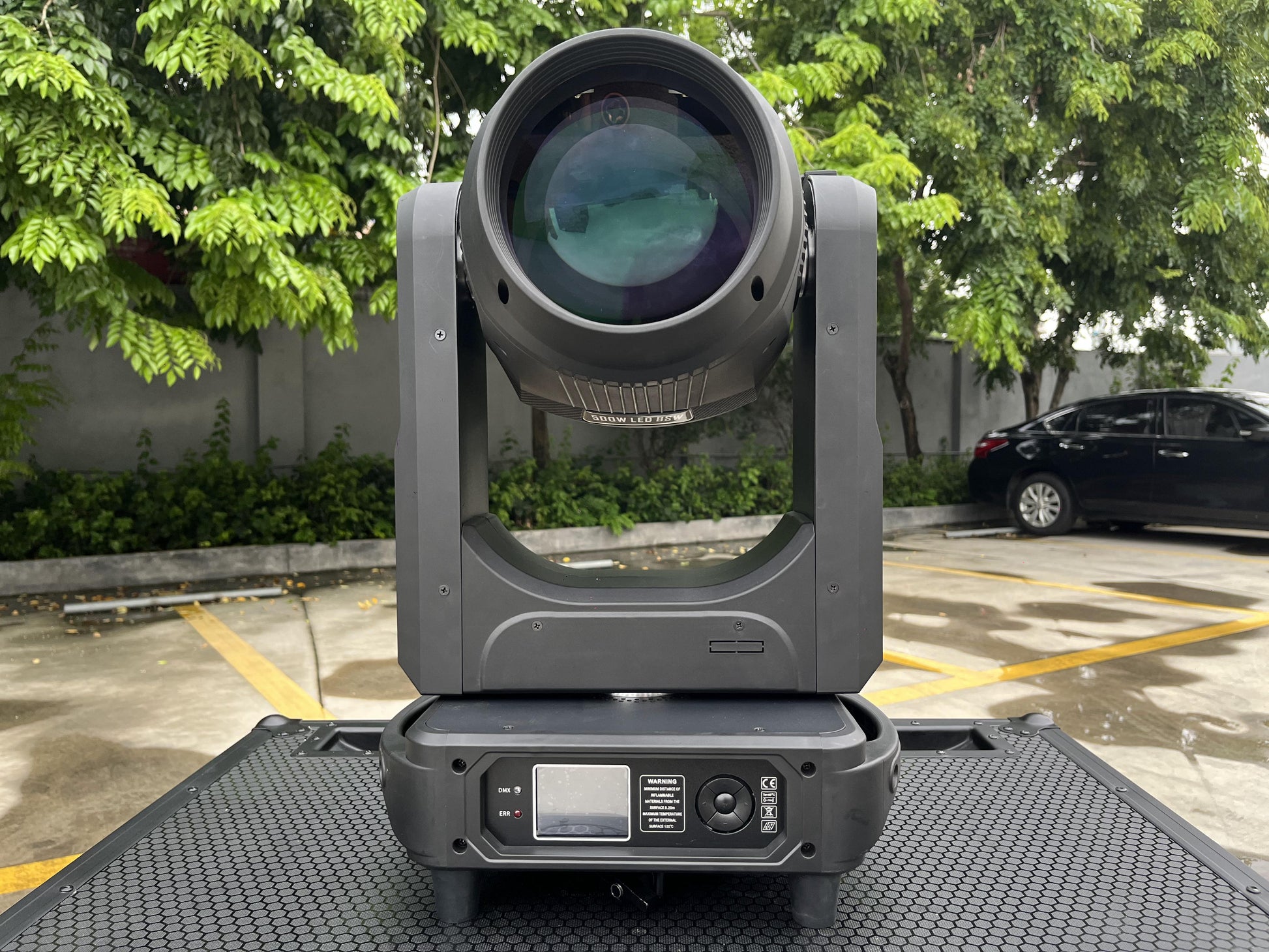

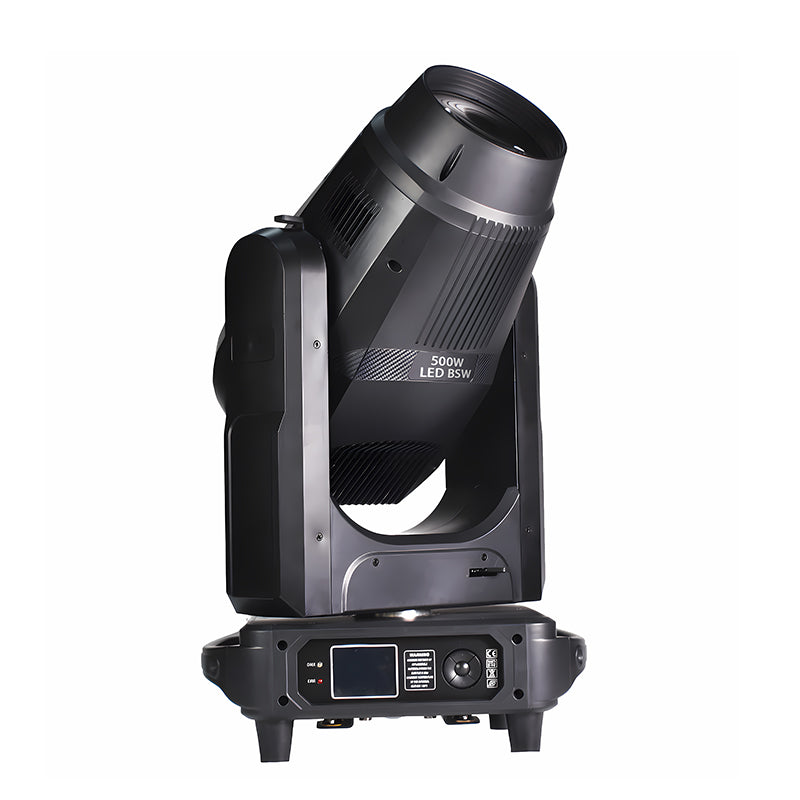

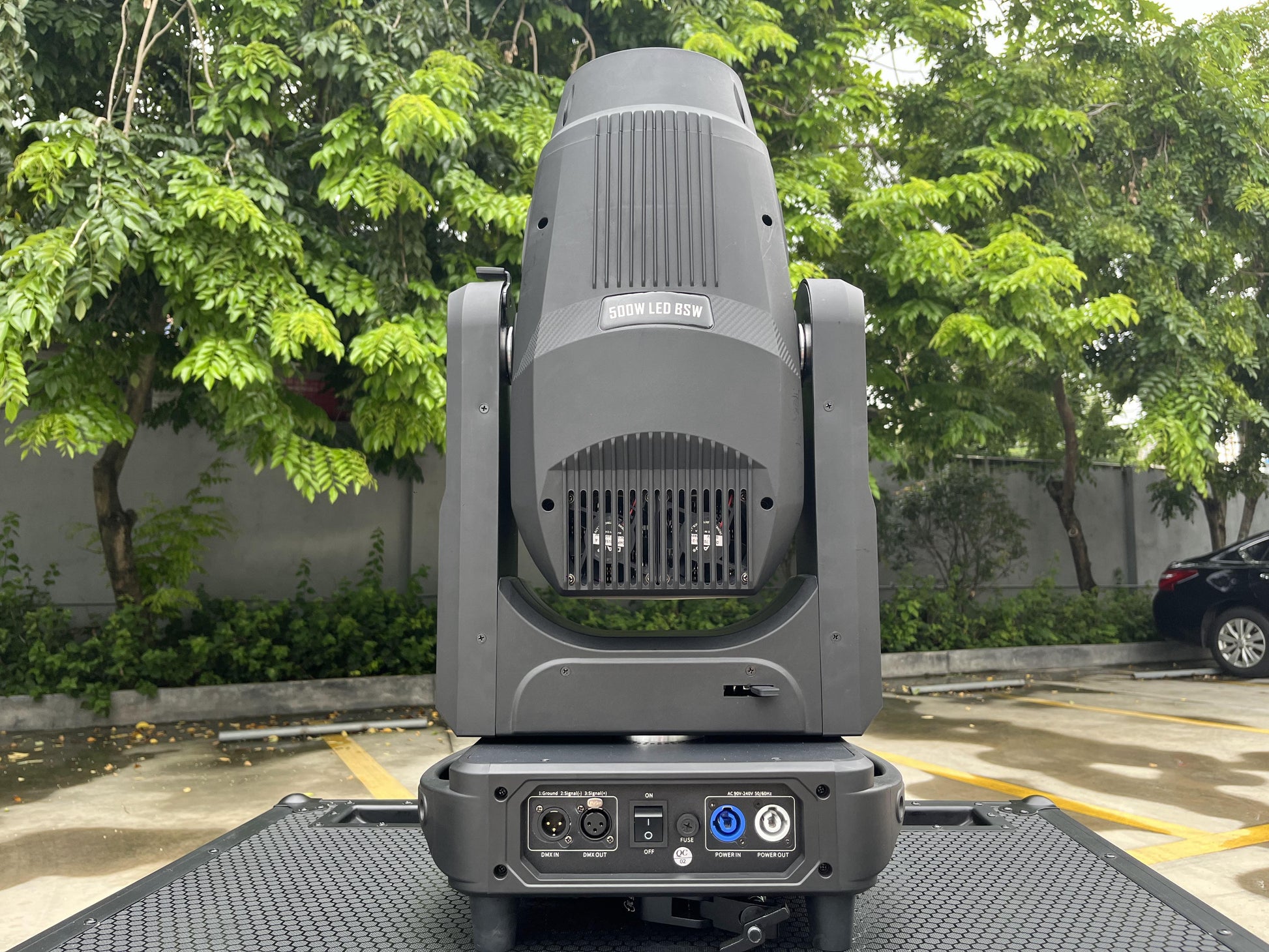

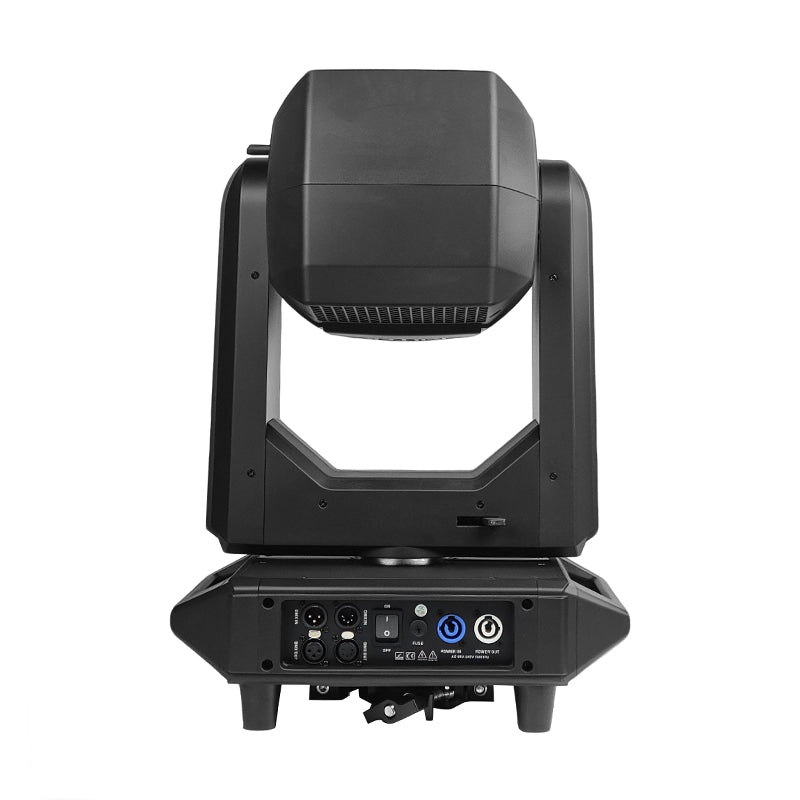

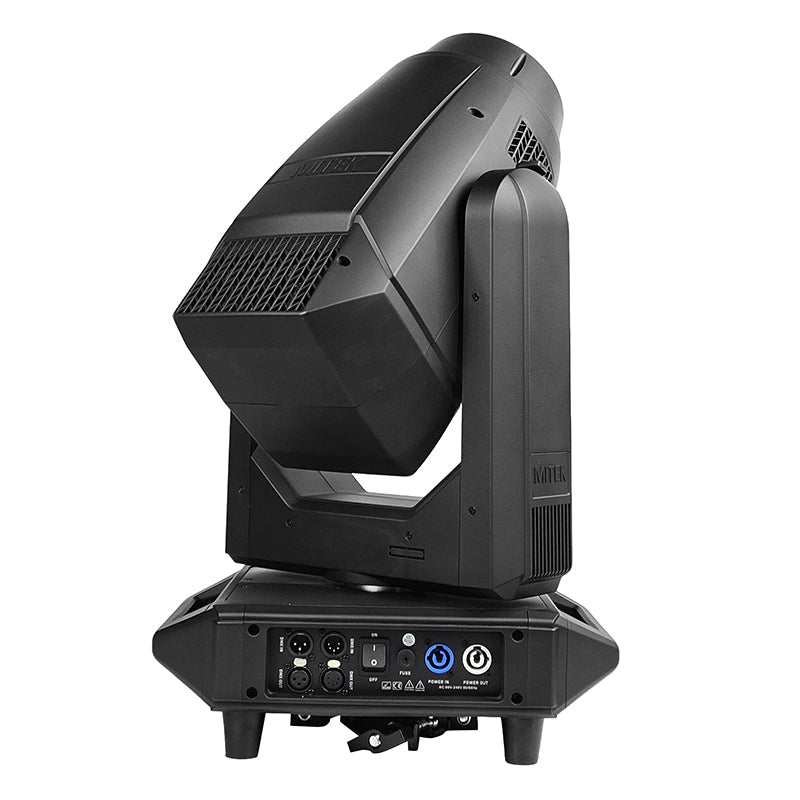

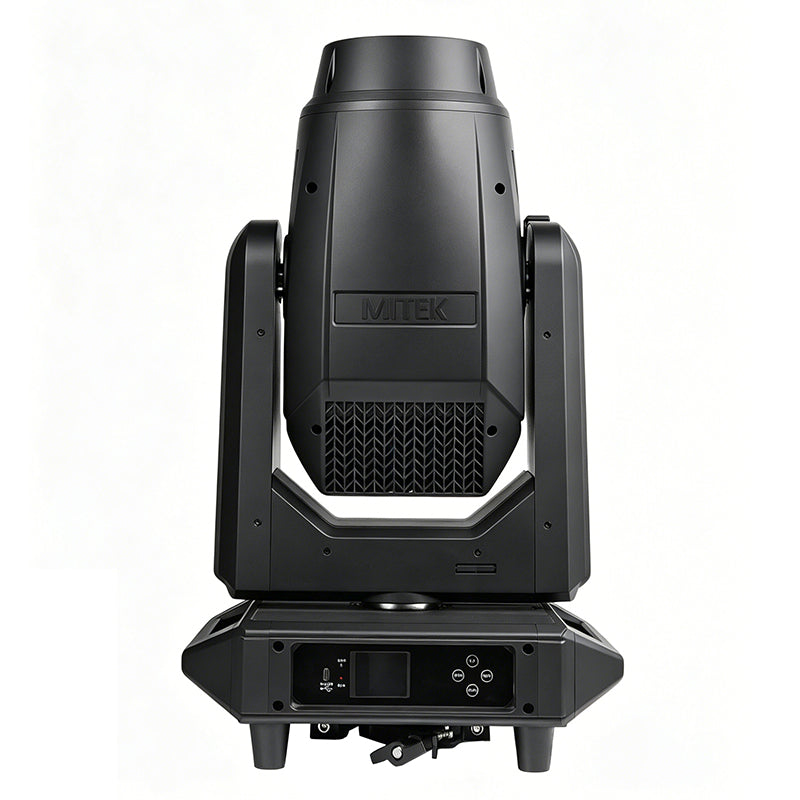

ALED BSW 500 CMY

Technical Parameters

Input voltage: AC110V-240V/50-60HZ

Light source specification: 450W

Light source life: 20000 hours

Rated power: 600W

Channel mode: 23 channels

Horizontal scan: 540 degrees (16bit precision scan) electronic error correction

Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction

Dimming system: 0-100% linear adjustment

Focusing system: linear adjustment from 4 meters to 50 meters

Zoom system: 1 independent zoom effect, soft and natural light spot

Magnification angle: 4-50 degrees

High-speed strobe: 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function

Color: 8 colors + white light. Color half-color function

Color mixing system: linear CMY+CTO color mixing system.

Fixed patterns: 11 fixed patterns + white light

Rotating pattern: 7 glass patterns, each glass pattern can be independently forward and reverse

Prism system: standard single 6 facet prism and 8 facet prism, each prism can be independently

forward and reverse

Macro function: console reset function, self-propelled mode, master-slave mode

Display mode: LCD display, key + touch dual operation mode

Control signal: International standard DMX512. With RDM function, online software upgrade is

available, dial address code

Cooling method: Adopt axial fan to enhance cooling

Safety device: with electronic temperature control overheating protection, electronic temperature

control automatic power-off protection when the overheating system fails

Appearance material: high temperature resistant plastic

Working environment: -20 degrees - 40 degrees

Protection level: IP20

Product net weight: 23KG

Product size: 38*27*65CM (L*W*H)
