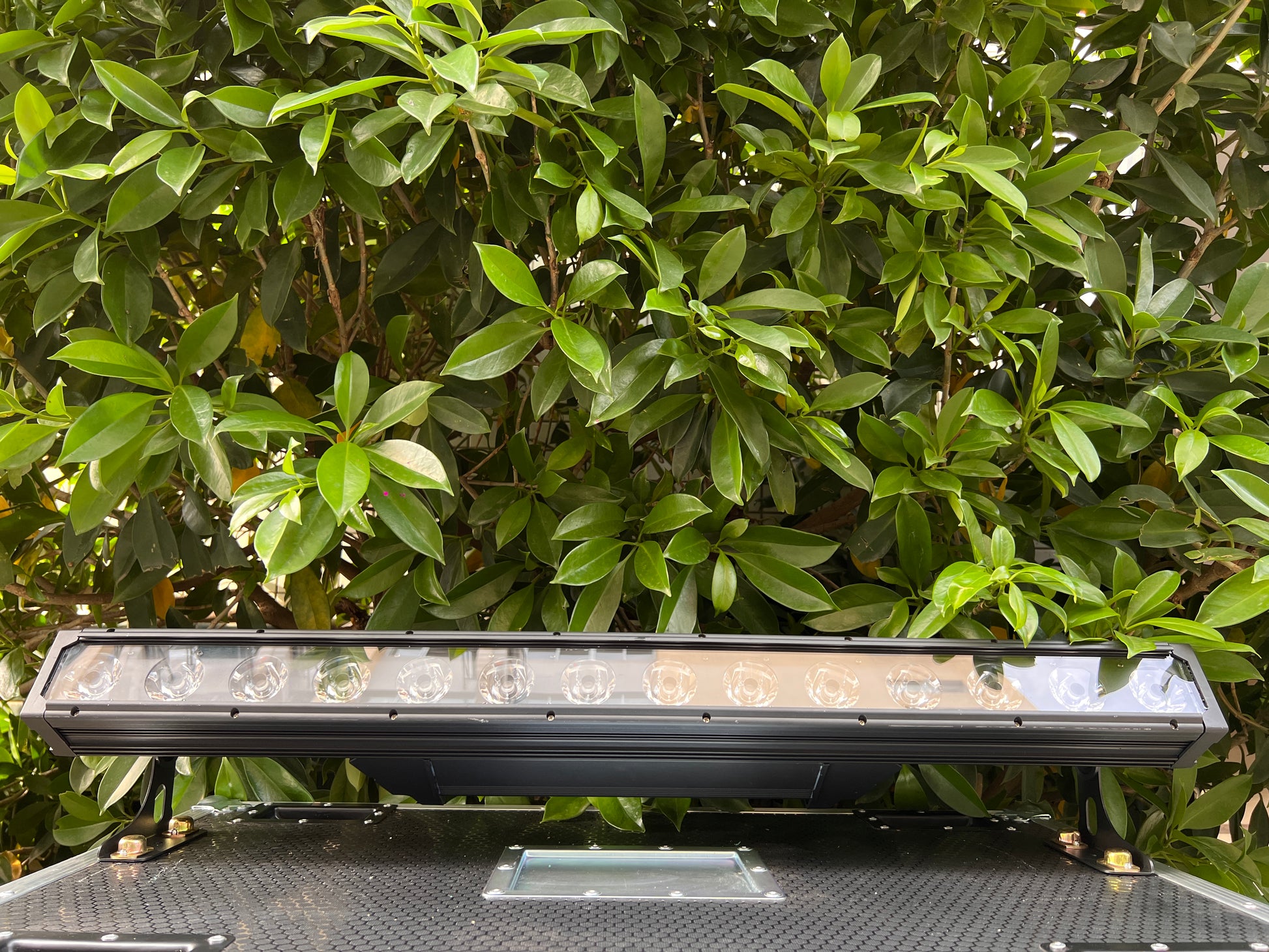

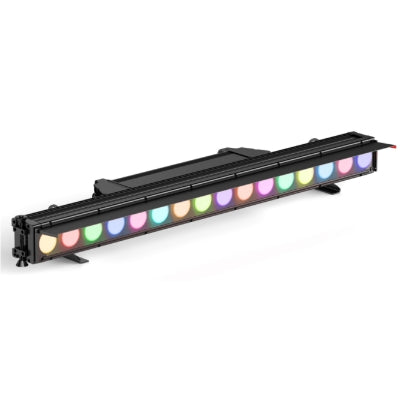

1440 Wall washer IP

TECHNICAL PARAMETERS

Light source

Input voltage：AC 100V/120V/200V/220V /230V/240V  50/60Hz

Power ：600W @220V

LED light source：14 PCS  40W RGBW

Working lifetime：50000h

Optical

Dimmer ：0-100% linear dimming

Strobe ：Electric strobe，0.3-20pcs/sec ,  Max 20 Hz

Controls

International standard DMX 512signal，3 Pin (5 Pin) DMX512 interface  RDM

Wireless ：2.4 GHz W-DMX™ (optional)

3  channel modes

Master-slave

Stand-alone mode

Self-test mode

Construction

Adjustable horizontal and vertical speed

Display fixture using time

Display software version number

Modular structure for easy maintenance

Speed-regulating radiator

High-strength casting aluminum alloy, IP65 black shell（white optional）

Working temperature：-20°C～40°C

Weight&Dimension

Produce size：1000 x 88 x 181cm

Weight：9.2 Kg
