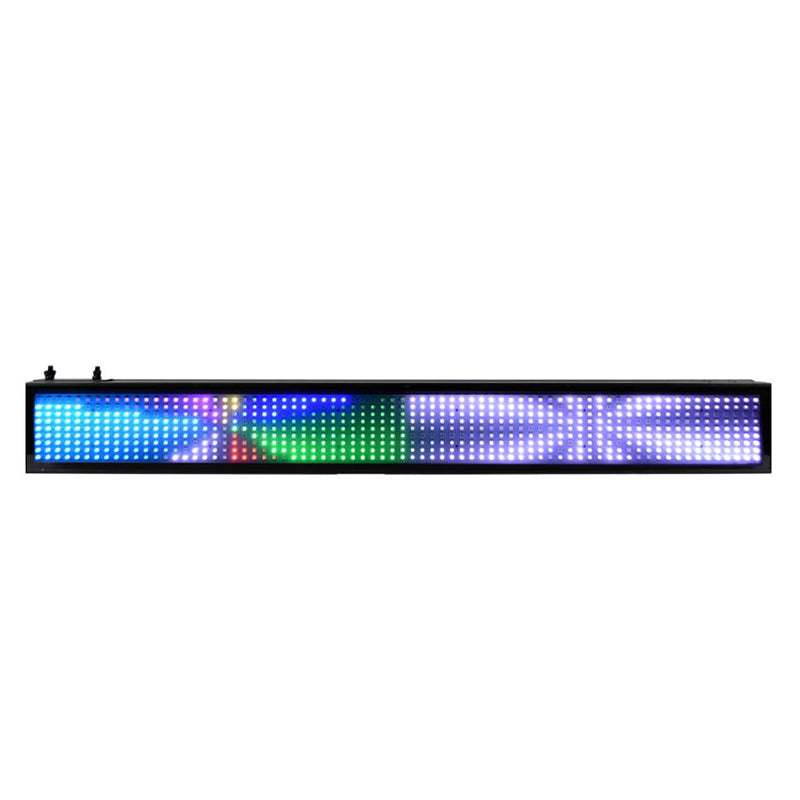

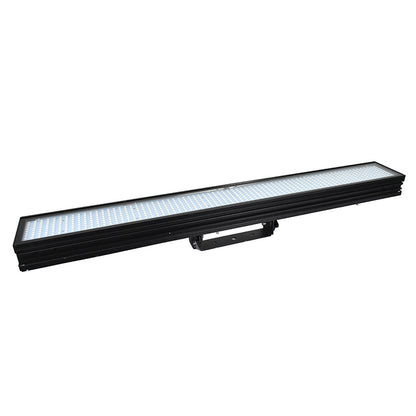

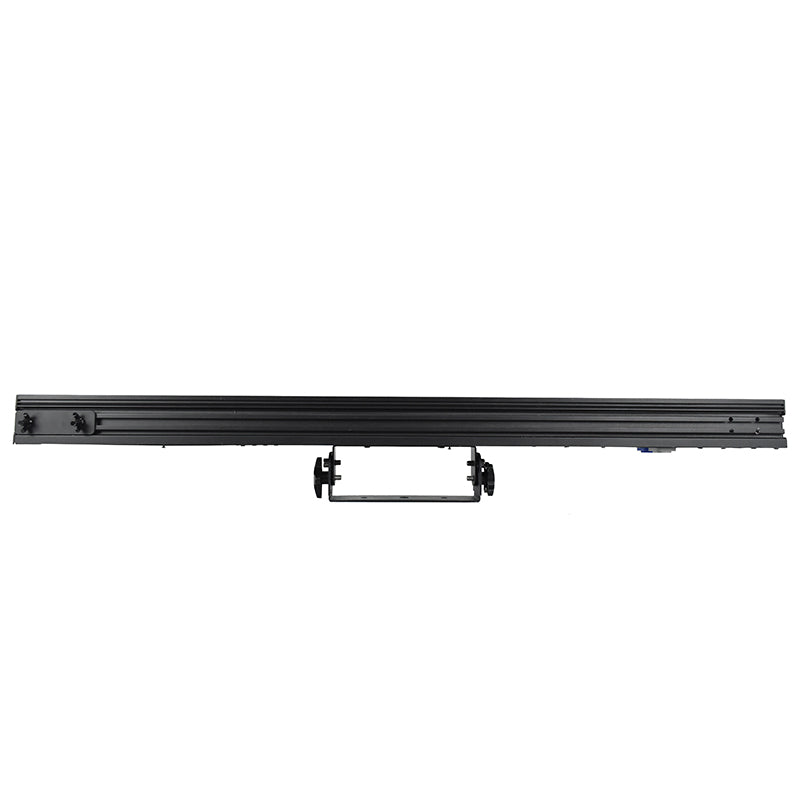

S400/S1000 Pixel Bar

Technical Parameters

Input Power: 100V-240V AC，50/60Hz

Power Consumption: 500W@220V

Strobe：High brightness 3W White LEDs*48Pcs/128Pcs

Background：RGB 3in1 LEDs*96Pcs/292Pcs

Lifespan：50000 Hrs

16 Sections control @Strobe Tube

16 Sections control @Background

Adjustable-speed bi-directions rainbow effect+water wave effect

Dimmer: 0-100% Linear adjust

Strobe: 0.3-20 times/second 20HZ

DMX 512, 3Pin(5Pin) in+out with RMD

Simple 4CH, Standard 10CH, Extended 74CH

Mater/Slave, Stand-alone, Auto run mode

Display the used hours/Version NO.

Building Block for easy maintaining

Adjustable-speed fans for cooling

IP rate: IP20

Working environment: -20°C～40°C

Weight: 3.6KG/6.7KG

Size(mm)：415x122x100/805x122x100
