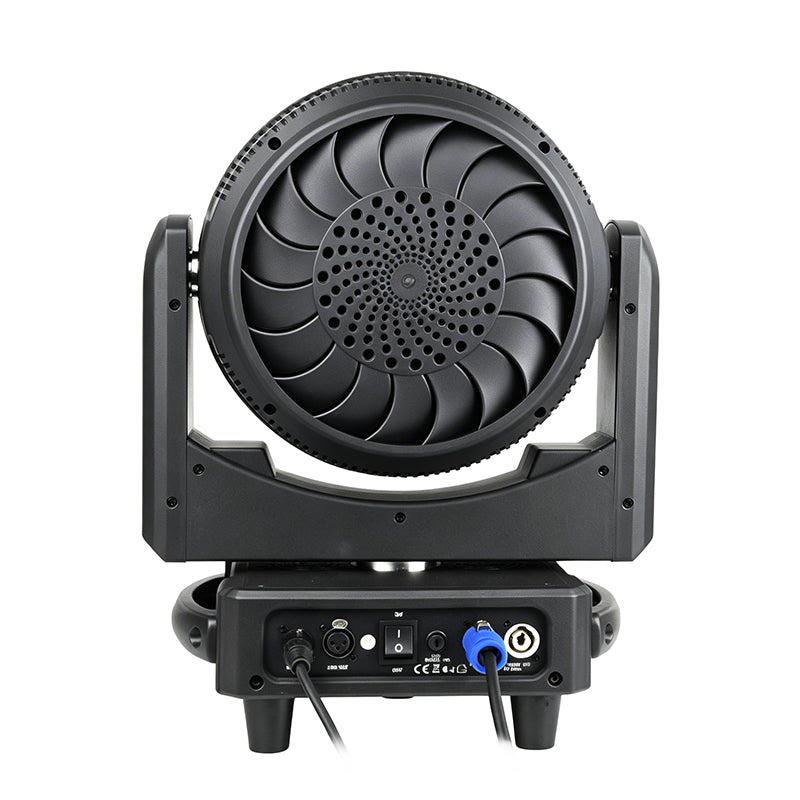

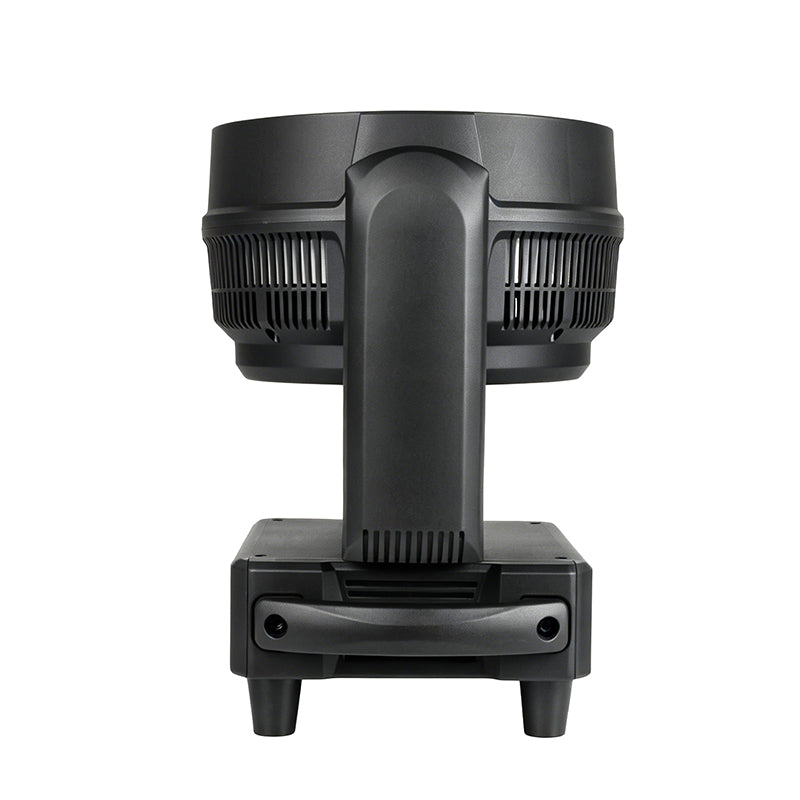

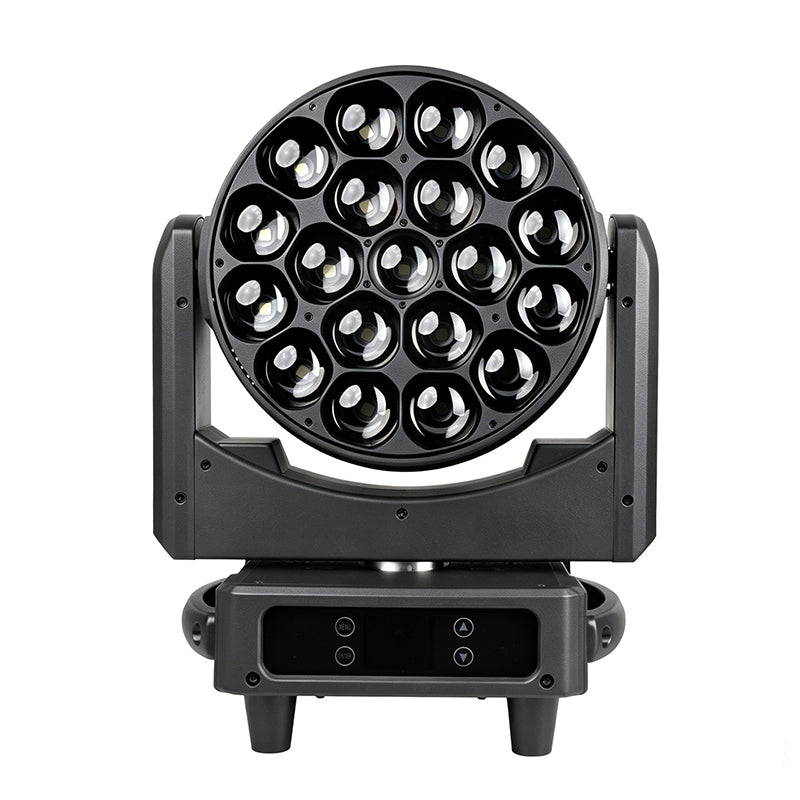

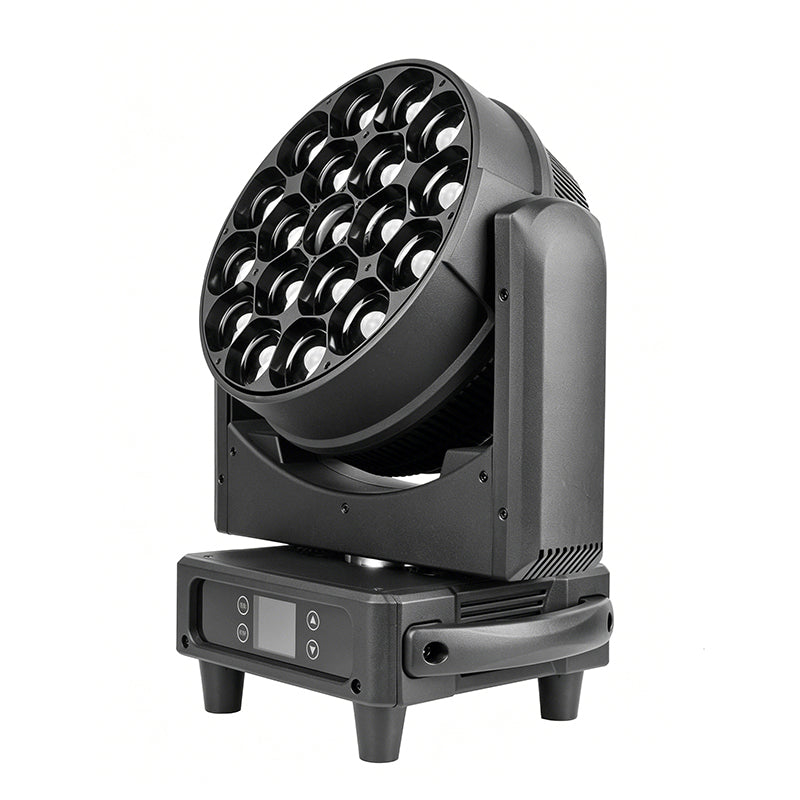

MT Wash 1940

TECHNICAL PARAMETERS

Light source

Input voltage range:110-240V~ 50/60Hz

Power consumption:760W

Light Source:19x40W RGBW LED

Optical

Color Temperature Output:7000K

Beam Angle:6°-60°

Electronic linear zoom system

Controls

Control channels: 10,17,21,25,37,37+

Protocols: DMX512,Master slave,Sound Active,RDM Software upgrade: Upgrade the fimware via DMX link

Effect

It integrates powerful beam and dyeing functions with excellent color macro effect CTO: 2500K-8000K

Outstanding strobe effect with variable speed

Dimming/Strobe:

0%~100% variable dimming, multi-speed strobe effect

Construction

Pan movement: 540°

Tilt movement: 270°

Moving-head operated with either 16-bit resolution Automatic Pan/Tilt position correction

Display: LED 2.4G color screen + 4 touch buttons selection menu Data In/Out: 3-pin or 5-pin XLR

Power In/Out: Power Connector in/out Ingress protection: IP20

2 fixed folding hooks for 50mm truss, reserved for 70mm truss for removable lights The keyhole of the hook

Maximum number of connections: 230V, 50Hz: 11 units; 120V, 60Hz: 5 units

Weight&Dimension

Dimension:369x292x401mm

Weight:15.2Kgs

Package Size: 470x330x590mm
