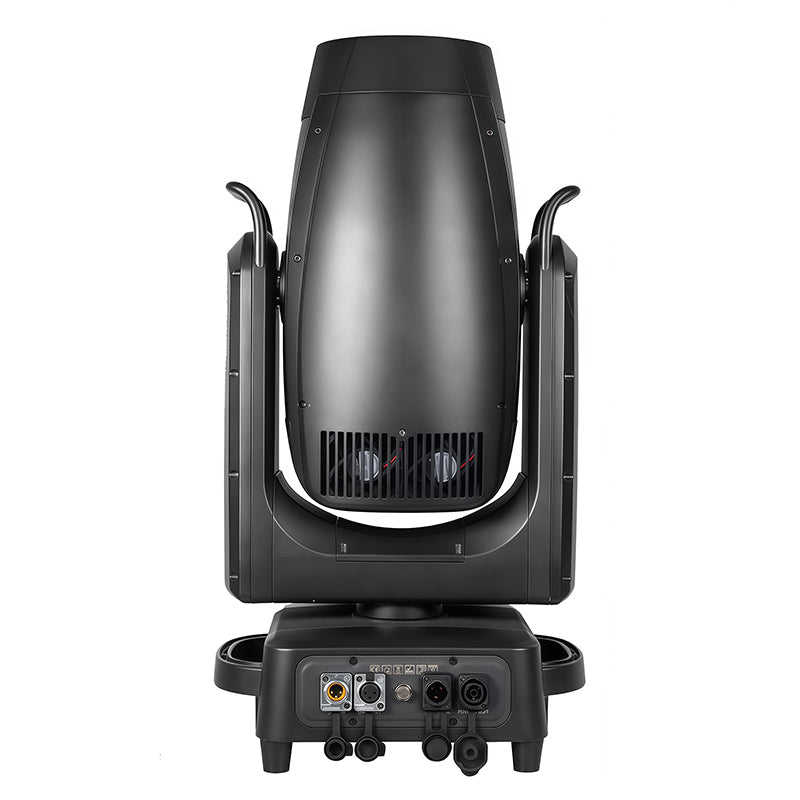

ALED BSW 600 CMY IP

TECHNICAL PARAMETERS

Light source

Input voltage: AC90V-240V/ 50Hz-60HZ

Light source specification: LED 600W module, 8000K

Light source life: 20000 hours

Rated power: 700W

Optical

Zoom angle: 3.5-50 degrees

Controls

Channel mode: 34/39CH

Display: 2.8-inch touch screen+ key operation, bilingual operating system, can reverse 180° display

Control signal: international standard DMX512. With RDM function, online software upgrade is available, dial address codes

Effect

Dimming system: 0-100% linear adjustment

Focusing system: linear adjustment from 4 meters to 50 meters

Frost system: 1 independent frost effect, soft and natural light spot

High-speed strobe: 0.5-20 times/second, adjustable

Color: 6 colors + white light

Effect tray: super dazzling simulation of dynamic flames, gurgling water and other dynamic effects

Color mixing system: linear CMY+CTO color mixing system

Fixed gobo: 7 fixed gobos + white light

Rotating gobo: 7 glass gobos+ white light, each glass gobo can be independently rotate forward and backward

Prism: standard 3 facet prisms and 4 facet prisms, each prism can be independently rotate forward and backward

Macro function: console reset function, self-propelled mode, master-slave mode

Construction

Pan/Tilt: 540°/270°,16 bit precision scan, electronic error correction

Material: The shell is made of high-end materials such as international die-cast aluminum and aviation die-cast magnesium alloy

Protection level: IP66

Weight&Dimension

Product size: 36*27*68cm

NW: 22kg
